EATON Residential Meter Breakers


Eaton residential meter breakers allow quick, simple and flexible installation and are used with BR- or CH-type branch circuit breaker styles. They are suitable for residential metering where utilities are deregulated and the electrical contractor supplies watt-hour meter sockets.

Filter
EATON MBP200BTSCRA
EATON CMBE24B125TSRB
EATON MBX816B150BTSC
EATON MB1212L200BTSD
EATON MB48P200BTSE
EATON MB48B200BTSGF
EATON MBB150BTSCRG
EATON MBB200BTSCRH
EATON CHMMB100BTSI
EATON MB24L125BTSJ

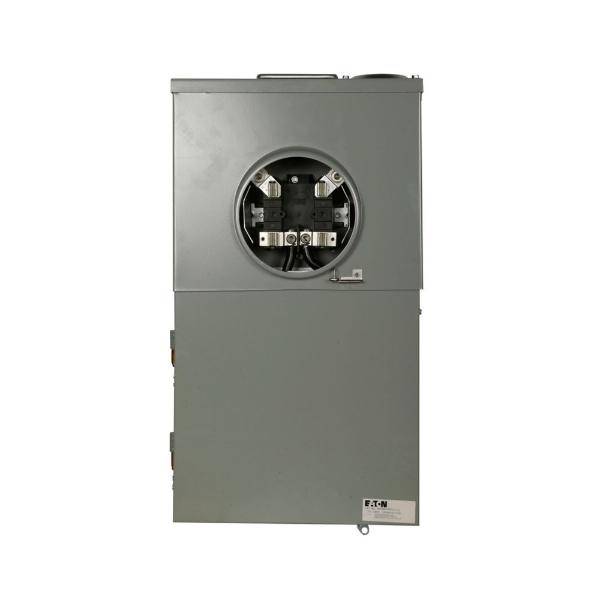

EATON MBT48B150BTSK
EATON MBT48B200BTSBLL
EATON MBT48B125BTSBLM
EATON MB1224B100BTSN
EATON MB48B150BTSGO
EATON MBT48B200TSAPP
EATON MBT48P200BTSQ
EATON MBT48B200BSAPR
EATON MBT48B200BTSS
EATON CMB1212L200BTST
EATON MBP200BTSDU
EATON MBB200BTSV
EATON MB1212L200BTSAW
EATON CMB1212L200BTSDX
EATON MBE1224B125BTSZY
EATON CHMMB200BTSZ
EATON CMBP200BTSA1
EATON CMBB200BTSB1
EATON MB48B200BTSC1
EATON CMB88B150BTSD1
EATON CMBB150BTSE1
EATON MBB200BTSGF1
EATON MBX2040B200BTSG1
EATON MB2040B200SDH1
EATON CMB2424B200BTSI1
EATON CMB1212B200BTSJ1
EATON MB2040B200BTSK1
EATON MB816P200BTSL1
EATON CMBX1212B200BTSM1
EATON MB2040P200BTSN1
EATON CMB1212P200BTSO1
EATON MB816B200BTSP1
EATON MB816B200BTSDQ1
EATON MB2040B200BTSBLR1
EATON MB816B200BTSBLS1
EATON CMBE24B200TSRT1
EATON CMBE22P125BTFRU1
EATON MBP200SDV1
StyleModelHeightTypeBus MaterialInterrupt RatingFeed TypeNo. Of JawsMain Circuit BreakerGroundPrice
A
MBP200BTSCR		6 1/2"Two Cover Compact DesignAluminum10 kAICTop/Bottom4Provisions#6 AWG to 350 kcmil€1,815.86
B

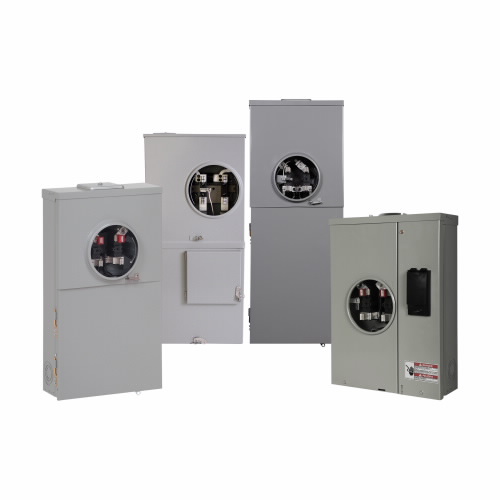

CMBE24B125TSR		6 1/2"Retrofit SolutionsAluminum35 kAICOverhead4CSR2125BM-€4,568.14
C

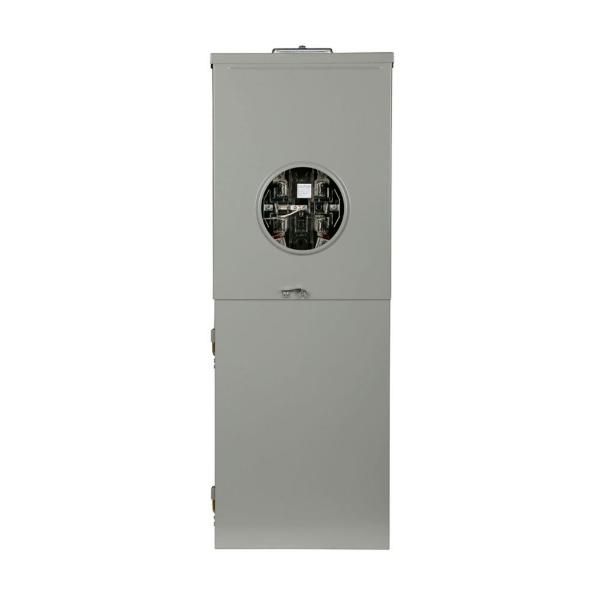

MBX816B150BTS		6 1/2"All In OnesAluminum22 kAICTop/Bottom4CSR#6 AWG to 350 kcmil€8,512.87
B
CMBE24B100TFR		6 1/2"Retrofit SolutionsAluminum35 kAICOverhead4CSR2100BM-€4,437.38
B
CMBE24B100TSR		6 1/2"Retrofit SolutionsAluminum35 kAICOverhead4CSR2100BM-€3,618.24
D
MB1212L200BTS		6 3/4"All In OnesAluminum10 kAICTop/Bottom4-#6 AWG to 350 kcmil€2,584.59
E
MB48P200BTS		6.3"All In OnesAluminum10 kAICTop/Bottom4Provisions#6 AWG to 350 kcmil€2,389.24
F
MB48B200BTSG		7"All In OnesAluminum10 kAICTop/Bottom4CSR#6 AWG to 350 kcmil-
RFQ
F
MBB150BTSG		15.7"Meter MainsAluminum22 kAICTop/Bottom4CSR2125#6 AWG to 350 kcmil-
RFQ
G
MBB150BTSCR		19 3/4"Two Cover Compact DesignAluminum22 kAICTop/Bottom4CSR2150#6 AWG to 250 kcmil€2,981.72
H

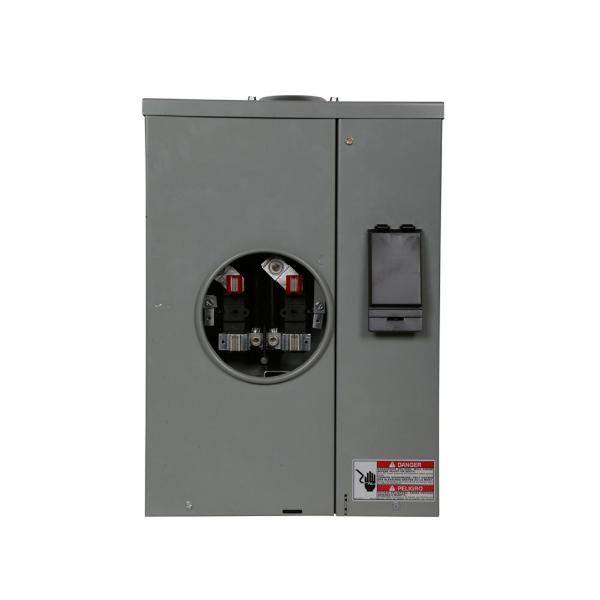

MBB200BTSCR		19 3/4"Two Cover Compact DesignAluminum10 kAICTop/Bottom4CSR2200#6 AWG to 250 kcmil€2,981.72
I
CHMMB100BTS		23.87"Meter MainsAluminum10 kAICTop/Bottom5Provisions--
RFQ
J
MB24L125BTS		23.87"All In OnesAluminum10 kAICTop/Bottom4-#6 AWG to 350 kcmil€1,778.56
F
MBT48B125BTS		25 1/2"All In OnesAluminum22 kAICTop/Bottom4CSR2150#6 AWG to 300 kcmil-
RFQ
K
MBT48B150BTS		25 1/2"All In OnesAluminum22 kAICTop/Bottom4CSR2150#6 AWG to 350 kcmil€2,961.40
L
MBT48B200BTSBL		25 1/2"All In OnesAluminum10 kAICTop/Bottom---€3,103.52
M
MBT48B125BTSBL		25 1/2"All In OnesAluminum22 kAICTop/Bottom---€4,730.51
N
MB1224B100BTS		25 1/2"All In OnesAluminum10 kAICTop/Bottom4BR2100#14 AWG to 2/0 AWG€2,129.15
O
MB48B150BTSG		25 1/2"All In OnesAluminum22 kAICTop/Bottom4CSR2150BM#6 AWG to 350 kcmil€2,841.01
P

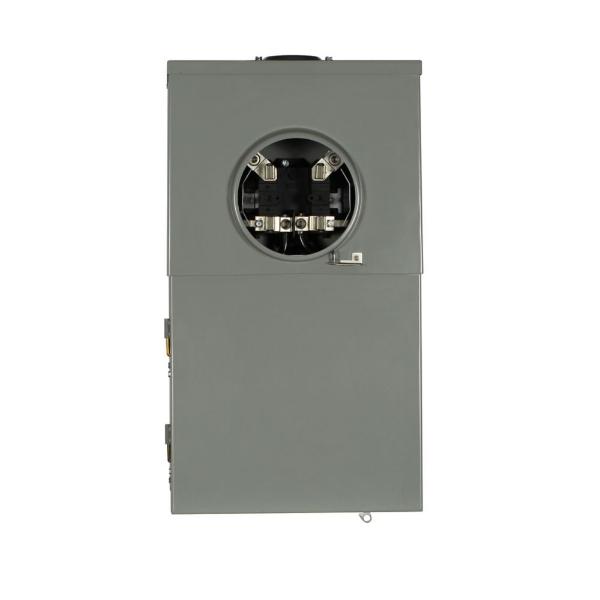

MBT48B200TSAP		25 1/2"All In OnesAluminum10 kAICOverhead4CSR2200#6 AWG to 350 kcmil€4,047.43
Q

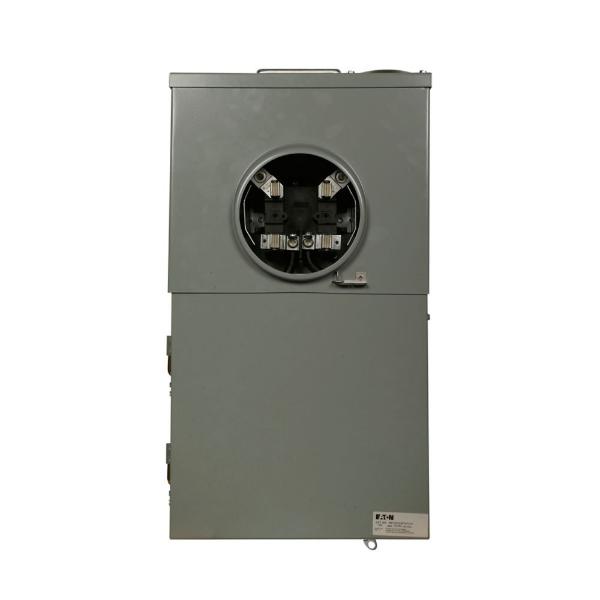

MBT48P200BTS		25 1/2"All In OnesAluminum10 kAICTop/Bottom4Provisions#6 AWG to 350 kcmil-
RFQ
R
MBT48B200BSAP		25 1/2"All In OnesAluminum10 kAICBottom4CSR2200#6 AWG to 350 kcmil€4,353.20
S
MBT48B200BTS		25 1/2"All In OnesAluminum10 kAICTop/Bottom4CSR2200#6 AWG to 350 kcmil€2,907.27
T

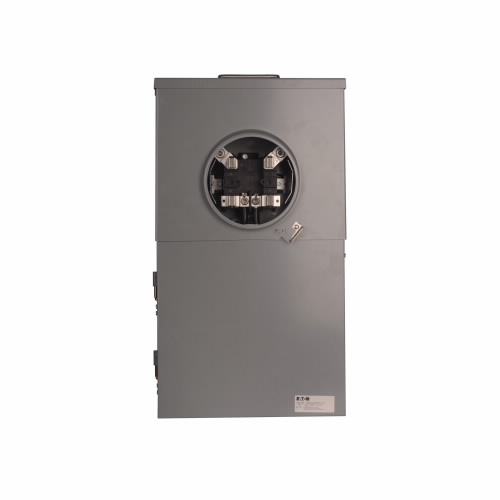

CMB1212L200BTS		25"All In OnesCopper10 kAICTop/Bottom4-#6 AWG to 350 kcmil€3,795.17
U
MBP200BTSD		25"Meter MainsAluminum10 kAICTop/Bottom5Provisions#6 AWG to 350 kcmil€2,882.81
V
MBB200BTS		25"Meter MainsAluminum10 kAICTop/Bottom4CSR2200#6 AWG to 350 kcmil€1,301.85
W
MB1212L200BTSA		25"All In OnesAluminum10 kAICTop/Bottom4-#6 AWG to 350 kcmil€5,553.17
A
MBP200BTS		25"Meter MainsAluminum10 kAICTop/Bottom4Provisions-€2,378.99
X

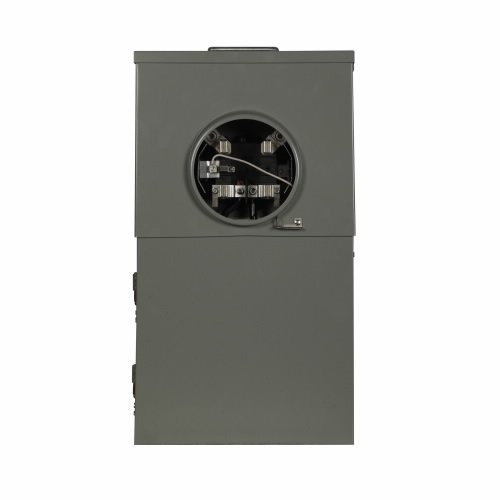

CMB1212L200BTSD		25"All In OnesAluminum10 kAICTop/Bottom5-#6 AWG to 350 kcmil€3,530.84
F
MBB150BTS		25"Meter MainsAluminum22 kAICTop/Bottom4CSR2125#6 AWG to 350 kcmil-
RFQ
Y
MBE1224B125BTSZ		27"BR-10 kAIC----€2,943.27
Z
CHMMB200BTS		28.37"Meter MainsAluminum10 kAICTop/Bottom5CSR2200-€2,496.48
Z
CHMMB150BTS		28.37"Meter MainsAluminum22 kAICTop/Bottom5CSR2150-€3,443.28
A1
CMBP200BTS		28.38"Meter MainsAluminum10 kAIC----€3,613.00
B1
CMBB200BTS		28.38"Meter MainsCopper10 kAIC----€2,700.80
C1
MB48B200BTS		28.38"All In OnesAluminum10 kAICTop/Bottom4CSR2200#6 AWG to 350 kcmil€2,206.61
D1

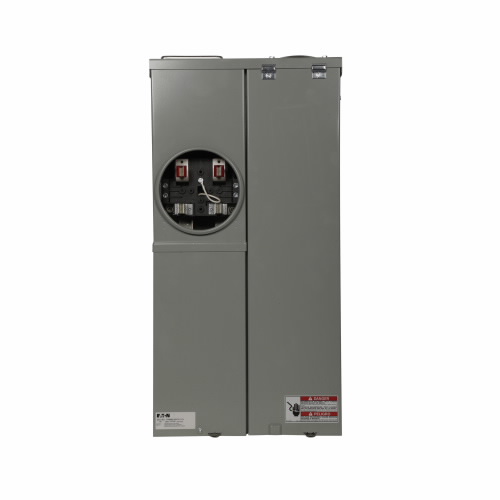

CMB88B150BTS		28.38"All In OnesCopper10 kAIC----€2,424.97
E1
CMBB150BTS		28.38"Meter MainsCopper10 kAIC----€3,429.15
F1
MBB200BTSG		30 3/4"Meter MainsAluminum10 kAICTop/Bottom4CSR2200#6 AWG to 350 kcmil€2,968.97
F
MBP200BTSG		30 3/4"Meter MainsAluminum10 kAICTop/Bottom4Provisions#6 AWG to 350 kcmil€2,641.21
G1

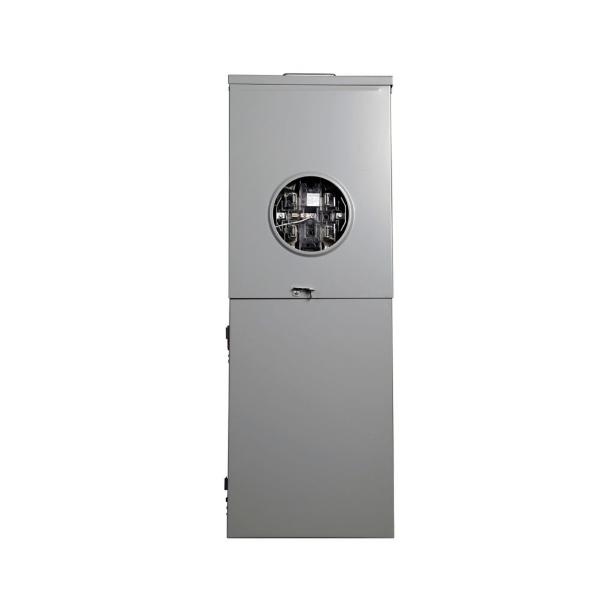

MBX2040B200BTS		32"All In OnesAluminum10 kAICTop/Bottom4CSR#6 AWG to 350 kcmil€5,625.06
H1
MB2040B200SD		32.35"All In OnesAluminum10 kAICTop/Bottom5CSR2200#6 AWG to 350 kcmil€6,043.45
I1

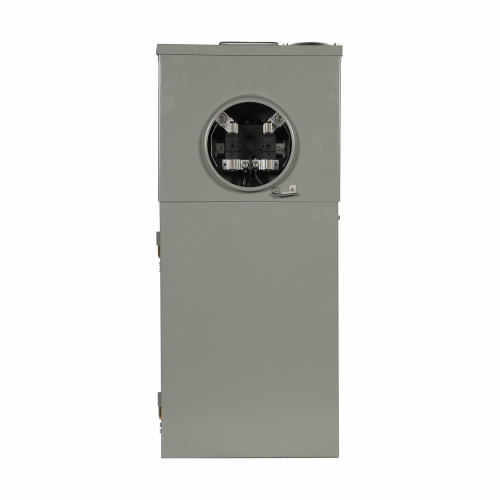

CMB2424B200BTS		32.38"All In OnesCopper10 kAICTop/Bottom4CSR2200#6 AWG to 350 kcmil€4,233.53
J1
CMB1212B200BTS		32.38"All In OnesCopper10 kAICTop/Bottom4CSR2200#6 AWG to 350 kcmil€4,380.02
K1
MB2040B200BTS		32.38"All In OnesAluminum10 kAICTop/Bottom4BW2200#6 AWG to 350 kcmil€3,449.10
L1

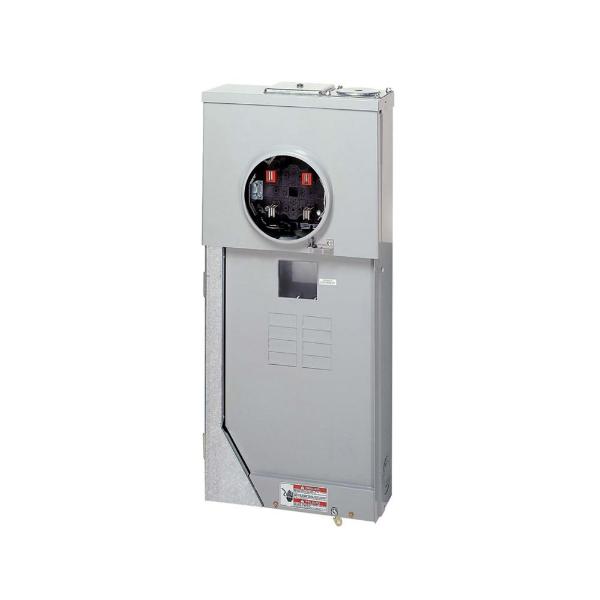

MB816P200BTS		32.38"All In OnesAluminum10 kAICTop/Bottom4Provisions#6 AWG to 350 kcmil€3,114.54
L1
MB816P200BTSD		32.38"All In OnesAluminum10 kAICTop/Bottom5Provisions#6 AWG to 350 kcmil€4,722.61
M1

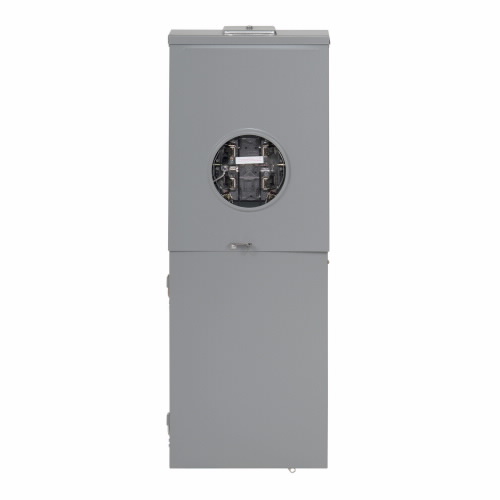

CMBX1212B200BTS		32.38"All In OnesCopper10 kAICTop/Bottom5CSR2200#6 AWG to 350 kcmil€8,933.21
N1
MB2040P200BTS		32.38"All In OnesAluminum-Top/Bottom4Provisions#6 AWG to 350 kcmil€3,271.59
O1

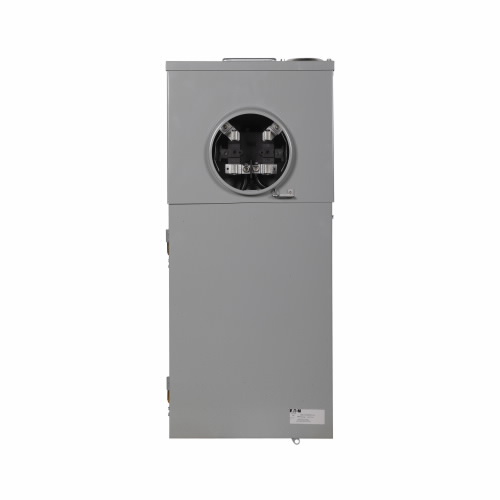

CMB1212P200BTS		32.38"All In OnesCopper10 kAICTop/Bottom4Provisions#6 AWG to 350 kcmil€3,722.38
P1

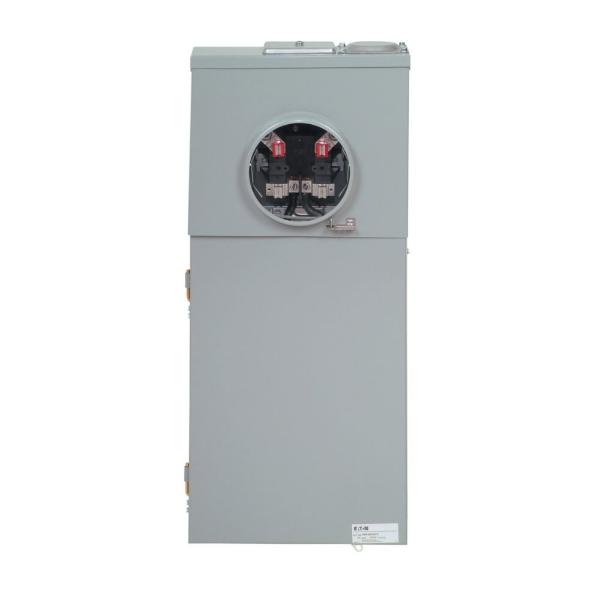

MB816B200BTS		32.38"All In OnesAluminum10 kAICTop/Bottom4CSR2200#6 AWG to 350 kcmil€5,438.96
Q1
MB816B200BTSD		32.38"All In OnesAluminum10 kAICTop/Bottom5BW2200#6 AWG to 350 kcmil€5,448.96
F
MB816B200BTSV		32.38"All In OnesAluminum10 kAICTop/Bottom4BW2200#6 AWG to 350 kcmil-
RFQ
R1
MB2040B200BTSBL		32.38"All In OnesAluminum10 kAICTop/Bottom---€4,412.76
S1
MB816B200BTSBL		32.38"All In OnesAluminum10 kAICTop/Bottom---€3,175.92
T1

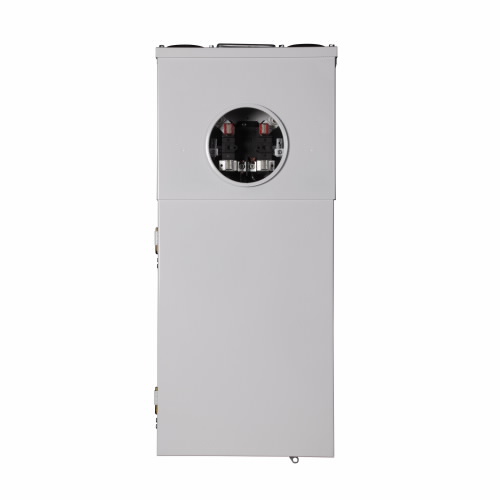

CMBE24B200TSR		34"Retrofit SolutionsAluminum10 kAICOverhead4CSR2200BM-€4,012.53
A1
CMB4242B200BTS		34.38"All In OnesCopper10 kAIC----€7,788.36
U1

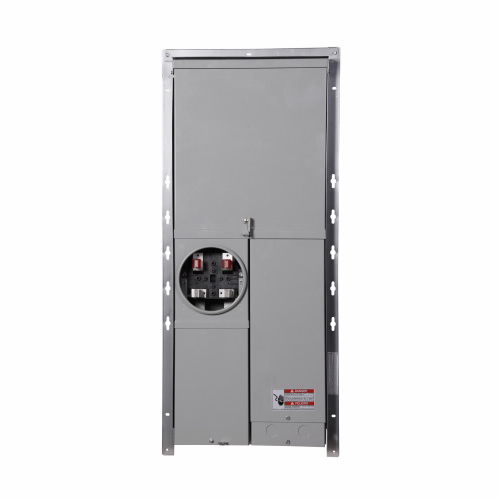

CMBE22P125BTFR		36.13"Retrofit SolutionsAluminum10 kAICTop/Bottom4Provisions-€3,861.33
V1
MBP200SD		36.63"Meter MainsAluminum10 kAICTop/Bottom5Provisions#6 AWG to 350 kcmil€2,161.92
J
MB2040P200SD		36.63"All In OnesAluminum10 kAICTop/Bottom5Provisions#6 AWG to 350 kcmil€4,445.40
H1
MB816B150STD		36.63"All In OnesAluminum22 kAICTop/Bottom5BW2150#6 AWG to 300 kcmil€5,829.06

Features

  • They come with a bus made of aluminium to resist corrosion on exposed surfaces.
  • These single-phase meter breakers have NEMA-3R enclosures to protect against harsh weather conditions.
  • Selected models feature a horn bypass for performing meter maintenance without interrupting the downstream occupant.

Standards and Approvals

  • UL

Frequently Asked Questions

What is the voltage rating of Eaton residential meter breakers?

120 / 240V.

What is the interrupt rating of these residential meter breakers?

10kAIC.
