EATON Molded Case Circuit Breakers

Ideal for protecting connected machinery & circuits against current overload occurrences. Selected models have a patented contact design for delivering high-speed blow-open action. Available in double & triple pole variants

Eaton Quicklag miniature circuit breakers are suitable for protection of sensitive electrical circuits in motor start controls and sub-main circuits. These units feature a thermal-magnetic trip unit with instantaneous and time-delayed current limiting functions and an integral over-centre toggle mechanism for visual indication of the tripped status. They have a plug-on mounting facility for reducing the installation and maintenance downtime. Choose from a wide range of these QBGF Series MCBs available in one and two pole variants on Raptor Supplies.

Eaton CA Series circuit breakers are designed for protection from short circuits and overcurrents. These units feature a thermal magnetic trip unit to provide both instantaneous and long-time current limiting protection. They are equipped with bolt-on mounting for smooth installation & repair and include terminals on load end for passing power to other devices along the circuit. The CA frame design allows an interrupting rating of 10kA @ 240V and a maximum current rating of 225A, ideal for reverse feed applications. These UL listed circuit breakers are available in 2 and 3 pole configurations on Raptor Supplies.

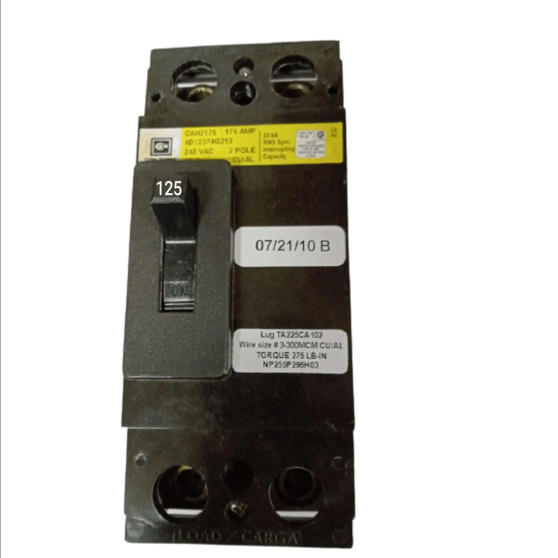

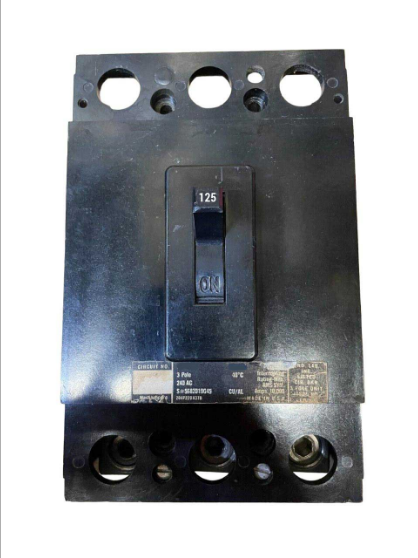

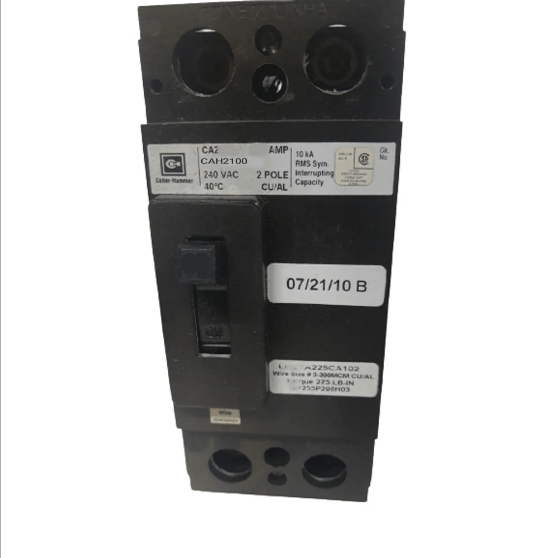

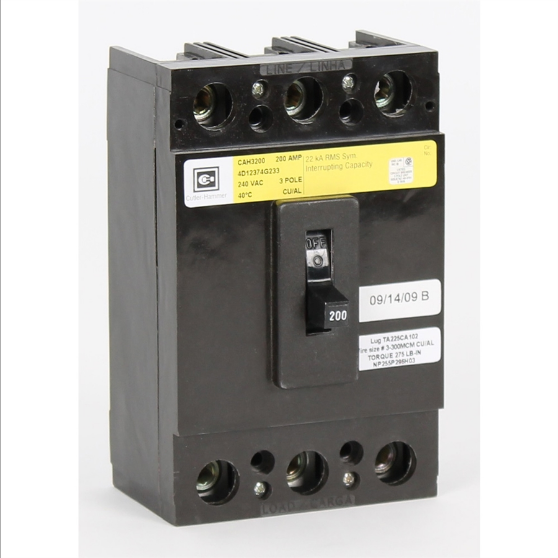

Eaton CAH Series circuit breakers are designed for protection from short circuit and overcurrent conditions. They have a thermal magnetic trip unit that offers both instantaneous and time-delayed current limiting protection, bolt-on mounting to ensure easy installation & repair, and load end terminals for passing power to devices along the circuit. The CA frame design provides an interrupting rating of 22kA @ 240V and current ratings up to 225A for reverse feed applications. These UL listed circuit breakers are available in 2 and 3 pole options on Raptor Supplies.

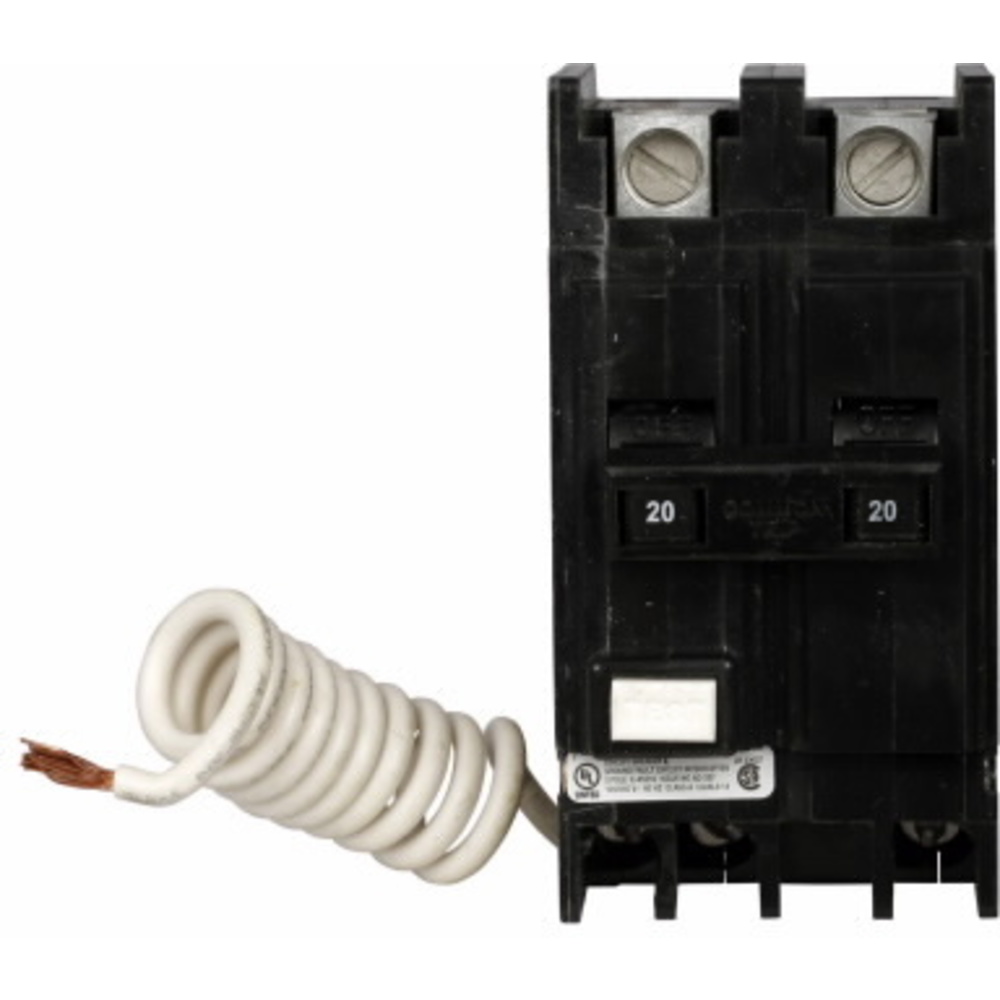

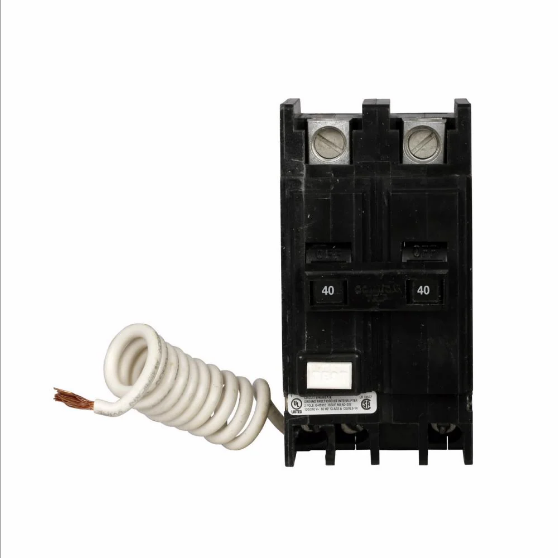

Eaton QCGF Series industrial circuit breakers are used in power distribution systems to open a circuit under short circuit or overload conditions; ideal for panelboards, switchboards, motor control centers, and busway applications. These miniature circuit breakers have QC, QCGFT or QCGFT1020 frame styles and feature feed-thru design for panelboard mounting with one end cable-in & other end cable-out configuration. They are also equipped with a toggle actuator to indicate tripping & allow manual tripping operation, in addition to line & load side lug terminals for accommodating aluminium or copper wires. These QCGF Series breakers are UL listed, CSA certified and HACR rated for ensuring safe operation and are available in 1 & 2 poles on Raptor Supplies.

Eaton CCH Series circuit breakers protect electrical circuits against current overloads and short circuits. These circuit breakers feature a thermal magnetic trip unit that provides both instantaneous and time-delayed current limiting protection and bolt-on mounting with line & load side lugs for hassle free installation. They have a maximum current interrupt rating of 100kA @ 240V. These circuit breakers are available in 2 and 3 pole configurations on Raptor Supplies.
