WEG Close-Coupled Pump Motors

Used to connect pump impellers directly to the motor shaft with power ratings up to 100 hp and an efficiency of 95%. Available in ODP / TENV enclosures and feature Class F insulation and NPT threaded terminal box

Filter

WEG -

Three Phase Close Coupled Pump Motors, TEFC

Style	Model	Voltage	Frame	Service Factor	Hp	Amps	Efficiency	L. R. Amps	Output Hp	Price
A	02012ET3E286JP-W22	208-230/460/380V AC	284JP	1	-	24.2/48.4-53.5A	50%	150/300-332A	20 hp	€5,745.04
A	00712ET3E254JP-W22	208-230/460V	254JP	1.25	7 1/2 hp	9.48/19-21A	50%	64.5/129-143A	7 1/2 hp	€2,884.28
B	00312ET3E213JP-W22	208-230/460V	215JP	1	-	4.93A	50%	33.5A	3 hp	€1,728.77
C	01512ET3E284JP-W22	208-230/460V	284JP	1	-	20.2A	50%	117A	15 hp	€4,591.73
D	06012ET3E404JP-W22	208/230/460V AC	405JP	1.25	60 hp	69.5/139A	50%	525A	60 hp	€14,255.50
E	00318ET3E182JP-S	208/230/460V AC	184JP	1.15	-	4.32A	89.5%	34.6A	3 hp	€1,241.99
F	00212ET3E184JP-W22	208/230/460V AC	182JP	1.25	-	3.22/6.44A	50%	25.4A	2 hp	€1,240.80
G	00236ET3E145JM-S	208/230/460V AC	145JM	1.15	-	2.47/4.94A	85.5%	24.4A	2 hp	€814.87
H	00218ET3E145JP-S	208/230/460V AC	143JP	1.15	-	2.72/5.44A	86.5%	22.3/44.6A	2 hp	€856.62
I	01012ET3E256JP-S	208/230/460V AC	254JP	1.15	-	13.8/27.6A	91%	78.1A	10 hp, 7 1/2 hp	€3,587.14
G	00118ET3E143JM-S	208/230/460V AC	145JM	1.15	1 hp	1.47/2.94A	85.5%	12.6/25.3A	1 hp	€731.35
A	02512ET3E324JP-W22	208/230/460V AC	326JP	1.25	25 hp	30.8/61.6A	50%	191/382A	25 hp	€6,841.36
I	01518ET3E254JP-S	208/230/460V AC	254JP	1.15	-	18.2/36.4A	92.4%	118/237A	15 hp	€3,066.92
H	00112ET3E145JP-S	208/230/460V AC	143JP	1.15	-	1.58/3.16A	82.5%	9.16/18.3A	1 hp	€851.86
I	01536ET3E254JP-S	208/230/460V AC	254JP	1.15	-	17.4/34.8A	91%	118/237A	15 hp, 12 1/2 hp	€3,039.19
I	00712ET3E254JP-S	208/230/460V AC	256JP	1.15	7 1/2 hp	9.98/20A	-	57.6A	-	€2,884.28
A	03012ET3E326JP-W22	208/230/460V AC	324JP	1.25	30 hp	36.2/72.4A	50%	225/449A	30 hp	€7,663.88
J	00536ET3E184JM-S	208/230/460V AC	184JM	1.15	5 hp	5.9/11.8A	88.5%	46/92A	5 hp	€1,282.55
F	00152ET3E182JP-W22	208/230/460V AC	184JP	1.25	1 1/2 hp	2.54/5.08A	50%	19.8/39.6A	1 1/2 hp	€1,102.39
K	00512ET3E215JP-W22	208/230/460V AC	213JP	1.25	-	6.83/13.7A	50%	49.7A	5 hp	€2,082.00
L	05012ET3E365JM-W22	208/230/460V AC	365JM	1.25	50 hp	57.4/115A	50%	400A	50 hp	€12,086.92
M	01536EP3E254JM-W22	208/230/460V AC	254JM	1.25	15 hp	17.4/34.8A	50%	108/216A	-	€2,345.57
J	00518ET3E184JM-S	208/230/460V AC	184JM	1.15	5 hp	6.49/13A	89.5%	45.4/90.9A	5 hp	€1,361.31
N	00712ET3E254JM-S	208/230/460V AC	254JM	1.15	7 1/2 hp	9.98/20A	91%	53.9/108A	7 1/2 hp	€2,838.04
D	04012ET3E364JP-W22	208/230/460V AC	365JP	1.25	40 hp	46.5/93A	50%	298/595A	40 hp	€10,617.16

WEG -

Jm Tefc Three Phase Close Coupled Pump Motors

Style	Model	Voltage	Service Factor	Hp	Shaft Dia.	Motor Application	Motor Design	Frame Material	Duty Cycle	Price
A	06036ET3E326JM-W22	208-230/460V	1	60 hp	1 1/4"	Pump	3 Phase	Cast Iron	Continuous	€12,083.05
A	00736ET3E184JM-W22	208-230/460V AC	1.25	7 1/2 hp	7/8"	Pump	3 Phase	Cast Iron	S1	€1,566.54
B	05036ET3E326JM-W22	208-230/460V AC	1.25	50 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€11,238.13
B	07518ET3E365JM-W22	208-230/460V AC	1.25	75 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€16,376.76
B	04018ET3E324JM-W22	208-230/460V AC	1.25	40 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€8,428.37
B	04036ET3E324JM-W22	208-230/460V AC	1.25	40 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€9,049.33
B	03018ET3E286JM-W22	208-230/460V AC	1.25	30 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€6,326.39
B	03036ET3E286JM-W22	208-230/460V AC	1.25	30 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€7,062.81
B	02518ET3E284JM-W22	208-230/460V AC	1.25	25 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€4,785.80
B	00118ET3E143JM-W22	208-230/460V AC	1.25	1 hp	7/8"	Pump	3-Phase	Cast Iron	S1	€972.10
B	00156ET3E143JM-W22	208-230/460V AC	1.25	1 1/2 hp	7/8"	Pump	3-Phase	Cast Iron	S1	€1,104.40
C	00218ET3E145JM-W22	208-230/460V AC	1.25	2 hp	7/8"	Close Coupled Pump	-	Cast Iron	S1	€965.90

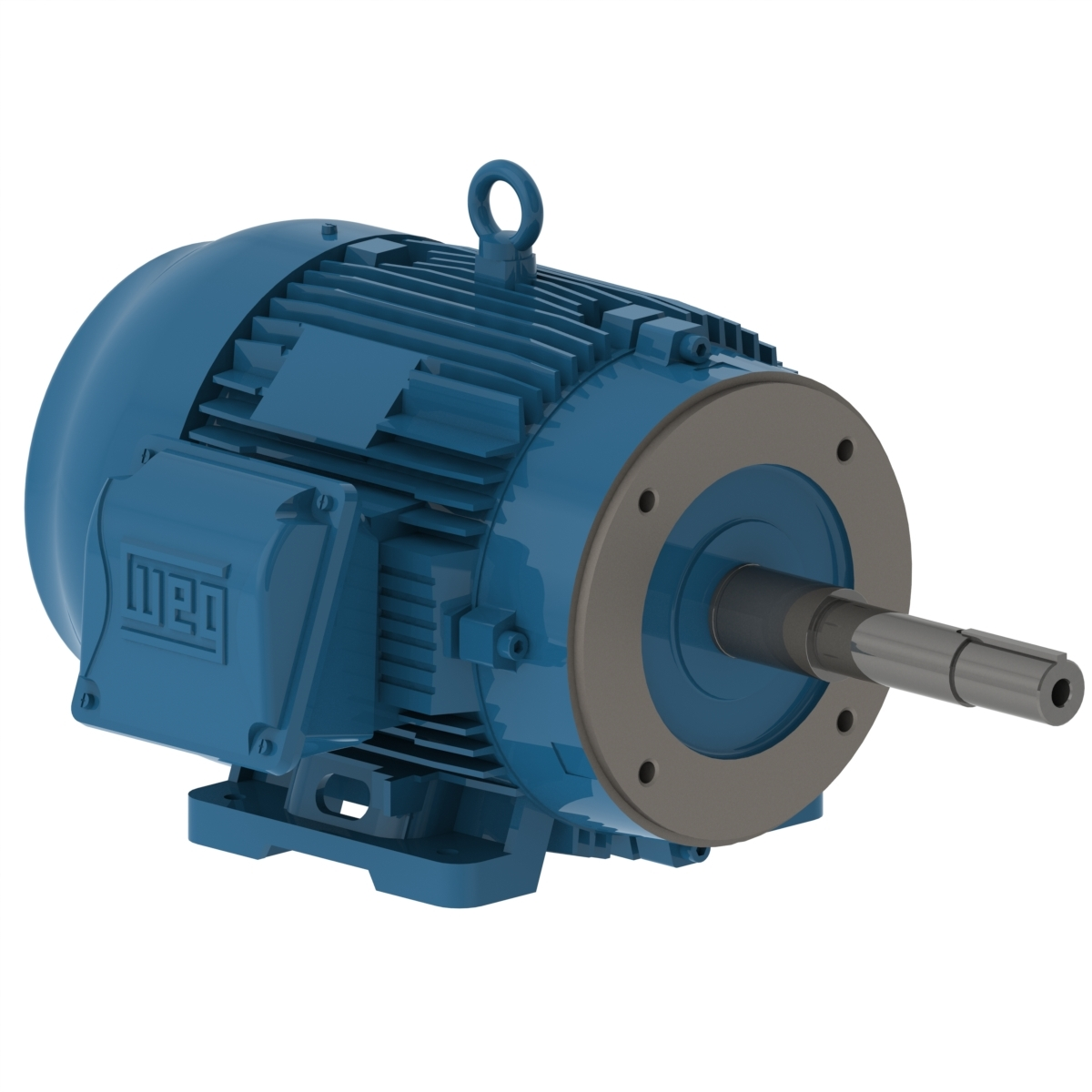

B	00718ET3E213JM-W22	208-230/460V AC	1.25	7 1/2 hp	7/8"	Pump	3-Phase	Cast Iron	S1	€1,993.21
B	01018ET3E215JM-W22	208-230/460V AC	1.25	10 hp	7/8"	Pump	3-Phase	Cast Iron	S1	€2,330.42
B	01536ET3E254JM-W22	208-230/460V AC	1.25	15 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€3,601.63
B	01518ET3E254JM-W22	208-230/460V AC	1.25	15 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€3,414.79
B	02036ET3E256JM-W22	208-230/460V AC	1.25	20 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€3,807.28
A	04036ET3E286JM-W22	208-230/460V AC	1	40 hp	1 1/4"	Pump	3 Phase	Cast Iron	S1	€8,630.63
B	05018ET3E326JM-W22	208-230/460V AC	1	50 hp	1 1/4"	Pump	3-Phase	Cast Iron	Continuous	€8,192.93
B	02536ET3E284JM-W22	208-230/460V AC	1.25	25 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€5,972.65
B	00536ET3E184JM-W22	208-230/460V AC	1	5 hp	7/8"	Pump	3-Phase	Cast Iron	Continuous	€1,360.15
B	07536ET3E365JM-W22	208-230/460V AC	1.25	75 hp	1 1/4"	Pump	3-Phase	Cast Iron	S1	€18,198.12
A	01536ET3E215JM-W22	208-230/460V AC	1.25	15 hp	7/8"	Pump	3 Phase	Cast Iron	S1	€2,541.08
A	00336ET3E145JM-W22	208-230/460V AC	1.25	3 hp	7/8"	Pump	3 Phase	Cast Iron	S1	€941.57
C	00158ET3E145JM-W22	208-230/460V AC	1.25	1 1/2 hp	7/8"	-	-	Cast Iron	S1	€855.86

WEG -

JM Type Close Coupled Pump Motors

Style	Model	Voltage	Duty Cycle	No. Of Poles	No Load Amps	Synchronous Speed	Output Rating	Mounting	Moment Of Inertia	Price

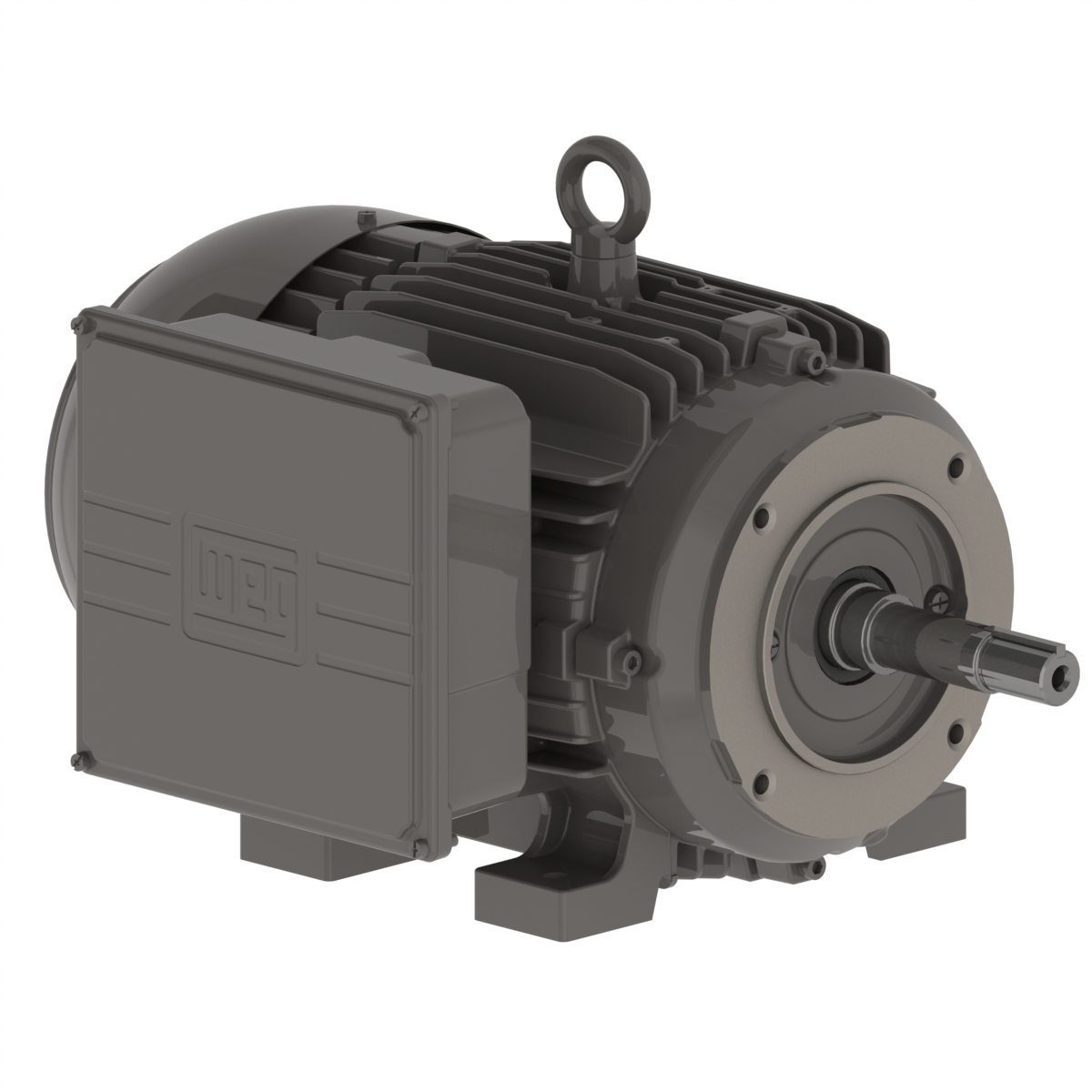

A	00536ES1B184JM-W22	115/208-230V AC	S1	2	16.8/0-8.6A	3600 RPM	5 hp	Foot Mounted	0.1898 lbs.-sq. ft.	€1,738.33
B	00336ES1E145JM-W22	208-230/460V AC	S1	2	2.5-2.9/1.45A	3600 RPM	3 hp	Foot Mounted	0.0664 lbs.-sq. ft.	€1,283.76
C	00736ES1E213JM-W22	208-230/460V AC	Continuous	2	5.69-6.6/3.3A	3600 RPM	7 1/2 hp	Foot Mounted	0.555 lbs.-sq. ft.	€1,908.89
B	00236ES1E145JM-W22	208-230/460V AC	Continuous	2	2.93-3.4/1.7A	3600 RPM	2 hp	Foot Mounted	0.0527 lbs.-sq. ft.	€918.66
C	00718ES1E215JM-W22	208-230/460V AC	S1	4	8.97-10.4/5.2A	1800 RPM	7 1/2 hp	Foot Mounted	1.09 lbs.-sq. ft.	€2,036.93
D	01036ES1E215JM-W22	208-230/460V AC	S1	2	5.95-6.9/3.45A	3600 RPM	10 hp	Foot Mounted	0.5285 lbs.-sq. ft.	€2,510.90
C	01036ES1C215JM-W22	208-230V AC	S1	2	5.95-6.9A	3600 RPM	10 hp	Foot Mounted	0.5285 lbs.-sq. ft.	€2,510.90

WEG -

JP Type Close Coupled Pump Motors

Style	Model	Voltage	Motor Enclosure Design	Service Factor	Max. Ambient Temp.	Duty Cycle	No Load Amps	Output Rating	Mounting	Price
A	10036OT3V365JPV-W40	200/400V AC	Open Dripproof	1.15	-20°C to +40°C	S1	69/34.5A	100 hp	Footless	€8,235.46
B	00736ES1C213JP-W22	208-230V AC	Totally Enclosed Fan Cooled	1.15	-20°C to +40°C	S1	5.69-6.6A	7 1/2 hp	Foot Mounted	€1,908.89
C	02036EP3H254JP-W22	575V	Totally Enclosed Fan Cooled	1	40°C	Continuous	4.16A	-	-	€3,909.80

WEG -

Jp Tefc Three Phase Close Coupled Pump Motors

Style	Model	Voltage	Service Factor	Hp	Motor Design	Shaft Dia.	Max. Ambient Temp.	Frame Material	Duty Cycle	Price
A	00536ET3E184JP-W22	208-230/460V	1	5 hp	3-Phase	7/8"	40°C	Cast Iron	Continuous	€1,363.62
A	00118ET3E143JP-W22	208-230/460V AC	1.25	1 hp	3-Phase	7/8"	40°C	Cast Iron	S1	€811.98
A	06018ET3E364JP-W22	208-230/460V AC	1.25	60 hp	3-Phase	1 5/8"	40°C	Cast Iron	S1	€16,523.15
A	04036ET3E324JP-W22	208-230/460V AC	1	40 hp	3-Phase	1 1/4"	40°C	Cast Iron	Continuous	€9,114.75
A	04018ET3E324JP-W22	208-230/460V AC	1	40 hp	3-Phase	1 1/4"	40°C	Cast Iron	Continuous	€8,495.85
A	05036ET3E326JP-W22	208-230/460V AC	1.25	50 hp	3-Phase	1 1/4"	40°C	Cast Iron	S1	€10,362.68
A	05018ET3E326JP-W22	208-230/460V AC	1.25	50 hp	3-Phase	1 1/4"	40°C	Cast Iron	S1	€10,199.72
A	06036ET3E364JP-W22	208-230/460V AC	1.25	60 hp	3-Phase	1 5/8"	40°C	Cast Iron	S1	€15,980.30
A	00156ET3E143JP-W22	208-230/460V AC	1.25	1 1/2 hp	3-Phase	7/8"	40°C	Cast Iron	S1	€1,062.51
A	07536ET3E365JP-W22	208-230/460V AC	1.25	75 hp	3-Phase	1 5/8"	40°C	Cast Iron	S1	€17,897.41
A	03036ET3E286JP-W22	208-230/460V AC	1.25	30 hp	3-Phase	1 1/4"	40°C	Cast Iron	S1	€7,114.99
A	10036ET3G405JP-W22	208-230/460V AC	1	100 hp	3-Phase	1 5/8"	40°C	Cast Iron	S1	€22,650.67
A	10018ET3E405JP-W22	208-230/460V AC	1.25	100 hp	3-Phase	1 5/8"	40°C	Cast Iron	S1	€19,889.55
A	10018ET3G405JP-W22	208-230/460V AC	1.25	100 hp	3-Phase	1 5/8"	40°C	Cast Iron	S1	€19,889.55
B	00736ET3E184JP-W22	208-230/460V AC	1.25	7 1/2 hp	3 Phase	7/8"	40°C	Cast Iron	S1	€1,631.83
B	00336ET3E145JP-W22	208-230/460V AC	1.25	3 hp	3 Phase	7/8"	40°C	Cast Iron	S1	€1,127.60
A	03018ET3E286JP-W22	208-230/460V AC	1	30 hp	3-Phase	1 1/4"	40°C	Cast Iron	Continuous	€6,375.79
A	07518ET3E365JP-W22	208-230/460V AC	1.25	75 hp	3-Phase	1 5/8"	40°C	Cast Iron	S1	€16,500.63
A	02518ET3E284JP-W22	208-230/460V AC	1.25	25 hp	3-Phase	1 1/4"	40°C	Cast Iron	S1	€5,883.67
A	00518ET3E184JP-W22	208-230/460V AC	1.25	5 hp	3-Phase	7/8"	40°C	Cast Iron	S1	€1,505.74
A	00158ET3E145JP-W22	208-230/460V AC	1.25	1 1/2 hp	3-Phase	7/8"	40°C	Cast Iron	S1	€1,075.03
A	02536ET3E284JP-W22	208-230/460V AC	1.25	25 hp	3-Phase	-	40°C	Cast Iron	S1	€6,014.41
A	00236ET3E145JP-W22	208-230/460V AC	1.25	2 hp	3-Phase	7/8"	40°C	Cast Iron	S1	€1,130.55
A	00218ET3E145JP-W22	208-230/460V AC	1.25	2 hp	3-Phase	7/8"	40°C	Cast Iron	S1	€1,177.78
A	00336ET3E182JP-W22	208-230/460V AC	1	3 hp	3-Phase	7/8"	40°C	Cast Iron	Continuous	€1,487.28

WEG -

Jp ODP Three Phase Close Coupled Pump Motors

Style	Model	Voltage	Hp	Shaft Dia.	Motor Application	Frame Material	Duty Cycle	Overall Length	Efficiency	Price
A	01018OT3E215JP-S	208-230/460V AC	10 hp	1 1/4"	Pump	Rolled Steel	S1	21 9/16"	91.7%	€1,843.54
A	01536OT3E215JP-S	208-230/460V AC	15 hp	1 1/4"	Pump	Rolled Steel	S1	22 3/4"	90.2%	€2,212.26
B	02536OT3E256JP-S	208-230/460V AC	25 hp	1 1/4"	Close Coupled Pump	Rolled Steel	S1	24 13/16"	91.7%	€4,174.34
C	02036OT3E254JP-S	208-230/460V AC	20 hp	1 1/4"	Pump	Rolled Steel	S1	24 13/16"	91%	€2,775.87
A	00718OT3E213JP-S	208-230/460V AC	7 1/2 hp	1 1/4"	Pump	Rolled Steel	S1	21 9/16"	91%	€1,837.59
A	00518OT3E184JP-S	208-230/460V AC	5 hp	7/8"	Pump	Rolled Steel	S1	20 7/8"	89.5%	€1,119.75
A	00158OT3E145JP-S	208-230/460V AC	1 1/2 hp	7/8"	Pump	Rolled Steel	S1	17 15/16"	86.5%	€896.50
A	00156OT3E143JP-S	208-230/460V AC	1 1/2 hp	7/8"	Pump	Rolled Steel	S1	16 3/4"	84%	€866.98
D	00736OT3E184JP-S	208-230/460V AC	7 1/2 hp	7/8"	Pump	Steel	Continuous	19 3/4"	88.5%	€1,740.53
D	00536OT3E182JP-S	208-230/460V AC	5 hp	7/8"	Pump	Rolled Steel	S1	19 5/16"	86.5%	€1,291.51
D	00336OT3E145JP-S	208-230/460V AC	3 hp	7/8"	Pump	Rolled Steel	S1	17 9/16"	85.5%	€1,058.19
E	00318OT3E182JP-S	208-230/460V AC	3 hp	7/8"	Close Coupled Pump	Steel	Continuous	19 3/4"	89.5%	€1,085.89
D	00236OT3E145JP-S	208-230/460V AC	2 hp	7/8"	Pump	Rolled Steel	S1	17 3/16"	85.5%	€1,025.80
D	00218OT3E145JP-S	208-230/460V AC	2 hp	7/8"	Pump	Rolled Steel	S1	17 15/16"	86.5%	€800.20
B	01518OT3E254JP-S	208-230/460V AC	15 hp	1 1/4"	Close Coupled Pump	Rolled Steel	S1	24 13/16"	93%	€2,670.71
D	00118OT3E143JP-S	208-230/460V AC	1 hp	7/8"	Pump	Rolled Steel	S1	16 3/4"	85.5%	€794.27
D	01036OT3E213JP-S	230/460V	10 hp	1 1/4"	Pump	Steel	Continuous	22"	89.5%	€2,096.38
C	02018OT3E256JP-S	230/460V	20 hp	1 1/4"	Pump	Steel	Continuous	24 13/16"	93%	€3,223.79

WEG -

Jm ODP Single Phase Close Coupled Pump Motors

Style	Model	Voltage	Hp	Duty Cycle	No Load Amps	Output Rating	Mounting	Lrc	L. R. Amps	Price
A	00736OS1C213JM	208-230V AC	7 1/2 hp	S1	0-8A	7 1/2 hp	Foot Mounted	8.0X(Code H)	256-241A	€1,822.82
B	01036OS1C215JM	208-230V AC	10 hp	Continuous	0-10.5A	10 hp	Foot Mounted	6.0X(Code G)	276-252A	€2,389.50

WEG -

Jm ODP Three Phase Footless, Vertical Close Coupled Pump Motors

Style	Model	Voltage	Hp	No Load Amps	Output Rating	Mounting	Moment Of Inertia	Lrc	L. R. Amps	Price
A	02536OT3V256JMV-S	200/400V AC	25 hp	26.2/13.1A	25 hp	Footless	0.9155 lbs.-sq. ft.	6.3X(Code G)	422/211A	€3,116.65
A	02036OT3V254JMV-S	200/400V AC	-	19.6/9.78A	20 hp	Footless	0.7848 lbs.-sq. ft.	6.0X(Code G)	328/164A	€2,549.04
A	02036OT3E254JMV-S	230/460V AC	20 hp	17/8.5A	20 hp	Footless	0.7848 lbs.-sq. ft.	6.0X(Code G)	286/143A	€2,549.04
A	02536OT3H256JMV-S	575V AC	25 hp	9.12A	25 hp	Footless	0.9155 lbs.-sq. ft.	6.3X(Code G)	147A	€3,116.65
A	02036OT3H254JMV-S	575V AC	20 hp	6.8A	20 hp	Footless	0.7848 lbs.-sq. ft.	6.0X(Code G)	114A	€2,549.04

WEG -

Jp ODP Three Phase Footless, Vertical Close Coupled Pump Motors

Style	Model	Voltage	Hp	Duty Cycle	No. Of Poles	No Load Amps	Synchronous Speed	Output Rating	Mounting	Price
A	02036OT3V254JPV-S	200/400V AC	20 hp	S1	2	19.6/9.78A	3600 RPM	20 hp	Footless	€2,547.87
B	01518OT3V254JPV-S	200/400V AC	15 hp	Continuous	4	21.9/10.9A	1800 RPM	15 hp	Footless	€2,419.56
A	02536OT3V256JPV-S	200/400V AC	25 hp	S1	2	26.2/13.1A	3600 RPM	25 hp	Footless	€3,117.81
A	01012OT3E256JPV-S	230/460V AC	-	S1	6	14.7/7.33A	1200 RPM	10 hp	Footless	€2,769.83
A	02536OT3E256JPV-S	230/460V AC	25 hp	S1	2	22.8/11.4A	3600 RPM	25 hp	Footless	€3,117.81
A	02018OT3E256JPV-S	230/460V AC	-	S1	4	22.9/11.4A	1800 RPM	20 hp	Footless	€2,982.54
B	02036OT3E254JPV-S	230/460V AC	-	S1	2	17/8.5A	3600 RPM	20 hp	Footless	€2,547.87
A	02536OT3H256JPV-S	575V AC	25 hp	S1	2	9.12A	3600 RPM	25 hp	Footless	€3,117.81
A	02036OT3H254JPV-S	575V AC	20 hp	S1	2	6.8A	3600 RPM	20 hp	Footless	€2,547.87

WEG -

Three Phase Close Coupled Pump Motors, ODP

Style	Model	Voltage	Frame	Service Factor	Hp	No. Of Poles	No Load Amps	Efficiency	Output Hp	Price
A	01036OP3V213JP	200/400V	213JP	1	-	2	5.75/11.5A	50%	10 hp	-	RFQ
A	00536OP3V182JP	200/400V	182JP	1	-	2	2.65/5.29A	50%	5 hp	-	RFQ
B	01536OP3V215JPV	200/400V	215JP	1	15 hp	2	6.56/13.1A	50%	-	-	RFQ
B	01036OP3V213JPV	200/400V	215JP	1	-	2	5.75/11.5A	50%	10 hp	-	RFQ
A	01536OP3V215JP	200/400V	215JP	1	-	2	6.56/13.1A	50%	15 hp	-	RFQ
B	00736OP3V184JPV	200/400V	184JP	1	7 1/2 hp	2	3.57/7.13A	50%	7 1/2 hp	-	RFQ
A	00736OP3V184JP	200/400V	184JP	1	7 1/2 hp	2	3.57/7.13A	50%	7 1/2 hp	-	RFQ
C	00336OT3V145JM-S	200/400V AC	145JM	1.15	-	2	1.49/2.99A	85.5%	3 hp	€787.44
C	00236OT3V145JM-S	200/400V AC	143JM	1.15	-	2	1.05/2.11A	85.5%	2 hp	€691.98
D	00536OT3V182JM-S	200/400V AC	182JM	1.15	-	2	3.57/7.13A	86.5%	5 hp	€930.60
A	00718OT3V213JP	200/400V AC	213JP	-	7 1/2 hp	-	-	-	-	-	RFQ
D	00318OT3V182JM-S	200/400V AC	184JM	1.15	-	4	2.38/4.76A	89.5%	3 hp	€793.40
E	01018OT3V215JP-S	200/400V AC	215JP	1.15	-	4	6.89/13.8A	91.7%	10 hp	€1,629.75
E	00718OT3V213JP-S	200/400V AC	213JP	1.15	7 1/2 hp	4	5.05/10.1A	91%	7 1/2 hp	€1,336.24
A	00152OT3E182JP	208-230/460V	182JP	-	1 1/2 hp	-	-	-	-	-	RFQ
A	00158OT3E145JP	208-230/460V	145JP	-	1 1/2 hp	-	-	-	-	-	RFQ
A	00112OT3E145JP	208-230/460V	143JP	-	1 hp	-	-	-	-	-	RFQ
F	00112OT3E145JM	208-230/460V	145JM	-	1 hp	-	-	-	-	-	RFQ
F	00518OT3E184JM	208-230/460V	184JM	1	5 hp	4	3/6A	50%	5 hp	-	RFQ
F	00318OT3E182JM	208-230/460V	182JM	1	3 hp	4	2.37/4.74A	50%	3 hp	-	RFQ
A	00118OT3E143JP	208-230/460V	145JP	-	1 hp	-	-	-	-	-	RFQ
A	00312OT3E213JP	208-230/460V	215JP	-	3 hp	-	-	-	-	-	RFQ
A	00218OT3E145JP	208-230/460V	145JP	-	2 hp	-	-	-	-	-	RFQ
A	00536OT3E182JP	208-230/460V	-	-	5 hp	-	-	-	-	-	RFQ
A	00518OT3E184JP	208-230/460V	184JP	-	5 hp	-	-	-	-	-	RFQ

WEG -

Open Dripproof 3-Phase Close-Coupled Pump Motors

Style	Model	Voltage	Hp	Motor Design	Shaft Dia.	Service Factor	Motor Application	Frame	Duty Cycle	Price
A	07536OT3E364JM-W40	230/460V	75 hp	3 Phase	1 1/4"	1.15	Pump	-	S1	€12,792.75
B	03036OT3E284JP-W40	230/460V	30 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€6,928.05
C	01518OT3E254JM-W40	230/460V	15 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€3,987.93
B	10036OT3E365JP-W40	230/460V	100 hp	3-Phase	1 5/8"	1.15	Pump	-	S1	€14,198.57
B	07518OT3E365JP-W40	230/460V	75 hp	3 Phase	1 5/8"	1.25	Pump	-	Continuous	€12,843.46
B	07536OT3E364JP-W40	230/460V	75 hp	3 Phase	1 5/8"	1.15	Pump	-	S1	€13,395.77
B	06018OT3E364JP-W40	230/460V	60 hp	3 Phase	1 5/8"	1.15	Pump	-	S1	€11,253.32
A	10018OT3E404JM-W40	230/460V	100 hp	3-Phase	1 1/4"	1.15	Pump	404/5JM	S1	€17,506.62
A	10036OT3E365JM-W40	230/460V	100 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€14,609.71
A	07518OT3E365JM-W40	230/460V	75 hp	3 Phase	1 1/4"	1.15	Pump	-	S1	€12,843.46
B	05018OT3E326JP-W40	230/460V	50 hp	3 Phase	1 1/4"	1.25	Pump	-	Continuous	€9,259.06
B	05036OT3E324JP-W40	230/460V	50 hp	3 Phase	1 1/4"	1.15	Pump	-	S1	€7,094.85
B	10018OT3E404JP-W40	230/460V	100 hp	3-Phase	1 5/8"	1.15	Pump	-	S1	€17,010.94
B	04036OT3E286JP-W40	230/460V	40 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€7,178.49
B	03018OT3E286JP-W40	230/460V	30 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€5,101.96
B	04018OT3E324JP-W40	230/460V	40 hp	3 Phase	1 1/4"	1.15	Pump	-	S1	€7,560.88
B	02518OT3E284JP-W40	230/460V	25 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€6,366.61
C	03036OT3E284JM-W40	230/460V	30 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€6,447.55
B	02018OT3E256JP-W40	230/460V	20 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€3,831.34
B	02036OT3E254JP-W40	230/460V	20 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€3,284.16
B	01518OT3E254JP-W40	230/460V	15 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€3,056.33
C	02018OT3E256JM-W40	230/460V	20 hp	3-Phase	1 1/4"	1.15	Pump	-	S1	€5,106.31
A	06018OT3E364JM-W40	230/460V	60 hp	3 Phase	1 1/4"	1.15	Pump	-	S1	€11,253.32
A	05018OT3E326JM-W40	230/460V	50 hp	Three Phase	1 1/4"	1.25	Close Coupled Pump	-	Continuous	€9,258.24
A	05036OT3E324JM-W40	230/460V	50 hp	3 Phase	1 1/4"	1.15	Pump	-	S1	€8,662.31

WEG -

Three Phase Footed-Close Coupled Pump Motors, Internal AEGIS Shaft Grounding Rings, ODP

Style	Model	Voltage	Duty Cycle	No. Of Poles	No Load Amps	Synchronous Speed	Output Rating	Mounting	Moment Of Inertia	Price
A	01536OT3E215JM-SG	230/460V	Continuous	2	12.3/6.17A	3600 RPM	15 hp	Foot Mounted	0.5512 lbs.-sq. ft.	€2,218.32
B	01018OT3E215JM-SG	230/460V AC	S1	4	12/5.99A	1800 RPM	10 hp	Foot Mounted	1.3 lbs.-sq. ft.	€1,821.66
B	01036OT3E213JM-SG	230/460V AC	S1	2	9.32/4.66A	3600 RPM	10 hp	Foot Mounted	0.4651 lbs.-sq. ft.	€1,776.49
B	00718OT3E213JM-SG	230/460V AC	S1	4	8.79/4.39A	1800 RPM	7 1/2 hp	Foot Mounted	1.03 lbs.-sq. ft.	€1,574.86

WEG -

Three Phase Footed-Close Coupled Pump Motors, ODP

Style	Model	Voltage	Frame	Service Factor	Hp	No. Of Poles	No Load Amps	Efficiency	Output Hp	Price
A	00718OT3E213JM	208-230/460V	215JM	1	7 1/2 hp	4	4.5/9A	50%	7 1/2 hp	-	RFQ
A	01036OT3E213JM	208-230/460V	215JM	1	10 hp	2	4.2/8.4A	50%	10 hp	-	RFQ
A	00512OT3E215JM	208-230/460V	213JM	1	5 hp	6	3.6/7.2A	50%	5 hp	-	RFQ
A	00312OT3E213JM	208-230/460V	213JM	1	3 hp	6	2.5/5A	50%	3 hp	-	RFQ
A	01536OT3E215JM	208-230/460V	-	1	-	2	-	50%	-	-	RFQ
B	00512OT3E215JM-S	208/230/460V AC	213JM	1.15	-	6	3.55/7.1A	89.5%	5 hp	€1,573.66
B	00312OT3E213JM-S	230/460/190-220/380-415V AC	213JM	1.15	-	6	2.29/4.58A	88.5%	3 hp	€1,318.35
A	01036OP3H213JM	575V	213JM	1	-	2	4A	50%	10 hp	-	RFQ
A	01536OP3H215JM	575V	213JM	1	-	2	4.56A	50%	15 hp	-	RFQ
A	01536OT3H215JM	575V	213JM	1	15 hp	2	4.64A	50%	15 hp	-	RFQ
C	01536OT3H215JM-S	575V	215JM	-	15 hp	-	-	-	-	€1,985.67
A	00718OP3H213JM	575V	215JM	1	7 1/2 hp	4	3.28A	50%	7 1/2 hp	-	RFQ
B	01018OT3H215JM-S	575V AC	215JM	1.15	-	4	4.79A	-	-	€1,629.75
B	00718OT3H213JM-S	575V AC	213JM	1.15	7 1/2 hp	4	3.51A	-	-	€1,336.24
A	00718OT3H213JM	575V AC	213JM	-	7 1/2 hp	-	-	-	-	-	RFQ

WEG -

Three Phase Footed-Close Coupled Pump Motors, Internal AEGIS Shaft Grounding Rings, TEFC

Style	Model	Voltage	No. Of Poles	No Load Amps	Synchronous Speed	Output Rating	Mounting	Moment Of Inertia	Lrc	Price
A	01018ET3E215JM-SG	230/460V AC	4	11.1/5.54A	1800 RPM	10 hp	Foot Mounted	1.07 lbs.-sq. ft.	7.0X(Code H)	€2,353.24
A	00718ET3E213JM-SG	230/460V AC	4	8.81/4.41A	1800 RPM	7 1/2 hp	Foot Mounted	0.938 lbs.-sq. ft.	7.3X(Code J)	€2,027.53
A	01536ET3E215JM-SG	230/460V AC	2	12.4/6.2A	3600 RPM	15 hp	Foot Mounted	0.6341 lbs.-sq. ft.	8.2X(Code J)	€2,610.29
A	00736ET3E213JM-SG	230/460V AC	2	6.63/3.32A	3600 RPM	7 1/2 hp	Foot Mounted	0.5496 lbs.-sq. ft.	7.6X(Code H)	€1,913.54
A	01036ET3E215JM-SG	230/460V AC	2	7.53/3.77A	3600 RPM	10 hp	Foot Mounted	0.7188 lbs.-sq. ft.	7.5X(Code H)	€2,313.20

WEG -

Three Phase Footed-Close Coupled Pump Motors, TEFC

Style	Model	Voltage	Frame	Service Factor	Hp	Amps	No Load Amps	L. R. Amps	Frame Material	Price
A	00512ET3E215JM-S	208/230/460V AC	215JM	1.15	5 hp	6.74/13.5A	3.42/6.84A	42.6A	Rolled Steel	€2,045.00
A	00718ET3E213JM-S	230/460/190-220/380-415V AC	215JM	1.15	7 1/2 hp	9.18/18.4A	4.41/8.81A	75.2A	Rolled Steel	€1,812.28
A	01536ET3E215JM-S	230/460/190-220/380-415V AC	215JM	1.15	15 hp	17/34A	6.2/12.4A	139/279A	Rolled Steel	€2,379.10
A	00736ET3E213JM-S	230/460/190-220/380-415V AC	213JM	1.15	7 1/2 hp	8.67/17.3A	3.32/6.63A	65.9/132A	Rolled Steel	€1,692.97
A	01036ET3E215JM-S	230/460/190-220/380-415V AC	213JM	1.15	10 hp	11.5/23A	3.77/7.53A	95.5A	Rolled Steel	€2,045.00
A	01018ET3E215JM-S	230/460/190-220/380-415V AC	213JM	1.15	10 hp	12.2/24.4A	5.54/11.1A	85.4/171A	Rolled Steel	€2,084.54
B	00312ET3E213JM-W22	230/460/380V AC	213JM	1.25	3 hp	4.41/8.82A	2.55/5.1A	30.9/61.7A	Cast Iron	€1,697.74
B	00512ET3E215JM-W22	230/460/380V AC	215JM	1.25	5 hp	6.83/13.7A	3.45/6.9A	49.7A	Cast Iron	€2,045.00
C	00312ET3E213JM-S	230/460V	215JM	1.15	3 hp	4.66A	2.61A	28A	-	€1,697.74
D	01536ET3H215JM-S	575V	213JM	-	15 hp	13.6A	-	-	-	€2,379.10
B	01036ET3H215JM-W22	575V AC	215JM	1.25	-	9.28A	2.88A	66.8A	Cast Iron	€2,045.00
B	01536ET3H215JM-W22	575V AC	215JM	1.25	-	14A	4.96A	123A	Cast Iron	€2,379.10
A	01036ET3H215JM-S	575V AC	215JM	1.15	-	9.49A	3.44A	71.2A	Rolled Steel	€2,045.00

WEG -

Jm ODP Three Phase Close Coupled Pump Motors

Style	Model	Voltage	Hp	Motor Application	Motor Design	Shaft Dia.	Frame Material	No. Of Poles	Synchronous Speed	Price
A	00236OT3V145JM-SG	200/400V AC	-	-	-	-	Rolled Steel	2	3600 RPM	€859.01
B	00318OT3V182JM-SG	200/400V AC	-	-	-	-	Rolled Steel	4	1800 RPM	€996.23
A	00336OT3V145JM-SG	200/400V AC	-	-	-	-	Rolled Steel	2	3600 RPM	€954.46
B	00536OT3V182JM-SG	200/400V AC	-	-	-	-	Rolled Steel	2	3600 RPM	€1,147.75
C	00118OT3E143JM-S	208-230/460V AC	1 hp	Pump	3-Phase	7/8"	Rolled Steel	4	1800 RPM	€652.46
D	02036OT3E254JM-S	208-230/460V AC	20 hp	Pump	3-Phase	1 1/4"	Rolled Steel	2	3600 RPM	€3,379.61
C	00156OT3E143JM-S	208-230/460V AC	1 1/2 hp	Pump	3-Phase	7/8"	Rolled Steel	2	3600 RPM	€866.98
E	00236OT3E145JM-S	208-230/460V AC	2 hp	Pump	3 Phase	7/8"	Rolled Steel	2	3600 RPM	€995.50
F	01536OT3E215JM-S	208-230/460V AC	15 hp	Pump	3-Phase	7/8"	Rolled Steel	2	3600 RPM	€2,202.36
F	01018OT3E215JM-S	208-230/460V AC	10 hp	Pump	3-Phase	7/8"	Rolled Steel	4	1800 RPM	€1,829.31
D	02018OT3E256JM-S	208-230/460V AC	20 hp	Pump	3-Phase	1 1/4"	Rolled Steel	4	1800 RPM	€3,902.18
D	02536OT3E256JM-S	208-230/460V AC	25 hp	Pump	3-Phase	1 1/4"	Rolled Steel	2	3600 RPM	€3,475.34
D	01518OT3E254JM-S	208-230/460V AC	15 hp	Pump	3-Phase	-	Rolled Steel	4	1800 RPM	€3,233.94
C	00718OT3E213JM-S	208-230/460V AC	7 1/2 hp	Pump	3-Phase	7/8"	Steel	4	1800 RPM	€1,483.41
G	00536OT3E182JM-S	208-230/460V AC	5 hp	Pump	3-Phase	7/8"	Rolled Steel	2	3600 RPM	€1,099.14
C	00518OT3E184JM-S	208-230/460V AC	5 hp	Pump	3-Phase	7/8"	Rolled Steel	4	1800 RPM	€1,149.07
C	00336OT3E145JM-S	208-230/460V AC	3 hp	Pump	3-Phase	7/8"	Rolled Steel	2	3600 RPM	€877.33
C	00318OT3E182JM-S	208-230/460V AC	3 hp	Pump	3-Phase	7/8"	Rolled Steel	4	1800 RPM	€891.49
C	00218OT3E145JM-S	208-230/460V AC	2 hp	Pump	3-Phase	7/8"	Rolled Steel	4	1800 RPM	€783.93
A	00158OT3E145JM-S	208-230/460V AC	1 1/2 hp	Close Coupled Pump	-	7/8"	Rolled Steel	4	1800 RPM	€742.21
C	01036OT3E213JM-S	230/460V AC	10 hp	Pump	3-Phase	7/8"	Rolled Steel	2	3600 RPM	€1,665.10
C	00736OT3E184JM-S	230/460V AC	7 1/2 hp	Pump	3-Phase	7/8"	Rolled Steel	2	3600 RPM	€1,441.58
A	00156OT3H143JM-SG	575V AC	1 1/2 hp	-	-	-	Rolled Steel	2	3600 RPM	€804.14
B	00518OT3H184JM-SG	575V AC	-	-	-	-	Rolled Steel	4	1800 RPM	€1,215.75
H	01536OT3H215JM-SG	575V AC	-	-	-	-	Rolled Steel	2	3600 RPM	€2,218.32

WEG -

Pump Motor, 100 HP, 3600 RPM, 200/400V, ODP, 364/5JP, Footless, Fire Pump

Model	Item	Price (ex. VAT)
10036OP3VFP365JPV-W4	DD3GPA	€10,149.77

WEG -

Pump Motor, 30 HP, 3600 RPM, 208-230/460V, ODP, 284/6JM, Footless, Fire Pump

Model	Item	Price (ex. VAT)
03036OP3EFP284JMV-W4	DD2CXC	€3,414.90

WEG -

Pump Motor, 40 HP, 1800 RPM, 200/400V, ODP, 324/6JP, Footless

Model	Item	Price (ex. VAT)
04018OT3V324JPV-W40	DE2AXW	€4,713.12

WEG -

Pump Motor, 30 HP, 3600 RPM, 575V, ODP, 284/6JM, Footless, Fire Pump

Model	Item	Price (ex. VAT)
03036OP3HFP284JMV-W4	DD8FXY	€3,677.32

WEG -

Pump Motor, 30 HP, 3600 RPM, 575V, ODP, 284/6JM, Footless

Model	Item	Price (ex. VAT)
03036OT3H284JMV-W40	DD8GAV	€3,955.93

12...9 10

Popular Search Queries

Keyed Shaft

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

WEG Close-Coupled Pump Motors

Used to connect pump impellers directly to the motor shaft with power ratings up to 100 hp and an efficiency of 95%. Available in ODP / TENV enclosures and feature Class F insulation and NPT threaded terminal box

Three Phase Close Coupled Pump Motors, TEFC

Jm Tefc Three Phase Close Coupled Pump Motors

JM Type Close Coupled Pump Motors

JP Type Close Coupled Pump Motors

Jp Tefc Three Phase Close Coupled Pump Motors

Jp ODP Three Phase Close Coupled Pump Motors

Jm ODP Single Phase Close Coupled Pump Motors

Jm ODP Three Phase Footless, Vertical Close Coupled Pump Motors

Jp ODP Three Phase Footless, Vertical Close Coupled Pump Motors

Three Phase Close Coupled Pump Motors, ODP

Open Dripproof 3-Phase Close-Coupled Pump Motors

Three Phase Footed-Close Coupled Pump Motors, Internal AEGIS Shaft Grounding Rings, ODP

Three Phase Footed-Close Coupled Pump Motors, ODP

Three Phase Footed-Close Coupled Pump Motors, Internal AEGIS Shaft Grounding Rings, TEFC

Three Phase Footed-Close Coupled Pump Motors, TEFC

Jm ODP Three Phase Close Coupled Pump Motors

Pump Motor, 100 HP, 3600 RPM, 200/400V, ODP, 364/5JP, Footless, Fire Pump

Pump Motor, 30 HP, 3600 RPM, 208-230/460V, ODP, 284/6JM, Footless, Fire Pump

Pump Motor, 40 HP, 1800 RPM, 200/400V, ODP, 324/6JP, Footless

Pump Motor, 30 HP, 3600 RPM, 575V, ODP, 284/6JM, Footless, Fire Pump

Pump Motor, 30 HP, 3600 RPM, 575V, ODP, 284/6JM, Footless

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

WEG Close-Coupled Pump Motors Used to connect pump impellers directly to the motor shaft with power ratings up to 100 hp and an efficiency of 95%. Available in ODP / TENV enclosures and feature Class F insulation and NPT threaded terminal box

Pump Motor, 100 HP, 3600 RPM, 200/400V, ODP, 364/5JP, Footless, Fire Pump

Pump Motor, 30 HP, 3600 RPM, 208-230/460V, ODP, 284/6JM, Footless, Fire Pump

Pump Motor, 40 HP, 1800 RPM, 200/400V, ODP, 324/6JP, Footless

Pump Motor, 30 HP, 3600 RPM, 575V, ODP, 284/6JM, Footless, Fire Pump

Pump Motor, 30 HP, 3600 RPM, 575V, ODP, 284/6JM, Footless

Popular Search Queries

Explore More

WEG Close-Coupled Pump Motors

Used to connect pump impellers directly to the motor shaft with power ratings up to 100 hp and an efficiency of 95%. Available in ODP / TENV enclosures and feature Class F insulation and NPT threaded terminal box
