WEG 01018OT3E215JP-S 12682728 Pump Motor, 10 Hp, 1760 213/5jp 12.4a
Get it by Tuesday, Aug 25
5.00% off
€1,751.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 12.4/24.8A |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Body Dia. | 10.1" |
| Bolt Circle Dia. | 5 5/8" |
| Bolt Material | Carbon Steel |
| Break Down Torque | 350% |
| Cc Number | CC029A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 91.7% |
| Efficiency 50% | 90.2% |
| Efficiency 75% | 91% |
| Efficiency @ 100% | 91.7% |
| Efficiency Group | Premium |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame Material | Rolled Steel |
| Frame Size | 213/5JP |
| Frame Type | 213/5JP |
| Frequency | 60 Hz |
| Full Load Amps | 27.4-24.8/12.4A |
| Green Certification Or Other Recognition | rohs.png |
| Green Environmental Attribute | Does Not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic And Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acryl |
| Grounding Lugs | Single |
| Height | 10 3/16" |
| Hp | 10 hp |
| Impregnation Method | Dip and Bake Polyester |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 1000:1 |
| L. R. Amps | 86.8/174A |
| Length Less Shaft | 13 7/16" |
| Locked Rotor Time (cold) | 25 sec. |
| Locked Rotor Time(hot) | 14 sec. |
| Locked Rotor Torque | 250% |
| Main Terminal Box Hole | 1.377" |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia (j) | 1.3 lbs.-sq. ft. |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JP Threaded |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close Coupled Pump |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Face, Base |
| Nameplate Speed | 1770 RPM |
| Nema Design | B |
| No Load Amps | 5.99/12A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Noise Level | 59 dBA |
| Nominal Efficiency | 91.7% |
| Output Rating | 10 hp |
| Overall Height | 10 3/16" |
| Overall Length | 21 9/16" |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 100% | 0.83 |
| Power Factor 50% | 0.64 |
| Power Factor 75% | 0.77 |
| Product Datasheet | weg-01018ot3e215jp-s.pdf |
| Regreasable Bearings | Regreasable Bearings |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 8 1/8" |
| Shaft Material | Carbon Steel |
| Slip | 1.67% |
| Speed | 1700-1800 RPM , 1701-1800 RPM , 1770 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 29.7 lbs.-ft. |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 190-220/230/380-415/460V , 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 71.1 |
| Ship height (cm) | 25.88 |
| Ship length (cm) | 54.77 |
| Ship width (cm) | 43.94 |
| HS code | 8501524000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Shaft Dia. | Motor Application | Insulation Class | Frame Material | Duty Cycle | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
00156OT3E143JP-S | 208-230/460V AC | 1 1/2 hp | 7/8" | Pump | Class F | Rolled Steel | S1 | 16 3/4" | €866.98 | |
|
00158OT3E145JP-S | 208-230/460V AC | 1 1/2 hp | 7/8" | Pump | Class F | Rolled Steel | S1 | 17 15/16" | €896.50 | |
|
00518OT3E184JP-S | 208-230/460V AC | 5 hp | 7/8" | Pump | Class F | Rolled Steel | S1 | 20 7/8" | €1,119.75 | |
|
00718OT3E213JP-S | 208-230/460V AC | 7 1/2 hp | 1 1/4" | Pump | Class F | Rolled Steel | S1 | 21 9/16" | €1,837.59 | |
|
01536OT3E215JP-S | 208-230/460V AC | 15 hp | 1 1/4" | Pump | Class F | Rolled Steel | S1 | 22 3/4" | €2,212.26 | |
 |

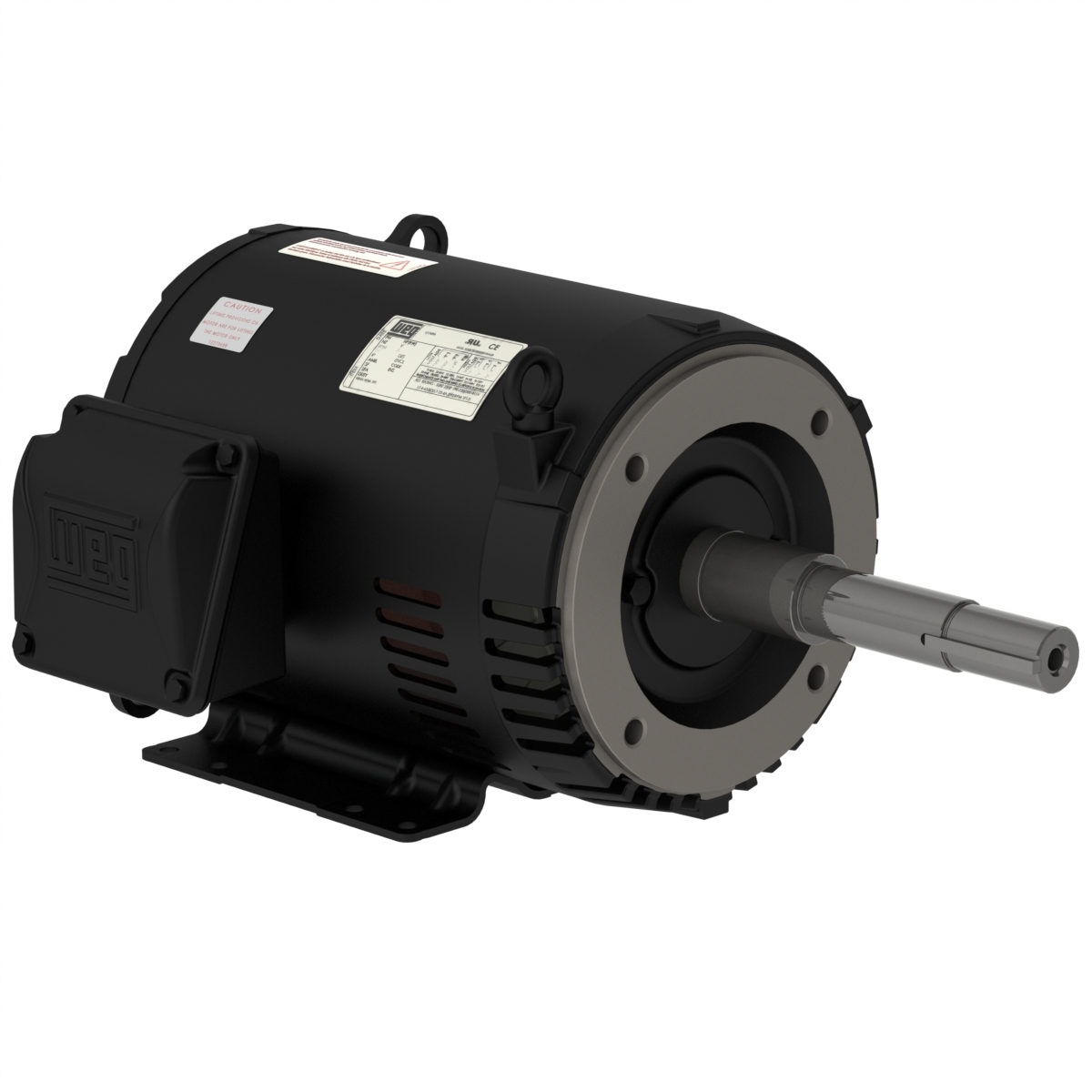

01518OT3E254JP-S | 208-230/460V AC | 15 hp | 1 1/4" | Close Coupled Pump | Class F | Rolled Steel | S1 | 24 13/16" | €2,670.71 | |
 |

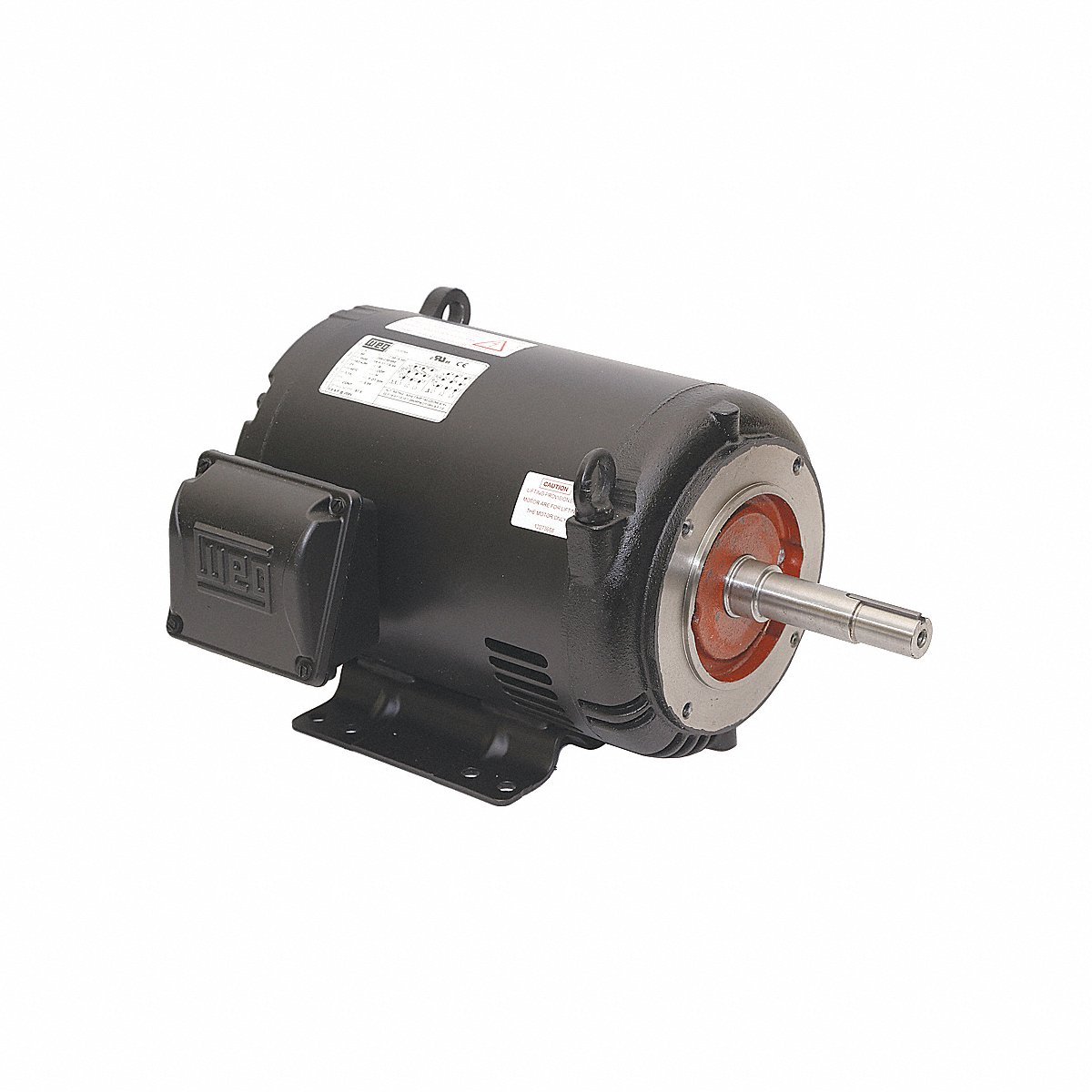

02036OT3E254JP-S | 208-230/460V AC | 20 hp | 1 1/4" | Pump | Class F | Rolled Steel | S1 | 24 13/16" | €2,775.87 |
