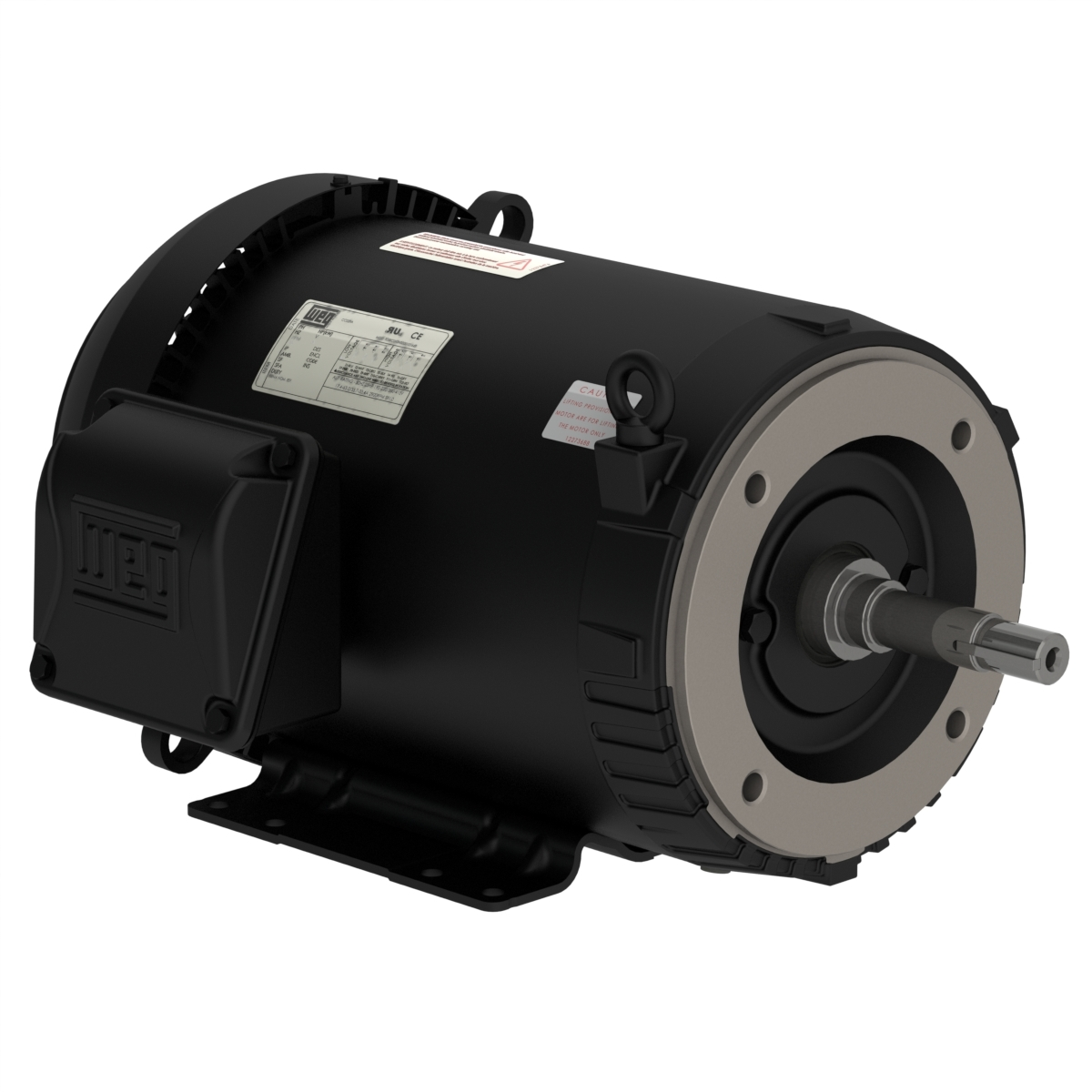

WEG 01018ET3E215JM-S 13180570 Pump Motor, 10 HP, 1800 RPM, 208/230/460 V, 3 Phase, TEFC, 213/5JM Frame, Footed, Close Coupled Pump
Get it by Thursday, Apr 2
€2,084.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Application | Closed Coupled |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 300% |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 4:1 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 91.7% |
| Efficiency @ 100% | 91.7% |
| Efficiency @ 50% | 91% |
| Efficiency @ 75% | 91% |
| Enclosure | IC411 |
| Enclosure Iec | IP55 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 213JM |
| Frame Material | Rolled Steel |
| Frame Size | 213/5JM |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hp | 10 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rating | Inverter Ready |
| L.r. Amperes | 85.4/171A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time (hot) | 15 sec. |
| Locked Rotor Torque | 250% |
| Main Terminal Box Hole | 1.377" |
| Moment Of Inertia (j) | 1.07 lbs.-sq. ft. |
| Mounting | F-1 |
| Mounting Arrangement | F1 |
| Nema Frame | NEMA 213-5JM |
| Nema Mount | C Face With Base |
| No Load Amps | 5.54/11.1A |
| Noise Level | 60 dBA |
| Number Of Poles | 4 |
| Output Hp | 10 hp |
| Output Kw | 7.5 kW |
| Output Rating | 10 hp |
| Output Rpm | 1760/1465 RPM |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.67 |
| Power Factor 75% | 0.78 |
| Power Factor_100% | 0.84 |
| Product Datasheet | weg-01018et3e215jm-s.pdf |
| Rated Current | 12.2/24.4A |
| Rated Speed | 1760 RPM |
| Rated Torque | 29.8 lbs.-ft. |
| Replaces | 01018EP3E215JM-S |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp Code | T3 = 200°C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
Shipping Info:
| Ship weight (kg) | 63.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 51.89 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Model | Voltage | Frame | Service Factor | Hp | Frame Material | Efficiency | No Load Amps | Synchronous Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01536ET3E215JM-S | 230/460/190-220/380-415V AC | 215JM | 1.15 | 15 hp | Rolled Steel | 91% | 6.2/12.4A | 3600 RPM | €2,379.10 | |
| 01536ET3H215JM-W22 | 575V AC | 215JM | 1.25 | - | Cast Iron | 50% | 4.96A | 3600 RPM | €2,379.10 | |
| 00312ET3E213JM-W22 | 230/460/380V AC | 213JM | 1.25 | 3 hp | Cast Iron | 50% | 2.55/5.1A | 1200 RPM | €1,697.74 | |
| 00512ET3E215JM-W22 | 230/460/380V AC | 215JM | 1.25 | 5 hp | Cast Iron | 50% | 3.45/6.9A | 1200 RPM | €2,045.00 | |
| 01036ET3H215JM-W22 | 575V AC | 215JM | 1.25 | - | Cast Iron | 50% | 2.88A | 3600 RPM | €2,045.00 | |
| 00512ET3E215JM-S | 208/230/460V AC | 215JM | 1.15 | 5 hp | Rolled Steel | 89.5% | 3.42/6.84A | 1200 RPM | €2,045.00 | |
| 00718ET3E213JM-S | 230/460/190-220/380-415V AC | 215JM | 1.15 | 7 1/2 hp | Rolled Steel | 91.7% | 4.41/8.81A | 1800 RPM | €1,812.28 |
