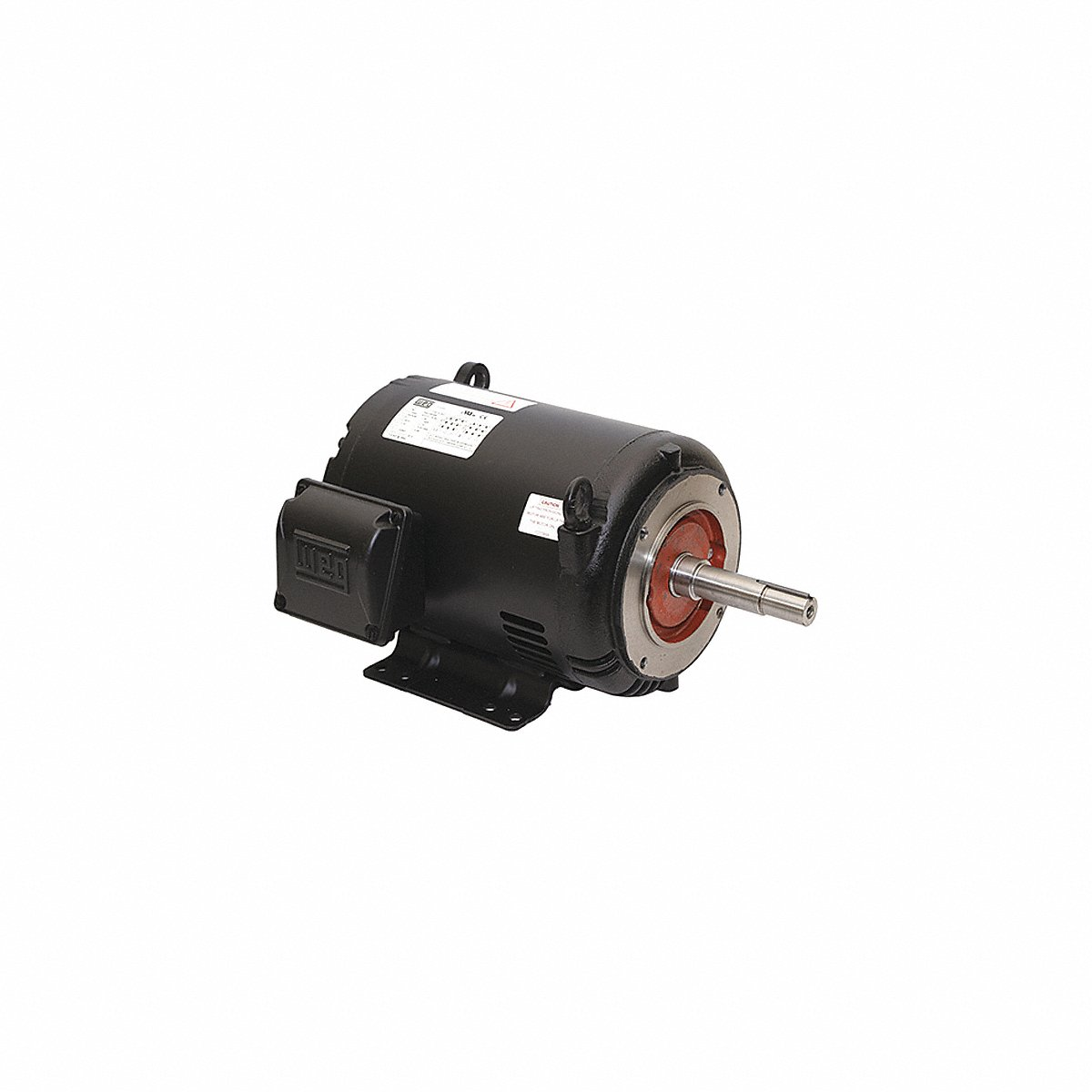

WEG 00736OT3E184JP-S 12682715 Pump Motor, 7-1/2 Hp, 3500 182/4JP 8.67A
Get it by Friday, Jul 3
5.00% off
€1,653.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 8 2/5" |
| Bolt Circle Dia. | 5 5/8" |
| Cc Number | CC029A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Efficiency Group | Premium |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Flange | C |
| Frame Material | Steel |
| Frame Size | 184JP |
| Frame Type | 182/4JP |
| Frequency | 60 Hz |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 19.2-17.3/8.6A |
| Green Environmental Attribute | Does Not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic And Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acryl |
| Height | 8 9/16" |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 1000:1 |
| Length Less Shaft | 12 3/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JP Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Close Coupled Pump |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Face, Base |
| Nameplate Speed | 3500 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Number | CC029A |
| Output Rating | 7 1/2 hp |
| Overall Height | 8 9/16" |
| Overall Length | 19 3/4" |
| Phase | 3 |
| Product Datasheet | weg-00736ot3e184jp-s.pdf |
| Regreasable Bearings | Regreasable Bearings |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 7 1/8" |
| Shaft Material | Carbon Steel |
| Speed | 3001-3600 RPM , 3400-3600 RPM |
| Synchronous Speed | 3600 RPM |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 190-220/230/380-415/460V , 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 37.8 |
| Ship height (cm) | 21.75 |
| Ship length (cm) | 50.17 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Hp | Shaft Dia. | Motor Application | Frame Material | Duty Cycle | Overall Length | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

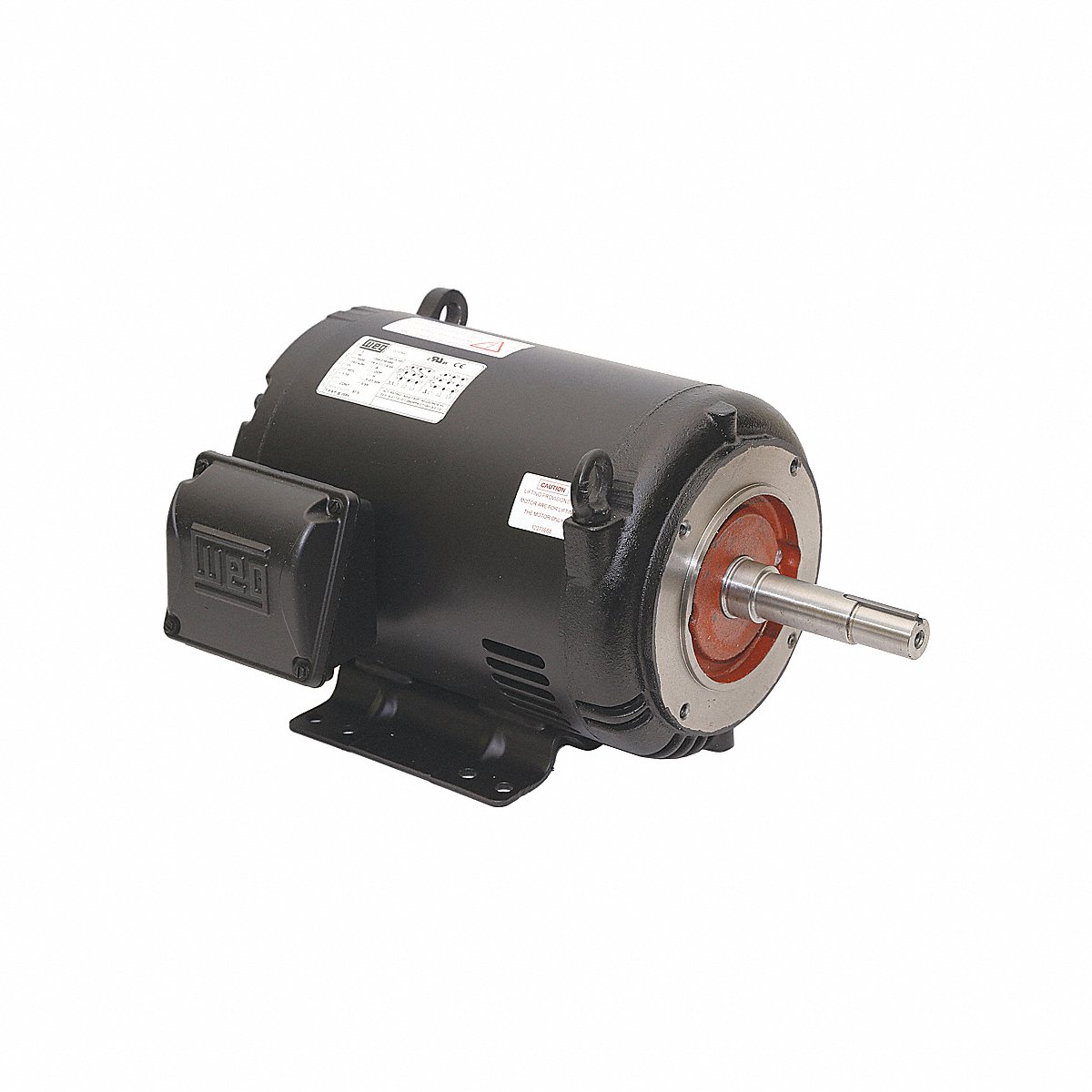

| 00156OT3E143JP-S | 208-230/460V AC | 1 1/2 hp | 7/8" | Pump | Rolled Steel | S1 | 16 3/4" | 84% | €866.98 | |
| 00158OT3E145JP-S | 208-230/460V AC | 1 1/2 hp | 7/8" | Pump | Rolled Steel | S1 | 17 15/16" | 86.5% | €896.50 | |
| 00518OT3E184JP-S | 208-230/460V AC | 5 hp | 7/8" | Pump | Rolled Steel | S1 | 20 7/8" | 89.5% | €1,119.75 | |
| 00718OT3E213JP-S | 208-230/460V AC | 7 1/2 hp | 1 1/4" | Pump | Rolled Steel | S1 | 21 9/16" | 91% | €1,837.59 | |
| 01018OT3E215JP-S | 208-230/460V AC | 10 hp | 1 1/4" | Pump | Rolled Steel | S1 | 21 9/16" | 91.7% | €1,843.54 | |
| 01536OT3E215JP-S | 208-230/460V AC | 15 hp | 1 1/4" | Pump | Rolled Steel | S1 | 22 3/4" | 90.2% | €2,212.26 | |
| 01518OT3E254JP-S | 208-230/460V AC | 15 hp | 1 1/4" | Close Coupled Pump | Rolled Steel | S1 | 24 13/16" | 93% | €2,670.71 |
