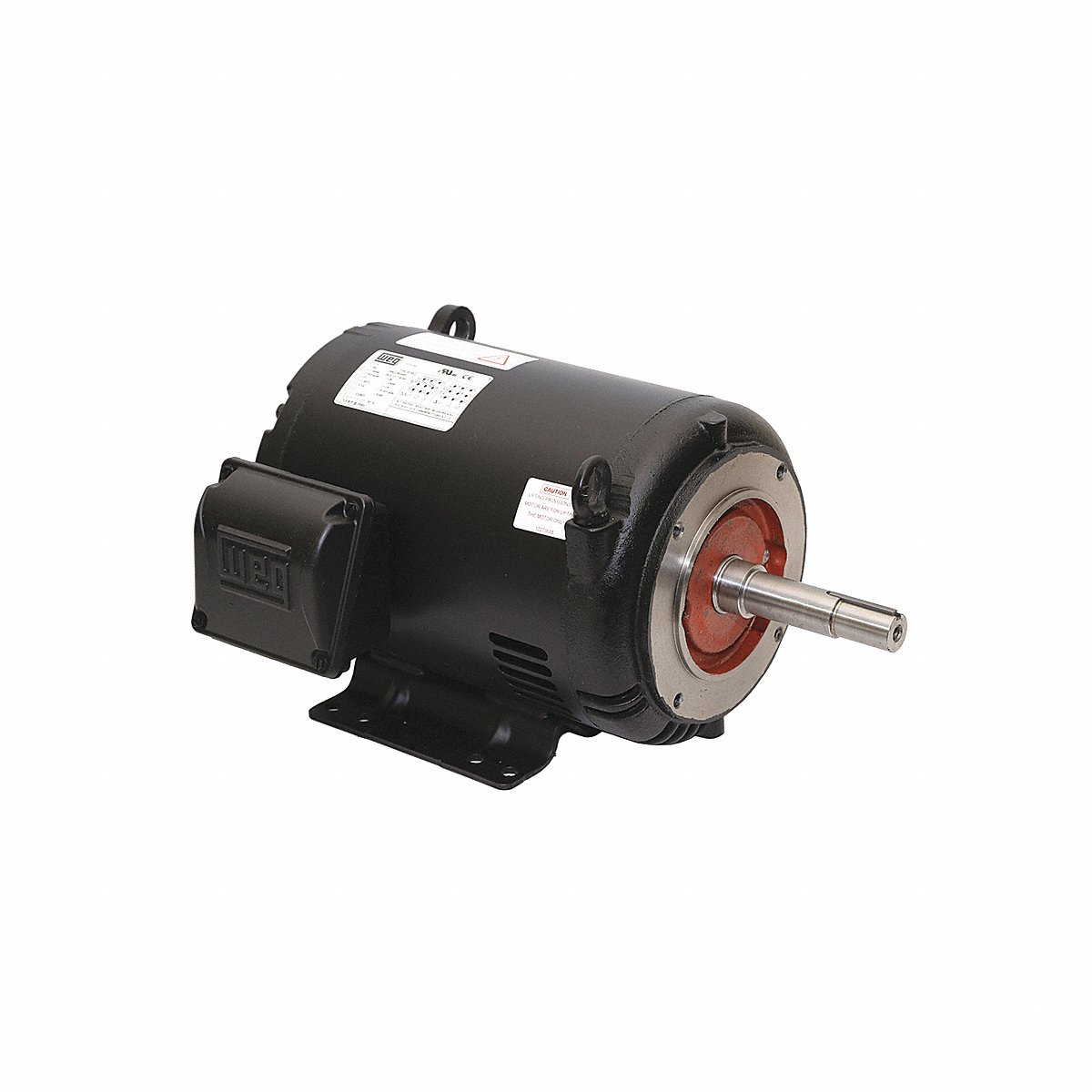

WEG 00236OT3E145JM-S 12676943 Pump Motor, 2 HP, 3600 RPM, 208/230/460V, ODP, 143/5JM, Footed, Close Coupled Pump
2 hp
208/230/460V
3600 rpm
Get it by Tuesday, Apr 7
5.00% off
€945.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Body Dia. | 6 3/5" |
| Bolt Circle Dia. | 5 7/8" |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 330% |
| Cable Press Material | Sem |
| Cc Number | CC029A |
| Composition | Steel |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 85.5% |
| Efficiency @ 100% | 85.5% |
| Efficiency @ 50% | 84% |
| Efficiency @ 75% | 85.5% |
| Efficiency Group | Premium |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame Material | Rolled Steel |
| Frame Size | 143/5JM |
| Frame Type | 143JM/145JM |
| Frequency | 60 Hz |
| Full Load Amps | 3.3-3/1.5A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Grounding Lugs | Single |
| Height | 6 3/4" |
| Hp | 2 hp |
| Impregnation Method | Dip and Bake Polyester |
| Includes | Base |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 1000:1 |
| L.r. Amperes | 21.5/43.1A |
| Length Less Shaft | 9 13/16" |
| Locked Rotor Time (cold) | 25 sec. |
| Locked Rotor Time (hot) | 14 sec. |
| Locked Rotor Torque | 220% |
| Main Terminal Box Hole | 1.118" |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia (j) | 0.1151 lbs.-sq. ft. |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close Coupled Pump |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3510 RPM |
| Nema Design | B |
| No Load Amps | 0.917/1.83A |
| No. Of Speeds | 1 |
| Noise Level | 62 dBA |
| Nominal Efficiency | 85.5% |
| Number Of Poles | 2 |
| Output Rating | 2 hp |
| Overall Height | 6 3/4" |
| Overall Length | 14 1/8" |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.77 |
| Power Factor 75% | 0.86 |
| Power Factor_100% | 0.91 |
| Product Datasheet | weg-00236ot3e145jm-s.pdf |
| Rated Current | 2.42/4.84A |
| Rated Speed | 3510 RPM |
| Rated Torque | 2.99 lbs.-ft. |
| Regreasable Bearings | Regreasable Bearings |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Rpm Range | 3001-3600 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/8" |
| Shaft Material | Carbon Steel |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 190-220/230/380-415/460V , 208-230/460V AC |
| Warranty | 3 yrs. |
| Weight | 41 lbs. |
Shipping Info:
| Ship weight (kg) | 21.11 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 35.88 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Hp | Rpm Range | Nameplate Rpm | Motor Application | Motor Design | Shaft Dia. | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118OT3E143JM-S | 208-230/460V AC | 1 hp | 1701-1800 RPM | 1760 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €652.46 | |
| 00156OT3E143JM-S | 208-230/460V AC | 1 1/2 hp | 3001-3600 RPM | 3510 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €866.98 | |
| 00158OT3E145JM-S | 208-230/460V AC | 1 1/2 hp | 1701-1800 RPM | 1760 RPM | Close Coupled Pump | - | 7/8" | Rolled Steel | €742.21 | |
| 00218OT3E145JM-S | 208-230/460V AC | 2 hp | 1701-1800 RPM | 1760 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €783.93 | |
| 00318OT3E182JM-S | 208-230/460V AC | 3 hp | 1701-1800 RPM | 1760 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €891.49 | |
| 00336OT3E145JM-S | 208-230/460V AC | 3 hp | 3001-3600 RPM | 3480 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €877.33 | |
| 00518OT3E184JM-S | 208-230/460V AC | 5 hp | 1701-1800 RPM | 1760 RPM | Pump | 3-Phase | 7/8" | Rolled Steel | €1,149.07 |
