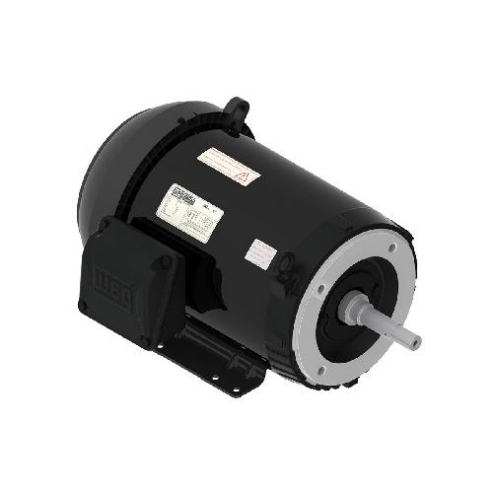

WEG 00312ET3E213JM-S 12913380 Pump Motor, 3 HP, 1200 RPM, 208/230/460V, TEFC, 213/5JM, Footed, Close CoupLED Pump
Get it by Monday, Aug 24
€1,697.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 4.66A |
| Application | Closed Coupled |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Break Down Torque | 270% |
| Cold Locked Rotor Time | 0 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 4:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 89.5% |
| Enclosure Iec | IP55 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 215JM |
| Frame Material | Rolled Steel |
| Frame Size | 213JM |
| Frequency | 50 Hz , 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 28A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 6x(Code H) |
| Main Terminal Box Hole Size | 1.377" |
| Material | Carbon Steel |
| Mounting | Foot-Mounted, F-1 |
| Mounting Arrangement | F1 |
| Nde Bearing Seal | No |
| Nema Frame | NEMA 213-5JM |
| Nema Mount | C Face With Base |
| No Load Amps | 2.61A |
| No. Of Poles | 6 |
| Noise Level | 53 dBA |
| Output Hp | 3 hp |
| Output Kw | 2.2 kW |
| Output Rating | 2.2 kW |
| Output Speed | 1175/970 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-00312et3e213jm-s.pdf |
| Rated Speed | 975 RPM |
| Rated Torque | 16.2 lbs.-ft. |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.5% |
| Speed | 1100-1200 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Code | T3 = 200°C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 415V |
Shipping Info:
| Ship weight (kg) | 66.15 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Frame | Service Factor | Hp | Insulation Class | Frame Material | Duty Cycle | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01536ET3E215JM-S | 230/460/190-220/380-415V AC | 215JM | 1.15 | 15 hp | Class F | Rolled Steel | S1 | 2 | €2,379.10 | |
| 01536ET3H215JM-W22 | 575V AC | 215JM | 1.25 | - | Class F | Cast Iron | S1 | 2 | €2,379.10 | |
| 00312ET3E213JM-W22 | 230/460/380V AC | 213JM | 1.25 | 3 hp | Class F | Cast Iron | S1 | 6 | €1,697.74 | |
| 00512ET3E215JM-W22 | 230/460/380V AC | 215JM | 1.25 | 5 hp | Class F | Cast Iron | S1 | 6 | €2,045.00 | |
| 01018ET3E215JM-S | 230/460/190-220/380-415V AC | 213JM | 1.15 | 10 hp | Class F | Rolled Steel | S1 | 4 | €2,084.54 | |
| 01036ET3H215JM-W22 | 575V AC | 215JM | 1.25 | - | Class F | Cast Iron | S1 | 2 | €2,045.00 | |
| 00512ET3E215JM-S | 208/230/460V AC | 215JM | 1.15 | 5 hp | Class F | Rolled Steel | S1 | 6 | €2,045.00 |
