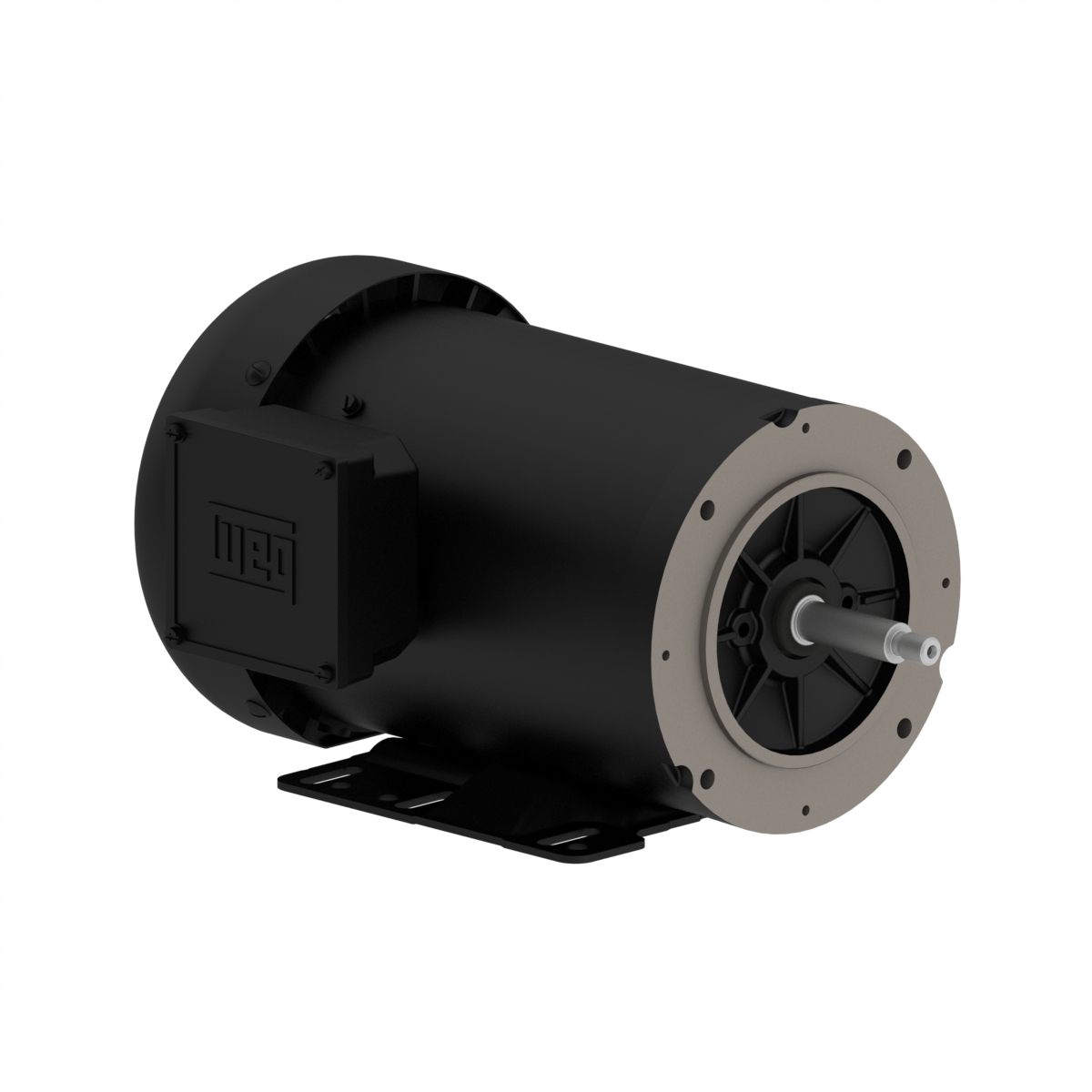

WEG 00318ET3E182JP-S 14579219 Pump Motor, 3 HP, 1800 RPM, 208/230/460V, 2.23 A No Load Current, TEFC, 182/4JP, Footed, Close CoupLED Pump
1800 rpm
3 hp
208/230/460V
184JP
Get it by Wednesday, Aug 19
€1,241.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Ac Line Option | Non Switched |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 4.32A |
| Application | Closed Coupled |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Braking | Dynamic |
| Break Down Torque | 320% |
| Cold Locked Rotor Time | 37 sec. |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 2:1 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Direction Controls | Forward/Stop/Reverse |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 89.5% |
| Enclosure | IC411 |
| Enclosure Iec | IP55 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Encoder Input | Optional |
| Environment | Panel Mount |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 184JP |
| Frame Material | Rolled Steel |
| Frame Size | 182JP |
| Frequency | 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Input Phase | 3 |
| Input Voltage | 380-460V AC |
| Insulation Class | F |
| Inverter Rating | Inverter Ready |
| Ip Rating | IP20 |
| L. R. Amps | 34.6A |
| Locked Rotor Time(hot) | 21 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 8x(Code K) |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.0169 kg/sq. m |
| Mounting | F-1 |
| Mounting Arrangement | F1 |
| Nde Bearing Seal | No |
| Nema Frame | NEMA 182-4JP |
| Nema Mount | C Face With Base |
| No Load Amps | 2.23A |
| No. Of Poles | 4 |
| Noise Level | 53 dBA |
| Output Amps | 6.1A |
| Output Hp | 3 hp |
| Output Kw | 2-2.9 kW |
| Output Phase | 3 |
| Output Rating | 3 hp |
| Output Speed | 1765/1455 RPM |
| Output Voltage | 380-460V AC |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-00318et3e182jp-s.pdf |
| Rated Speed | 1465 RPM |
| Rated Torque | 1.49 Kgf-M |
| Replaces | 00318EP3E182JP-S |
| Resilient Base | Without |
| Rfi Filter Option | None |
| Rotation | CW And CCW |
| Series | CFW500-G1 Series |
| Service Factor | 1.15 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.33% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Code | T3 = 200°C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 208/230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 46.97 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 57.05 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Product | Model | Voltage | Frame | Service Factor | Hp | No. Of Poles | Synchronous Speed | Mounting | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
02512ET3E324JM-W22 | 230/460/380V AC | 326JM | 1.25 | 25 hp | 6 | 1200 RPM | F-1 | Class F | €6,353.33 | |
|
01536EP3E254JM-W22 | 208/230/460V AC | 254JM | 1.25 | 15 hp | 2 | 3600 RPM | F-1 | Class F | €2,345.57 | |
 |
00236ET3E145JM-W22 | 208/230/460V AC | 143JM | 1 | 2 hp | 2 | 3600 RPM | F-1 | Class F | €814.87 | |
 |
01518ET3E254JM-S | 230/460/190-220/380-415V AC | 254JM | 1.15 | 15 hp | 4 | 1800 RPM | F-1 | Class F | €3,016.06 | |
 |
02012ET3E286JP-W22 | 208-230/460/380V AC | 284JP | 1 | - | 6 | 1200 RPM | F-1 | Class F | €5,745.04 | |
|
02012ET3E286JM-W22 | 230/460/380V AC | 284JM | 1.25 | - | 6 | 1200 RPM | F-1 | Class F | €5,659.13 | |
|
01512ET3E284JM-W22 | 230/460/380V AC | 286JM | 1.25 | - | 6 | 1200 RPM | F-1 | Class F | €4,522.38 |
