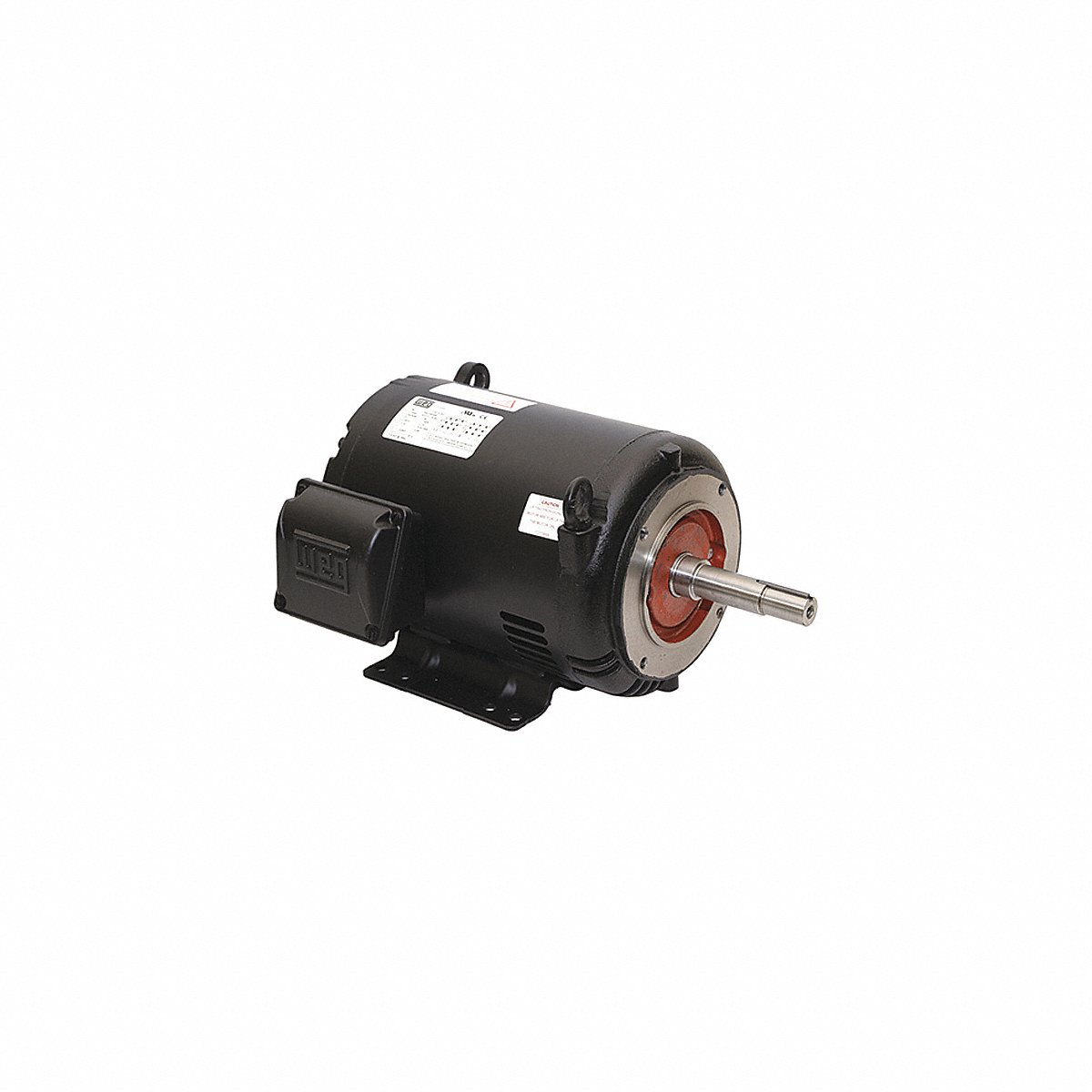

WEG 00118OT3E143JP-S Pump Motor, 1 Hp, 1760 143/5JP 1.51A | AH3QRY 33HN17

WEG 00118OT3E143JP-S 12682720 Pump Motor, 1 Hp, 1760 143/5JP 1.51A

Item: AH3QRYModel: 00118OT3E143JP-SCross Ref: 33HN17 / 12682720
Check Availability
In Stock

Get it by Tuesday, Dec 23

€794.27
10.00% off
€714.84 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Bearing Type Ball
Body Dia. 6 3/5"
Bolt Circle Dia. 5 5/8"
Bolt Material Carbon Steel
Cc Number CC029A
Conduit Box Location Exterior
Conduit Box Position F1
Duty Cycle S1
Efficiency 85.5%
Efficiency Group Premium
Enclosure Type ODP
Frame Material Rolled Steel
Frame Size 143/5JP
Frame Type 143/5JP
Frequency 60 Hz
Full Load Amps 3.3-3/1.5A
Green Environmental Attribute Does Not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic And Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acryl
Height 6 3/4"
Hp 1 hp
Hz 60 Hz
Ins. Class Class F
Insulation Class Class F
Inverter Rated Yes
Inverter Rating 1000:1
Length Less Shaft 9 7/16"
Manufacturers Warranty Length 3 yrs.
Max. Ambient Temp. 40°C
Motor Application Pump
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face, Base
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design JP Threaded
Motor Shaft Rotation CW/CCW
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Sub Application Close Coupled Pump
Motor Type Three Phase
Mounting Type Face/Base
Nameplate Rpm 1760 RPM
Nema Design B
No. Of Speeds 1
Nominal Efficiency 85.5%
Number CC029A
Number Of Poles 4
Overall Height 6 3/4"
Overall Length 16 3/4"
Phase 3
Regreasable Bearings Regreasable Bearings
Rotation CW/CCW
Rpm 1700-1800 RPM
Rpm Range 1701-1800 RPM
Service Factor 1.15
Shaft Dia. 7/8"
Shaft Length 7 1/8"
Shaft Material Carbon Steel
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Thermal Protection None
Usable @ 200v Yes
Usable @ 208v Yes
Voltage 208-230/460V AC
Warranty 3 yrs.
Weight 38 lbs.

Shipping Info:

Ship weight (kg) 17.73
Ship height (cm)17.15
Ship length (cm)42.55
Ship width (cm)34.04
Country of OriginUS

Product Variants

ProductModelVoltageHpRpm RangeShaft Dia.Motor ApplicationNameplate RpmFrame MaterialDuty CyclePrice
WEG 00156OT3E143JP-S Pump Motor, 1-1/2 Hp, 3495 143/5jp 1.85a | AG3FBF 33HN21 00156OT3E143JP-S208-230/460V AC1 1/2 hp3001-3600 RPM7/8"Pump3510 RPMRolled SteelS1€866.98
WEG 00158OT3E145JP-S Pump Motor, 1-1/2 Hp, 1755 143/5jp 2.07a | AG3FBH 33HN26 00158OT3E145JP-S208-230/460V AC1 1/2 hp1701-1800 RPM7/8"Pump1760 RPMRolled SteelS1€896.50
WEG 00518OT3E184JP-S Pump Motor, 5 Hp, 1750 182/4jp 6.33a | AG3FBN 33HN50 00518OT3E184JP-S208-230/460V AC5 hp1701-1800 RPM7/8"Pump1760 RPMRolled SteelS1€1,119.75
WEG 00718OT3E213JP-S Pump Motor, 7-1/2 Hp, 1760 213/5jp 9.14a | AG3FBR 33HN61 00718OT3E213JP-S208-230/460V AC7 1/2 hp1701-1800 RPM1 1/4"Pump1770 RPMRolled SteelS1€1,837.59
WEG 01018OT3E215JP-S Pump Motor, 10 Hp, 1760 213/5jp 12.4a | AG3FBU 33HN72 01018OT3E215JP-S208-230/460V AC10 hp1701-1800 RPM1 1/4"Pump1770 RPMRolled SteelS1€1,843.54
WEG 01536OT3E215JP-S Pump Motor, 15 Hp, 3525 213/5jp 17.2a | AG3FBW 33HN84 01536OT3E215JP-S208-230/460V AC15 hp3001-3600 RPM1 1/4"Pump3535 RPMRolled SteelS1€2,212.26
WEG 01518OT3E254JP-S Pump Motor, 3 Phase, 15 Hp, 254/6jp 18.3a | AG3FFY 33HU05 01518OT3E254JP-S208-230/460V AC15 hp1701-1800 RPM1 1/4"Close Coupled Pump1775 RPMRolled SteelS1€2,670.71
