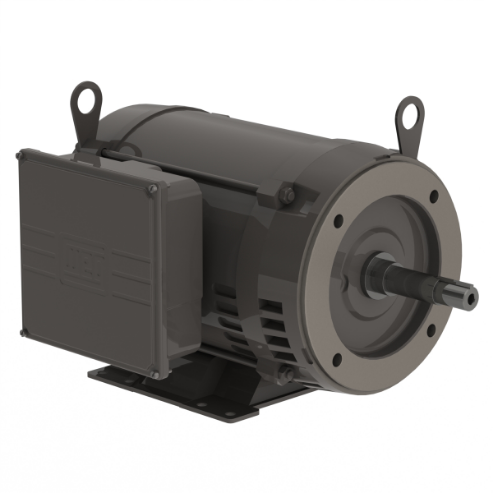

WEG 00736OS1C213JM 12724449 Electric Motor, 7.5Hp, 60Hz, 3600 Rpm
Get it by Tuesday, Dec 23
€1,822.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 MASL |
| Bearing Cap | Yes |
| Break-down Torque | 229% |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Steel |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 93% |
| Efficiency At 50 % | 83% |
| Efficiency At 75 % | 90% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Flange Type | C |
| Frame Material | Rolled Steel |
| Frame Size | 213/5JM |
| Frame Type | 213/5JM |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Hp | 7 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 256-241A |
| Locked Rotor Torque | 220% |
| Lrc | 8.0X(Code H) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Max. Ambient Temp. | -20°C to +40°C |
| Moment Of Inertia | 0.4271 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Mounting | Foot Mounted |
| No Load Amps | 0-8A |
| No. Of Poles | 2 |
| Output Hp | 7 1/2 hp |
| Output Power | 5.5 kW |
| Output Rating | 7 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL 7022 207A (ISO 12944 - C2) |
| Phase | 1 |
| Power Factor At 1 % | 85.5 |
| Power Factor At 50 % | 75.5 |
| Power Factor At 75 % | 84.8 |
| Pump Seal | Mechanical |
| Rated Current | 32-30.1A |
| Rated Speed | 3510 RPM |
| Rated Torque | 11.2 lbs.-ft. |
| Rated Voltage | 208-230V AC |
| Resilient Base | Without |
| Rotation | CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Grade | Grade SAE 1040/45 |
| Shaft Material | Carbon Steel |
| Ships Factory Direct | No |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 59.4 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Hp | Duty Cycle | No Load Amps | Output Rating | Mounting | Lrc | Rated Current | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
01036OS1C215JM | 208-230V | 10 hp | Continuous | 0-10.5A | 10 hp | Foot Mounted | 6.0X(Code G) | 46-42A | €2,389.50 |
