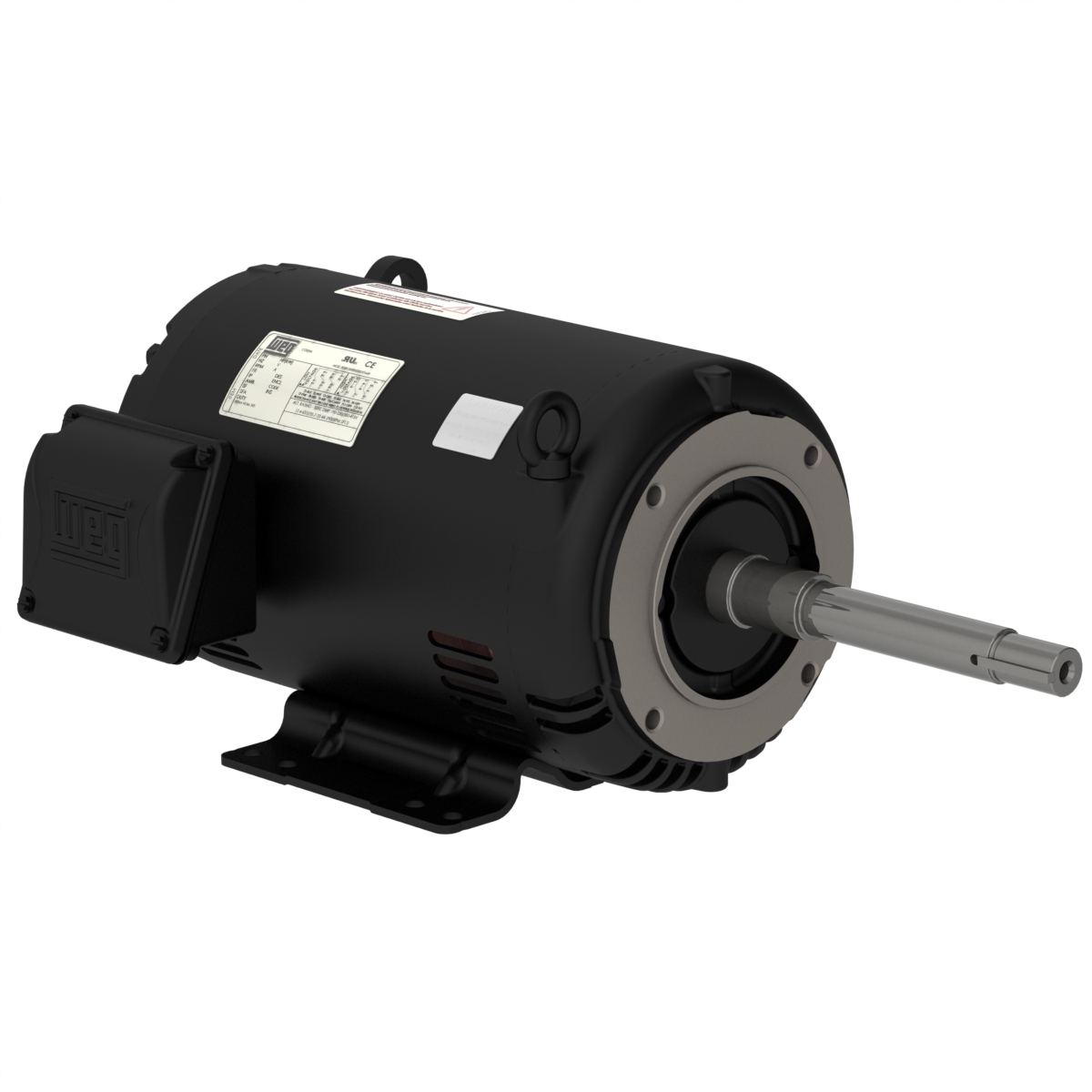

WEG 00318OT3E182JP-S 12682723 Pump Motor, 3 HP, 1800 RPM, 208/230/460V, ODP, 182/4JP, Footed, Close CoupLED Pump
Get it by Tuesday, Aug 18
5.00% off
€1,031.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 4.33A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Body Dia. | 8 2/5" |
| Bolt Circle Dia. | 5 5/8" |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 32 sec. |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Connection Cables Quantity | 9 |
| De Bearing Seal | No |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency | 89.5% |
| Efficiency Group | Premium |
| Enclosure | IC01 |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame Material | Rolled Steel , Steel |
| Frame Size | 182JP |
| Frame Type | 182/4JP |
| Frequency | 50/60 Hz |
| Frequency | 60 Hz |
| Full Load Amps | 8.5-7.7/3.8A |
| Grade | Grade 1010/20 |
| Green Environmental Attribute | Does Not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic And Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acryl |
| Grounding Lugs Type | Single |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F , F |
| Inverter Rated | Yes |
| Inverter Rating | 1000:1 |
| L. R. Amps | 32.5A |
| Locked Rotor Time(hot) | 18 sec. |
| Locked Rotor Torque | 180% |
| Lrc | 7.5x(Code J) |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia | 0.3092 lbs.-sq. ft. |
| Motor Application | Close Coupled Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | JP Threaded |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Face, Base |
| Nameplate Speed | 1765 RPM |
| Nde Bearing Seal | No |
| Nema Design | B |
| No Load Amps | 2.37A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Noise Level | 53 dBA |
| Number | CC029A |
| Output Rating | 3 hp |
| Overall Height | 8 9/16" |
| Overall Length | 19 3/4" |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Product Datasheet | weg-00318ot3e182jp-s.pdf |
| Regreasable Bearings | Yes |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 7 1/8" |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Slip | 2% |
| Speed | 1470 RPM , 1700-1800 RPM , 1701-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 10.7 lbs.-ft. |
| Tropicalized Painting | Without |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 190-220/230/380-415/460V , 208-230/460V AC , 415V |
Shipping Info:
| Ship weight (kg) | 36.9 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 59.69 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Hp | Shaft Dia. | Motor Application | Insulation Class | Frame Material | Duty Cycle | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00156OT3E143JP-S | 208-230/460V AC | 1 1/2 hp | 7/8" | Pump | Class F | Rolled Steel | S1 | 16 3/4" | €866.98 | |
| 00158OT3E145JP-S | 208-230/460V AC | 1 1/2 hp | 7/8" | Pump | Class F | Rolled Steel | S1 | 17 15/16" | €896.50 | |
| 00518OT3E184JP-S | 208-230/460V AC | 5 hp | 7/8" | Pump | Class F | Rolled Steel | S1 | 20 7/8" | €1,119.75 | |
| 00718OT3E213JP-S | 208-230/460V AC | 7 1/2 hp | 1 1/4" | Pump | Class F | Rolled Steel | S1 | 21 9/16" | €1,837.59 | |
| 01018OT3E215JP-S | 208-230/460V AC | 10 hp | 1 1/4" | Pump | Class F | Rolled Steel | S1 | 21 9/16" | €1,843.54 | |
| 01536OT3E215JP-S | 208-230/460V AC | 15 hp | 1 1/4" | Pump | Class F | Rolled Steel | S1 | 22 3/4" | €2,212.26 | |
| 01518OT3E254JP-S | 208-230/460V AC | 15 hp | 1 1/4" | Close Coupled Pump | Class F | Rolled Steel | S1 | 24 13/16" | €2,670.71 |
