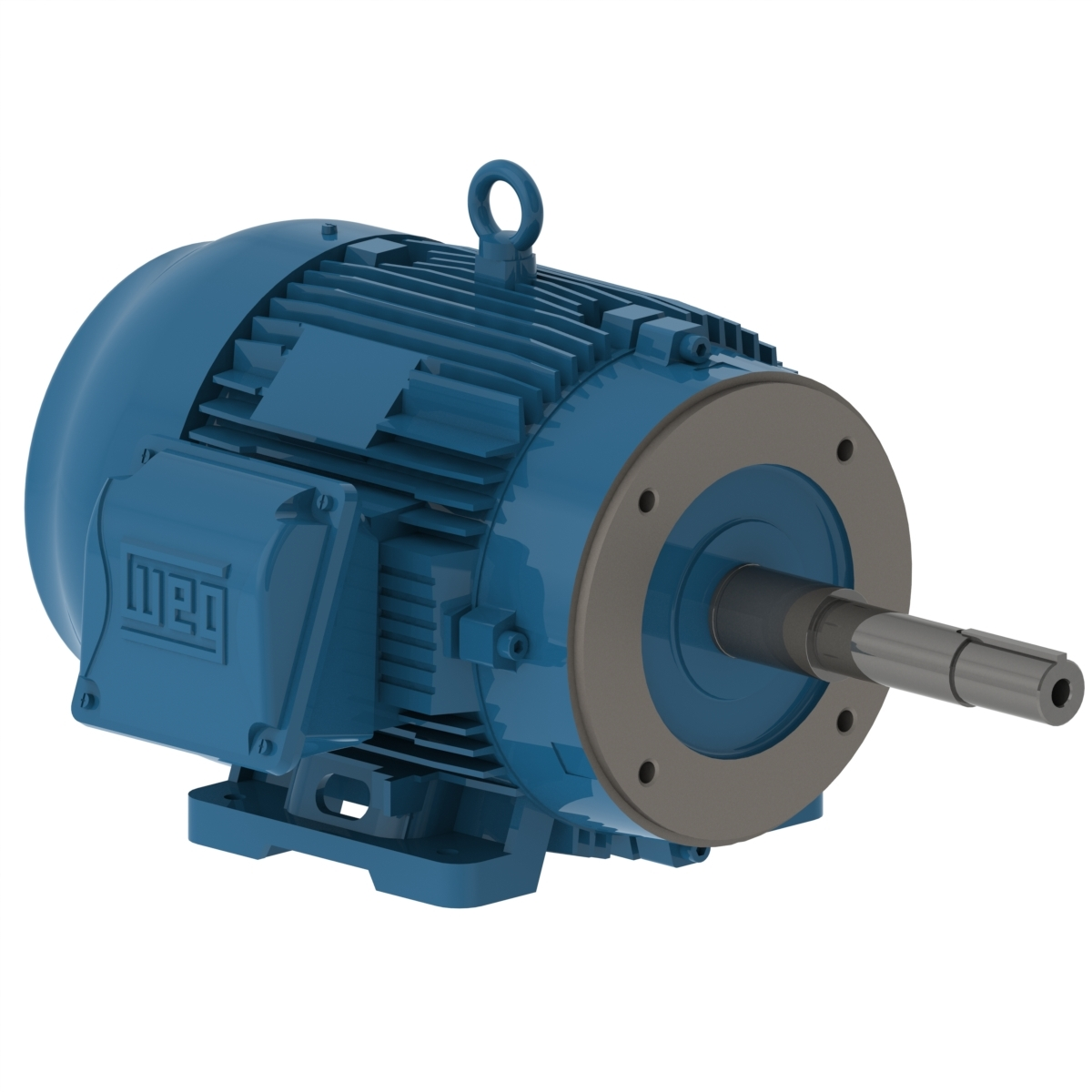

WEG 00512ET3E215JP-W22 Electric Motor, 5Hp, 60Hz, 1170 Rpm | BB8UKP

WEG 00512ET3E215JP-W22 12325222 Pump Motor, 5 HP, 1200 RPM, 208/230/460V, TEFC, 213/5JP, Footed, Close CoupLED Pump

Item: BB8UKPModel: 00512ET3E215JP-W22Cross Ref: 12325222
Check Availability
In Stock

Get it by Tuesday, Apr 7

€2,082.00 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Application Closed Coupled
Bearing Cap Yes
Body Design Cast Iron
Breakdown Torque 260%
Connection Cables Quantity 9
Ct Speed Range 2:1
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50%
Efficiency @ 100% 89.5%
Efficiency @ 50% 88.5%
Efficiency @ 75% 89.5%
Enclosure IC411
Enclosure Iec IP55
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Frame 213JP
Frame Material Cast Iron
Frame Size 213/5JP
Frequency 60 Hz
Full Load Amps 6.83/13.7-15.1A
Grounding Lugs Single
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
Inverter Rating Inverter Duty
L.r. Amperes 46.4/92.9A
Locked Rotor Time (cold) 102 sec.
Locked Rotor Time (hot) 57 sec.
Locked Rotor Torque 170%
Main Terminal Box Hole 1"
Main Terminal Box Type NPT
Moment Of Inertia (j) 1.47 lbs.-sq. ft.
Mounting F-1
Mounting Arrangement F1, F2
Nema Frame NEMA 213-5JP
Nema Mount C Face With Base
No Load Amps 3.45/6.9A
Noise 55 dBA
Noise Level 55 dBA
Number Of Poles 6
Output Hp 5 hp
Output Kw 3.7 kW
Output Rpm 1170/960 RPM
Overload Protection No
Phase 3
Power Factor 75%
Power Factor 50% 0.58
Power Factor 75% 0.7
Power Factor_100% 0.76
Product Datasheet weg-00512et3e215jp-w22.pdf
Pump Seal Gasket
Rated Current 6.83/13.7A
Rated Speed 1170 RPM
Rotation CW/CCW
Rpm 1170 RPM
Screw Cap Carbon Steel
Service Factor 1.25
Shaft Material Carbon Steel
Slip 2.5%
Starting Method Direct On Line
Synchronous Speed 1200 RPM
Temp Code T3 = 200°C
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 22.1 lbs.-ft.
Voltage 208/230/460V AC , 230/460/380V

Shipping Info:

Ship weight (kg) 86.85
Ship height (cm)32.26
Ship length (cm)52.83
Ship width (cm)37.08
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrameService FactorHpEfficiencyOutput HpSynchronous SpeedNo Load AmpsPrice
WEG 02512ET3E324JM-W22 Electric Motor, 25Hp, 60Hz, 1180 Rpm | BB2ZQC 02512ET3E324JM-W22230/460/380V AC326JM1.2525 hp50%25 hp, 20 hp1200 RPM14/28A€6,353.33
WEG 01536EP3E254JM-W22 Electric Motor, 15Hp, 60Hz, 3520 Rpm | BB3JLU 01536EP3E254JM-W22208/230/460V AC254JM1.2515 hp50%-3600 RPM4.6/9.2A€2,345.57
WEG 00236ET3E145JM-W22 Electric Motor, 2Hp, 60Hz, 3480 Rpm | BB3MVG 00236ET3E145JM-W22208/230/460V AC143JM12 hp50%2 hp3600 RPM0.99/1.98A€814.87
WEG 01518ET3E254JM-S Electric Motor, 15Hp, 60Hz, 1800 Rpm | BB4YBZ 01518ET3E254JM-S230/460/190-220/380-415V AC254JM1.1515 hp92.4%15 hp1800 RPM8.65/17.3A€3,016.06
WEG 02012ET3E286JP-W22 Electric Motor, 20Hp, 60Hz, 1175 Rpm | BB4YCB 02012ET3E286JP-W22208-230/460/380V AC284JP1-50%20 hp1200 RPM9.5/16.4-19A€5,745.04
WEG 02012ET3E286JM-W22 Electric Motor, 20Hp, 60Hz, 1175 Rpm | BB6JKP 02012ET3E286JM-W22230/460/380V AC284JM1.25-50%20 hp1200 RPM9.5/19A€5,659.13
WEG 01512ET3E284JM-W22 Electric Motor, 15Hp, 60Hz, 1175 Rpm | BB6KTK 01512ET3E284JM-W22230/460/380V AC286JM1.25-50%15 hp1200 RPM7/14A€4,522.38
