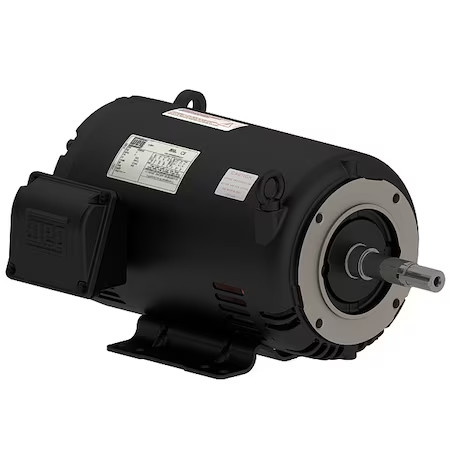

WEG 00536OT3E182JM-S Pump Motor, 182/4jm 208-230/460v | AG3FBP 33HN54

WEG 00536OT3E182JM-S 12676949 Pump Motor, 182/4jm 208-230/460v

Item: AG3FBPModel: 00536OT3E182JM-SCross Ref: 33HN54 / 12676949
Check Availability
In Stock

Get it by Tuesday, Apr 7

€1,099.14
5.00% off
€1,044.18 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Bearing Cap Yes
Bearing Type Ball
Body Dia. 8 1/2"
Bolt Circle Dia. 5 7/8"
Bolt Material Carbon Steel
Breakdown Torque 300%
Cable Press Material Sem
Cc Number CC029A
Composition Steel
Conduit Box Location Exterior
Conduit Box Position F1
Connection Cables Quantity 9
Drip Cover Without
Duty Cycle S1
Efficiency 86.5%
Efficiency @ 100% 86.5%
Efficiency @ 50% 85.5%
Efficiency @ 75% 86.5%
Efficiency Group Premium
Enclosure IC01
Enclosure Type ODP
Fan Cover Material Without Fan Cover
Fan Material Without Fan
Flange C
Frame Material Rolled Steel
Frame Size 182/4JM
Frame Type 182/4JM
Frequency 60 Hz
Full Load Amps 12.2/6.1A
Green Certification Or Other Recognition rohs.png
Green Environmental Attribute Does Not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic And Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acryl
Grounding Lugs Single
Height 8 9/16"
Hp 5 hp
Impregnation Method Dip and Bake Polyester
Ins. Class Class F
Insulation Class Class F
Inverter Rated Yes
Inverter Rating 1000:1
L.r. Amperes 48/96.1A
Length Less Shaft 12"
Locked Rotor Time (cold) 27 sec.
Locked Rotor Time (hot) 15 sec.
Locked Rotor Torque 190%
Main Terminal Box Hole 1.118"
Manufacturers Warranty Length 3 yrs.
Max. Ambient Temp. 40°C
Moment Of Inertia (j) 0.1386 lbs.-sq. ft.
Motor Application Pump
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face, Base
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design JM Threaded
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Shaft Rotation CW/CCW
Motor Sub Application Close Coupled Pump
Motor Type Three Phase
Mounting F-1
Mounting Type Face/Base
Nameplate Rpm 3510 RPM
Nema Design B
No Load Amps 3.1/6.2A
No. Of Speeds 1
Noise Level 65 dBA
Nominal Efficiency 86.5%
Number Of Poles 2
Output Rating 5 hp
Overall Height 8 9/16"
Overall Length 16 1/4"
Overload Protection No
Phase 3
Power Factor 50% 0.66
Power Factor 75% 0.78
Power Factor_100% 0.85
Product Datasheet weg-00536ot3e182jm-s.pdf
Rated Current 6.32/12.6A
Rated Speed 3510 RPM
Rated Torque 7.48 lbs.-ft.
Regreasable Bearings Regreasable Bearings
Resilient Base Without
Rotation CW/CCW
Rpm 3400-3600 RPM
Rpm Range 3001-3600 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Dia. 7/8"
Shaft Length 4 1/8"
Shaft Material Carbon Steel
Slip 2.5%
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Thermal Protection None
Usable @ 200v Yes
Usable @ 208v Yes
Voltage 190-220/230/380-415/460V , 208-230/460V AC
Warranty 3 yrs.
Weight 63 lbs.

Shipping Info:

Ship weight (kg) 31.95
Ship height (cm)21.75
Ship length (cm)41.28
Ship width (cm)37.08
HS code8501524000
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpRpm RangeNameplate RpmMotor ApplicationMotor DesignShaft Dia.Frame MaterialPrice
WEG 00118OT3E143JM-S Pump Motor, 1 Hp, 1760 143/5jm 1.51a | AG3FBD 33HN16 00118OT3E143JM-S208-230/460V AC1 hp1701-1800 RPM1760 RPMPump3-Phase7/8"Rolled Steel€652.46
WEG 00156OT3E143JM-S Pump Motor, 143/5jm 3495 | AG3FBE 33HN20 00156OT3E143JM-S208-230/460V AC1 1/2 hp3001-3600 RPM3510 RPMPump3-Phase7/8"Rolled Steel€866.98
WEG 00158OT3E145JM-S Pump Motor, 1-1/2 Hp, 143/5jm 3495 | AG3FBG 33HN25 00158OT3E145JM-S208-230/460V AC1 1/2 hp1701-1800 RPM1760 RPMClose Coupled Pump-7/8"Rolled Steel€742.21
WEG 00218OT3E145JM-S Pump Motor, 2 Hp, 1745 143/5jm | AG3FBJ 33HN30 00218OT3E145JM-S208-230/460V AC2 hp1701-1800 RPM1760 RPMPump3-Phase7/8"Rolled Steel€783.93
WEG 00318OT3E182JM-S Pump Motor, 3 Hp, 182/4jm 208-230/460v | AG3FBK 33HN39 00318OT3E182JM-S208-230/460V AC3 hp1701-1800 RPM1760 RPMPump3-Phase7/8"Rolled Steel€891.49
WEG 00336OT3E145JM-S Pump Motor, 3 Hp, 3475 143/5jm | AG3FBL 33HN44 00336OT3E145JM-S208-230/460V AC3 hp3001-3600 RPM3480 RPMPump3-Phase7/8"Rolled Steel€877.33
WEG 00518OT3E184JM-S Pump Motor, 5 Hp, 208-230/460v | AG3FBM 33HN49 00518OT3E184JM-S208-230/460V AC5 hp1701-1800 RPM1760 RPMPump3-Phase7/8"Rolled Steel€1,149.07
