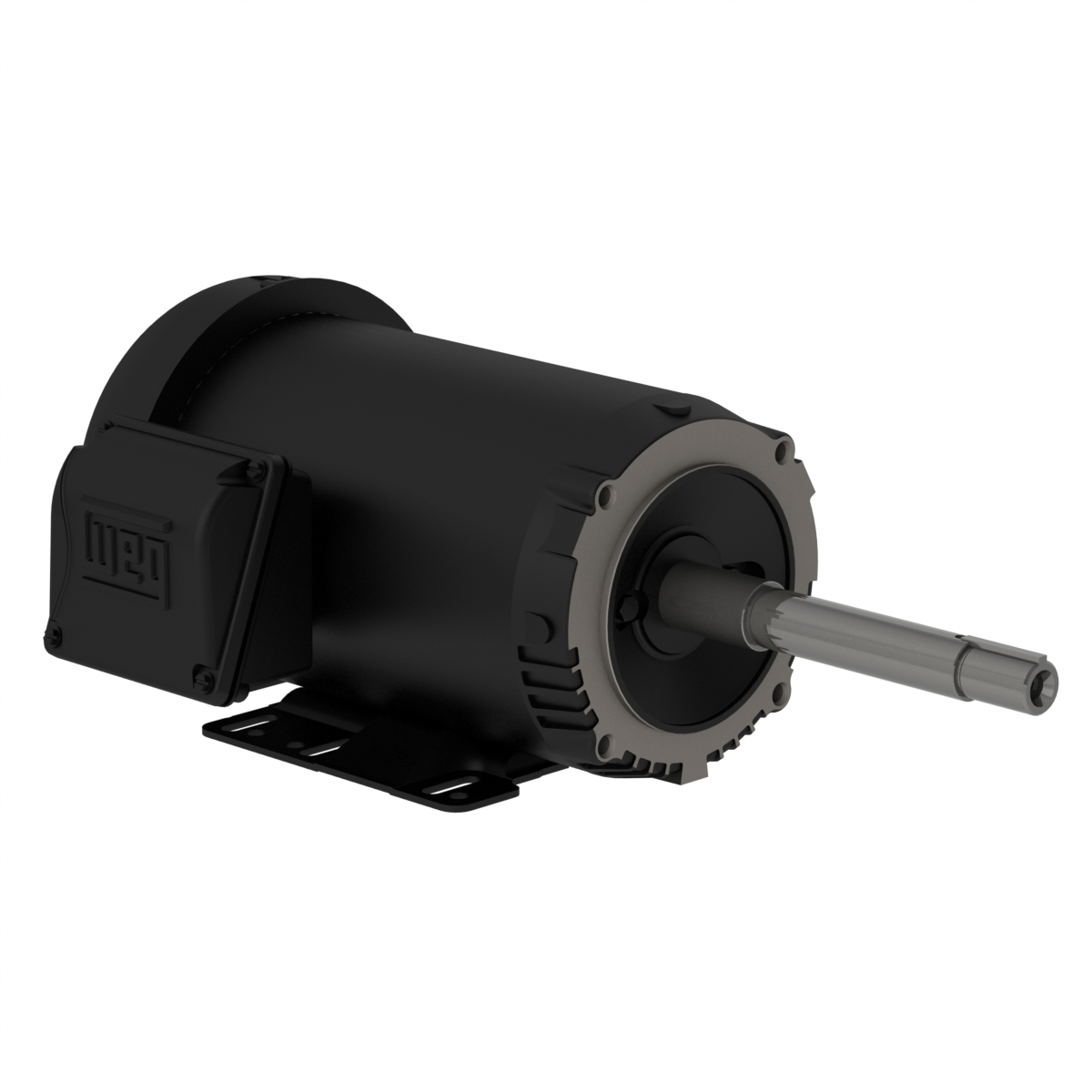

WEG 00218ET3E145JP-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BB8REC

WEG 00218ET3E145JP-S 14808490 Pump Motor, 2 HP, 1800 RPM, 208/230/460 V, 3 Phase, TEFC, 143/5JP Frame, Footed, Close Coupled Pump

Item: BB8RECModel: 00218ET3E145JP-SCross Ref: 14808490
Check Availability
In Stock

Get it by Friday, Apr 3

€856.62 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Application Closed Coupled
Bearing Cap Yes
Body Design Rolled Steel
Bolt Material Carbon Steel
Breakdown Torque 300%
Cable Press Material Sem
Connection Cables Quantity 9
Ct Speed Range 4:1
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 86.5%
Efficiency @ 100% 86.5%
Efficiency @ 50% 85.5%
Efficiency @ 75% 87.5%
Enclosure IC411
Enclosure Iec IP55
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Frame 143JP
Frame Material Rolled Steel
Frame Size 143/5JP
Frequency 60 Hz
Grounding Lugs Single
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
Inverter Rating Inverter Ready
L.r. Amperes 22.3/44.6A
Locked Rotor Time (cold) 27 sec.
Locked Rotor Time (hot) 15 sec.
Locked Rotor Torque 270%
Main Terminal Box Hole 1.118"
Moment Of Inertia (j) 0.1296 lbs.-sq. ft.
Mounting F-1
Mounting Arrangement F1
Nema Frame NEMA 143-5JP
Nema Mount C Face With Base
No Load Amps 1.4/2.8A
Noise Level 52 dBA
Number Of Poles 4
Output Hp 2 hp
Output Kw 1.5 kW
Output Rating 2 hp
Output Rpm 1745/1415 RPM
Overload Protection No
Phase 3
Power Factor 50% 0.6
Power Factor 75% 0.73
Power Factor_100% 0.8
Product Datasheet weg-00218et3e145jp-s.pdf
Rated Current 2.72/5.44A
Rated Speed 1745 RPM
Rated Torque 6.02 lbs.-ft.
Replaces 00218ET3E145JP-S
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Slip 3.06%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp Code T3 = 200°C
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Voltage 190-220/230/380-415/460V , 208/230/460V AC

Shipping Info:

Ship weight (kg) 21.15
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrameService FactorHpEfficiencyOutput HpSynchronous SpeedNo Load AmpsPrice
WEG 02512ET3E324JM-W22 Electric Motor, 25Hp, 60Hz, 1180 Rpm | BB2ZQC 02512ET3E324JM-W22230/460/380V AC326JM1.2525 hp50%25 hp, 20 hp1200 RPM14/28A€6,353.33
WEG 01536EP3E254JM-W22 Electric Motor, 15Hp, 60Hz, 3520 Rpm | BB3JLU 01536EP3E254JM-W22208/230/460V AC254JM1.2515 hp50%-3600 RPM4.6/9.2A€2,345.57
WEG 00236ET3E145JM-W22 Electric Motor, 2Hp, 60Hz, 3480 Rpm | BB3MVG 00236ET3E145JM-W22208/230/460V AC143JM12 hp50%2 hp3600 RPM0.99/1.98A€814.87
WEG 01518ET3E254JM-S Electric Motor, 15Hp, 60Hz, 1800 Rpm | BB4YBZ 01518ET3E254JM-S230/460/190-220/380-415V AC254JM1.1515 hp92.4%15 hp1800 RPM8.65/17.3A€3,016.06
WEG 02012ET3E286JP-W22 Electric Motor, 20Hp, 60Hz, 1175 Rpm | BB4YCB 02012ET3E286JP-W22208-230/460/380V AC284JP1-50%20 hp1200 RPM9.5/16.4-19A€5,745.04
WEG 02012ET3E286JM-W22 Electric Motor, 20Hp, 60Hz, 1175 Rpm | BB6JKP 02012ET3E286JM-W22230/460/380V AC284JM1.25-50%20 hp1200 RPM9.5/19A€5,659.13
WEG 01512ET3E284JM-W22 Electric Motor, 15Hp, 60Hz, 1175 Rpm | BB6KTK 01512ET3E284JM-W22230/460/380V AC286JM1.25-50%15 hp1200 RPM7/14A€4,522.38
