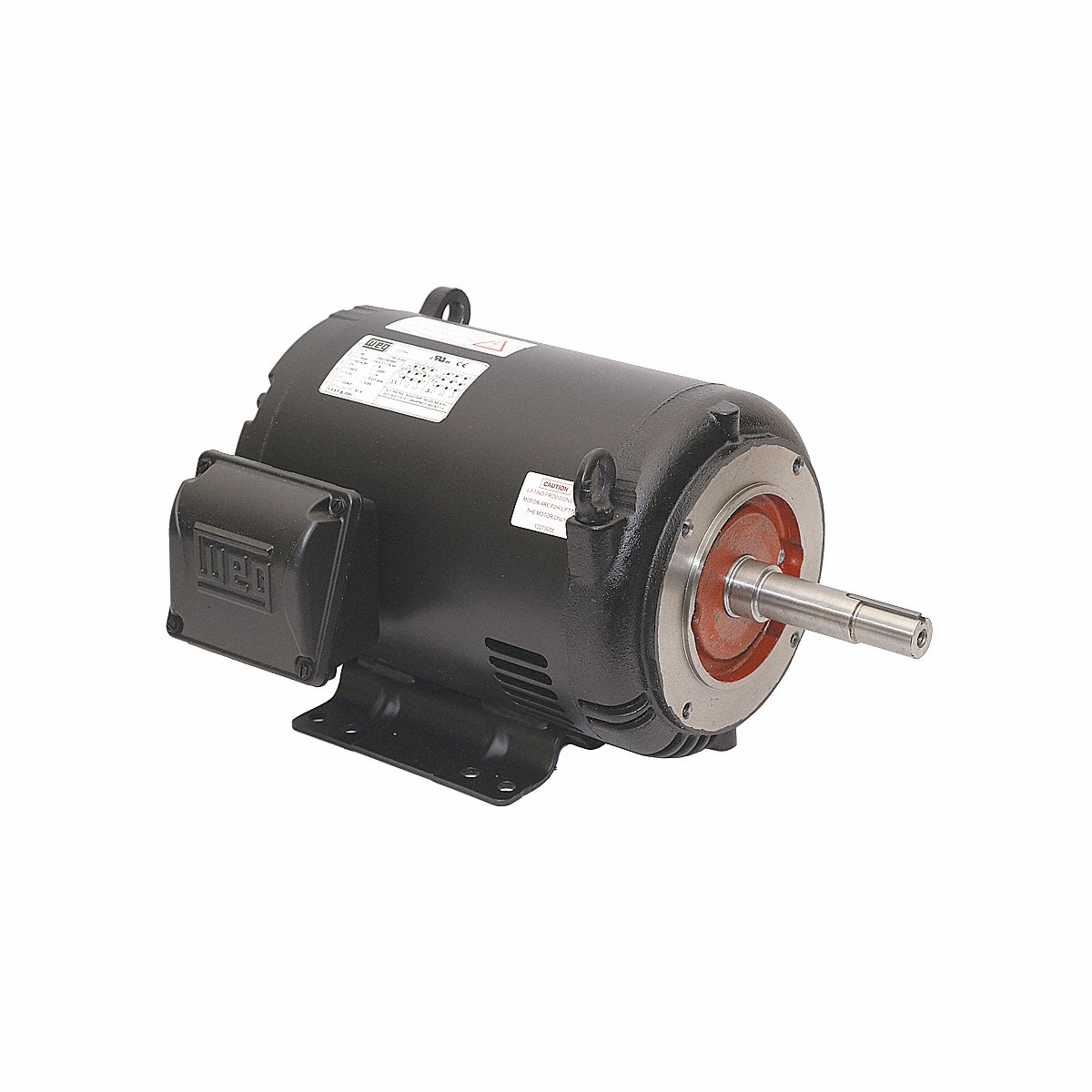

WEG 01518OT3E254JP-S 12794539 Pump Motor, 15 HP, 1800 RPM, 208/230/460V, ODP, 254/6JP, Footed, Close CoupLED Pump
Get it by Wednesday, Apr 1
5.00% off
€2,537.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Body Dia. | 12.1" |
| Bolt Circle Dia. | 7 1/4" |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 300% |
| Cc Number | CC029A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Connection Cables Quantity | 12 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 93% |
| Efficiency @ 100% | 93% |
| Efficiency @ 50% | 91.7% |
| Efficiency @ 75% | 92.4% |
| Efficiency Group | Premium |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame Material | Rolled Steel |
| Frame Size | 254/6JP |
| Frame Type | 254/6JP |
| Frequency | 60 Hz |
| Full Load Amps | 41.1-37.2/18.6A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Green Environmental Attribute | Does Not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic And Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acryl |
| Grounding Lugs | Superior |
| Hp | 15 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 1000:1 |
| L.r. Amperes | 125/249A |
| Locked Rotor Time (cold) | 30 sec. |
| Locked Rotor Time (hot) | 17 sec. |
| Locked Rotor Torque | 240% |
| Main Terminal Box Hole | 1.732" |
| Moment Of Inertia (j) | 1.82 lbs.-sq. ft. |
| Motor Application | Close Coupled Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | JP Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1775 RPM |
| Nema Design | B |
| No Load Amps | 9.5/19A |
| No. Of Speeds | 1 |
| Noise Level | 64 dBA |
| Number Of Poles | 4 |
| Output Rating | 15 hp |
| Overall Height | 12" |
| Overall Length | 24 13/16" |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.62 |
| Power Factor 75% | 0.73 |
| Power Factor_100% | 0.8 |
| Product Datasheet | weg-01518ot3e254jp-s.pdf |
| Rated Current | 18.6/37.2A |
| Rated Speed | 1775 RPM |
| Rated Torque | 44.4 lbs.-ft. |
| Regreasable Bearings | Yes |
| Regreasing System | At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 8 1/8" |
| Shaft Material | Carbon Steel |
| Slip | 1.39% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 190-220/230/380-415/460V , 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 99 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 63.02 |
| Ship width (cm) | 39.37 |
| HS code | 8501524000 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Hp | Rpm Range | Shaft Dia. | Motor Application | Nameplate Rpm | Frame Material | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00156OT3E143JP-S | 208-230/460V AC | 1 1/2 hp | 3001-3600 RPM | 7/8" | Pump | 3510 RPM | Rolled Steel | S1 | €866.98 | |
| 00158OT3E145JP-S | 208-230/460V AC | 1 1/2 hp | 1701-1800 RPM | 7/8" | Pump | 1760 RPM | Rolled Steel | S1 | €896.50 | |
| 00518OT3E184JP-S | 208-230/460V AC | 5 hp | 1701-1800 RPM | 7/8" | Pump | 1760 RPM | Rolled Steel | S1 | €1,119.75 | |
| 00718OT3E213JP-S | 208-230/460V AC | 7 1/2 hp | 1701-1800 RPM | 1 1/4" | Pump | 1770 RPM | Rolled Steel | S1 | €1,837.59 | |
| 01018OT3E215JP-S | 208-230/460V AC | 10 hp | 1701-1800 RPM | 1 1/4" | Pump | 1770 RPM | Rolled Steel | S1 | €1,843.54 | |
| 01536OT3E215JP-S | 208-230/460V AC | 15 hp | 3001-3600 RPM | 1 1/4" | Pump | 3535 RPM | Rolled Steel | S1 | €2,212.26 | |
| 02036OT3E254JP-S | 208-230/460V AC | 20 hp | 3001-3600 RPM | 1 1/4" | Pump | 3525 RPM | Rolled Steel | S1 | €2,775.87 |
