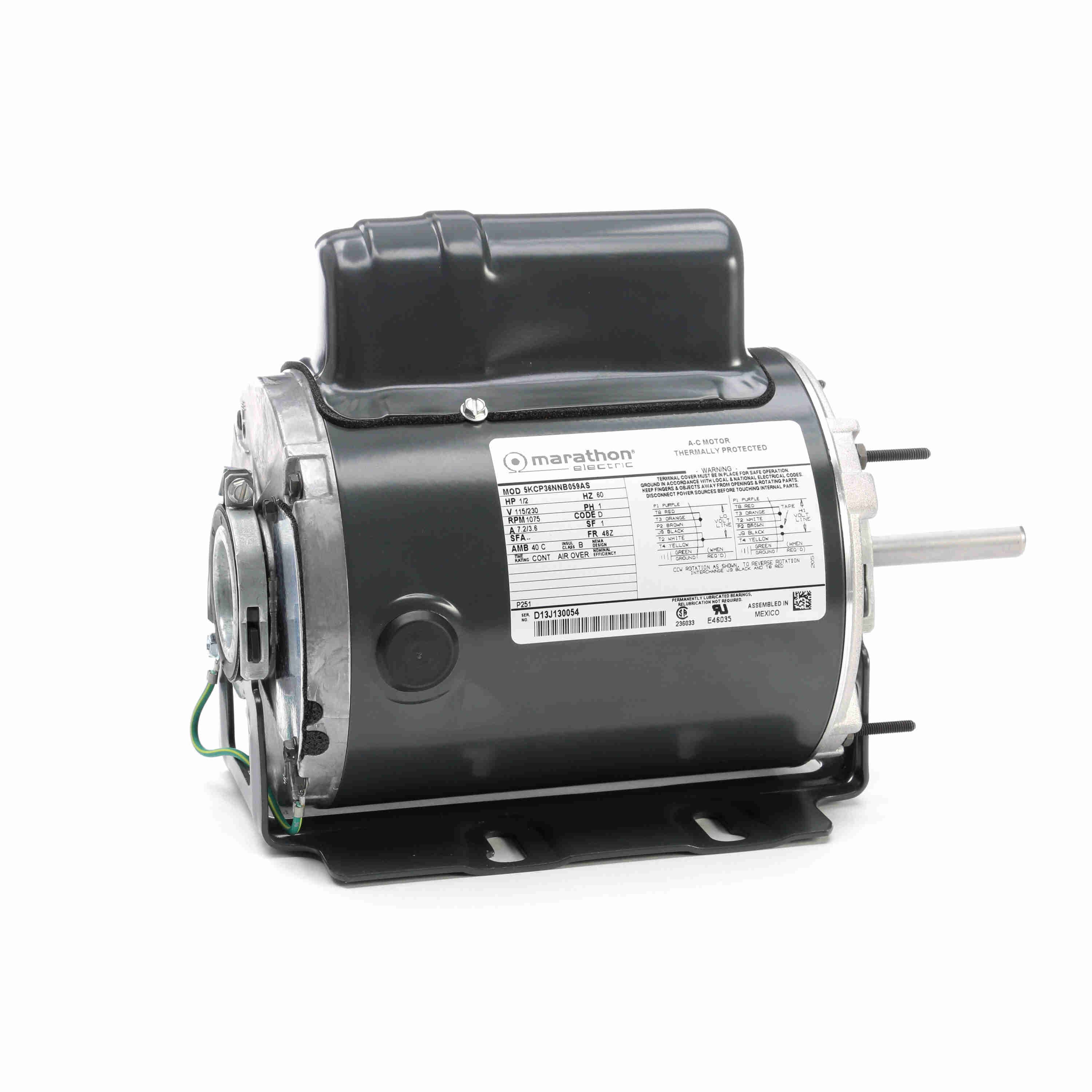

LEESON 5KCP36NNB059S P251 / 5KCP36NNB059AS General Purpose Farm Duty Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€252.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Frame | 48Z |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 7.2/3.6A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 8 1/2" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Stud Size | 3 5/8" x 3 5/8" |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1075 RPM |
| Nominal Efficiency | 57.1% |
| Number Of Speeds | 1 |
| Overall Length | 11" |
| Phase | 1 |
| Rpm Range | 1001-1100 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/2" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/230V AC |
| Weight | 18 lbs. |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.57 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Rpm Range | Nameplate Rpm | Motor Design | Frame | Motor Thermal Protection | Motor Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KHC39QN9575T | 115/208-230V AC | 1/4 hp | 1701-1800 RPM | 1725 RPM | Split-Phase | 48 | Auto | 1 | €273.49 | |
 |
5KH49MN6057S | 115V AC | 1/4 hp | 1101-1200 RPM | 1140 RPM | Split-Phase | 56 | Auto | 1 | €508.80 | |
 |
5KH33JNA500S | 115V AC | 1/3 hp | 1701-1800 RPM | 1725 RPM | Split-Phase | 48Z | Automatic | 1.35 | €266.17 | |
 |
5KH42JN0328S | 115/208-230V AC | 1/2 hp | 1701-1800 RPM | 1725 RPM | Split-Phase | 56 | Auto | 1 | €457.32 | |
 |
5KCR49SN0493S | 115/208-230V AC | 1 hp | 1701-1800 RPM | 1725 RPM | Capacitor Start/Run | 56 | Automatic | 1.3 | €543.50 | |
 |
5KCR49ZN0785S | 115/208-230V AC | 1 1/2 hp | 1701-1800 RPM | 1725.0 | Capacitor Start/Run | 56 | Automatic | 1.3 | €729.54 | |
 |
5KH32FNA499S | 115V AC | 1/4 hp | 1701-1800 RPM | 1725 RPM | Split-Phase | 48Z | Auto | 1 | €285.03 |
