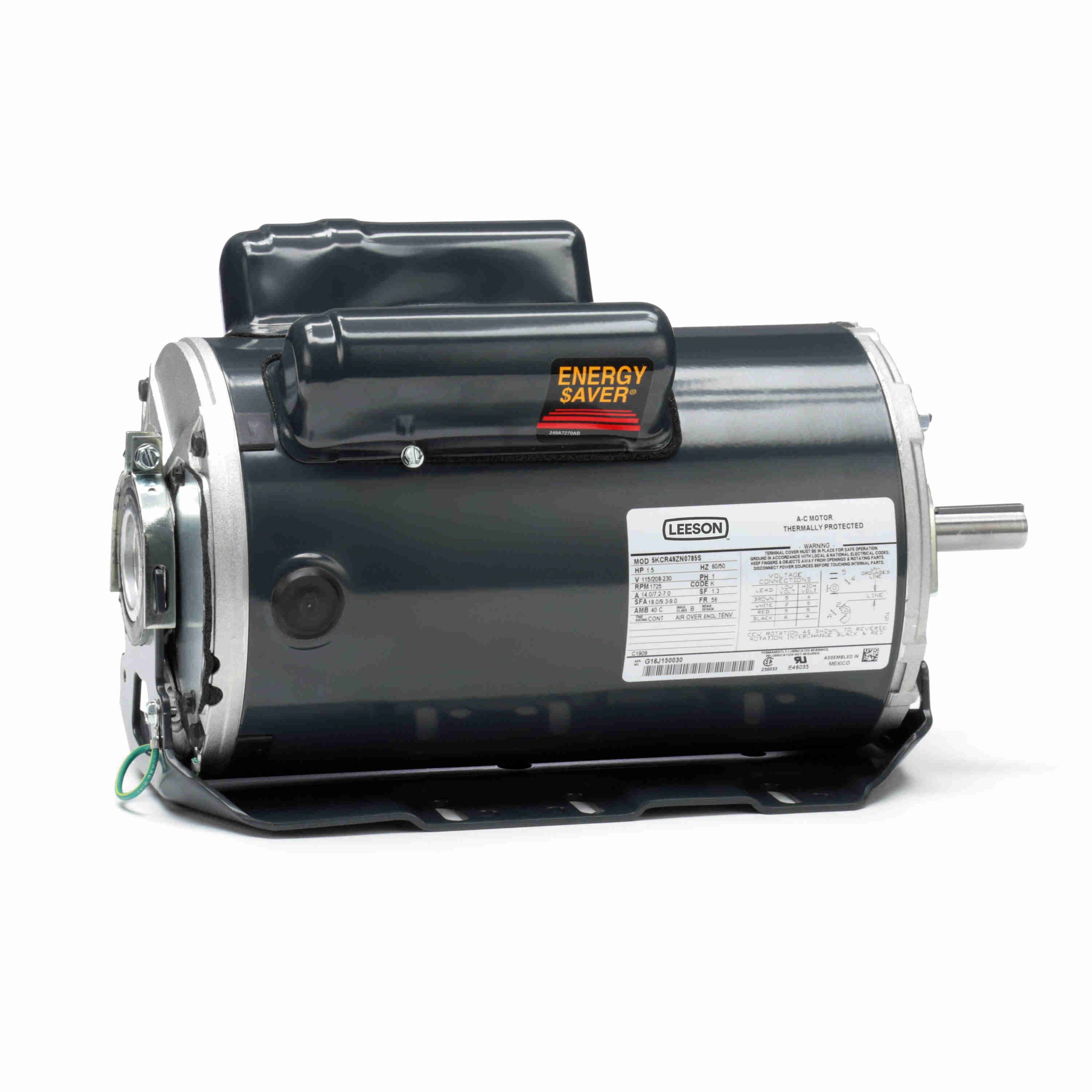

LEESON 5KCR49ZN0785S C1909 General Purpose Farm Duty Motor, 1.50 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Wednesday, Dec 24
10.00% off
€656.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Rolled Steel , Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 14/7-7.2A |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Keyway | 0.188" x 0.188" |
| Length Less Shaft | 12 1/16" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.3 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725.0 |
| Nominal Efficiency | 78.5% |
| Number Of Speeds | 1 |
| Overall Length | 13 15/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.3 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Type | Smooth |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Weight | 49 lbs. |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Rpm Range | Nameplate Rpm | Motor Design | Frame | Motor Thermal Protection | Motor Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KHC39QN9575T | 115/208-230V AC | 1/4 hp | 1701-1800 RPM | 1725 RPM | Split-Phase | 48 | Auto | 1 | €273.49 | |
 |
5KH49MN6057S | 115V AC | 1/4 hp | 1101-1200 RPM | 1140 RPM | Split-Phase | 56 | Auto | 1 | €508.80 | |
 |
5KH33JNA500S | 115V AC | 1/3 hp | 1701-1800 RPM | 1725 RPM | Split-Phase | 48Z | Automatic | 1.35 | €266.17 | |
 |
5KH42JN0328S | 115/208-230V AC | 1/2 hp | 1701-1800 RPM | 1725 RPM | Split-Phase | 56 | Auto | 1 | €457.32 | |
 |
5KCP36NNB059S | 115/230V AC | 1/2 hp | 1001-1100 RPM | 1075 RPM | Permanent Split Capacitor | 48Z | Auto | 1 | €280.72 | |
 |
5KCR49SN0493S | 115/208-230V AC | 1 hp | 1701-1800 RPM | 1725 RPM | Capacitor Start/Run | 56 | Automatic | 1.3 | €543.50 | |
 |
5KH32FNA499S | 115V AC | 1/4 hp | 1701-1800 RPM | 1725 RPM | Split-Phase | 48Z | Auto | 1 | €285.03 |
