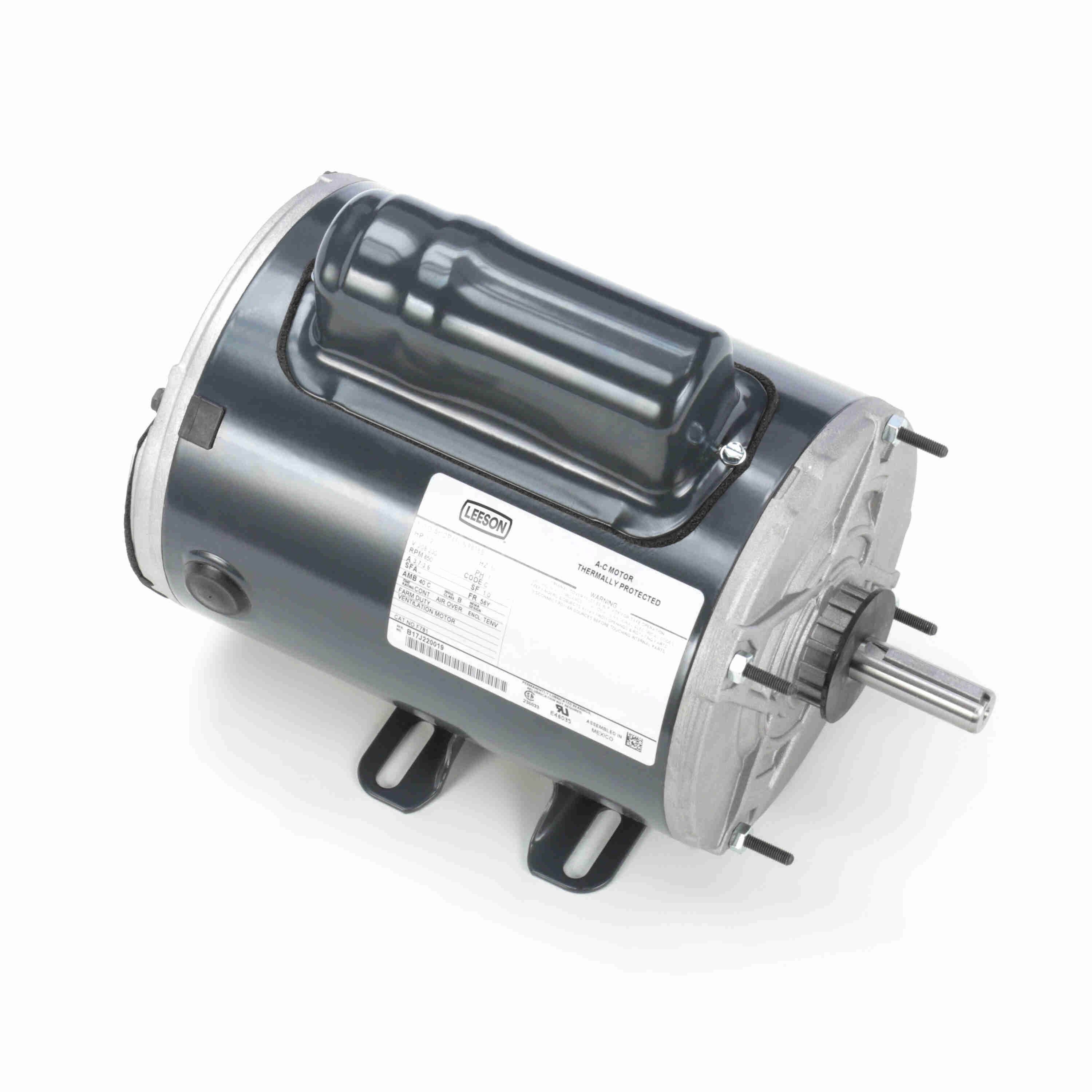

LEESON 5KCP49UN9838S F781 General Purpose Farm Duty Motor, 0.50 HP, 1 Phase, 60 Hz, 208-230V, 900 RPM
Get it by Tuesday, Aug 25
5.00% off
€502.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Color | Gray |
| Duty Cycle | Continuous |
| Efficiency | 57.5% |
| Efficiency Group | Standard |
| Frame | 56Y |
| Frame Material | Rolled Steel , Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.6-3.7A |
| Hp | 1/2 hp |
| Ins. Class | Class B |
| Length Less Shaft | 10" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Lead End |
| Motor Shaft Rotation | CCWLE |
| Motor Sub Application | Belt Drive Fan, Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Rigid Base |
| Nameplate Speed | 850 |
| No. Of Speed | 1 |
| Nominal Efficiency | 57.5% |
| Overall Length | 11 15/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 0-1000 RPM |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Shaft Design | Motor Thermal Protection | Motor Application | Motor Mounting Type | Motor Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KHC39QN9575T | 115/208-230V AC | 1/4 hp | 48 | Flat | Auto | Farm Duty | Cradle Base | 1 | €295.57 | |
 |
5KH49MN6057S | 115V AC | 1/4 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €508.80 | |
 |
5KH33JNA500S | 115V AC | 1/3 hp | 48Z | Flat | Automatic | Farm Duty | Cradle Base | 1.35 | €266.17 | |
 |
5KH42JN0328S | 115/208-230V AC | 1/2 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €473.27 | |
 |
5KCP36NNB059S | 115/230V AC | 1/2 hp | 48Z | Flat | Auto | Farm Duty | Cradle Base | 1 | €265.46 | |
 |
5KCP49UN9837S | 208-230V AC | 1/2 hp | 56Y | Keyed | Automatic | Farm Duty | Face | 1 | €433.09 | |
 |
5KCR49SN0493S | 115/208-230V AC | 1 hp | 56 | Keyed | Automatic | Farm Duty | Cradle Base | 1.3 | €543.50 |
