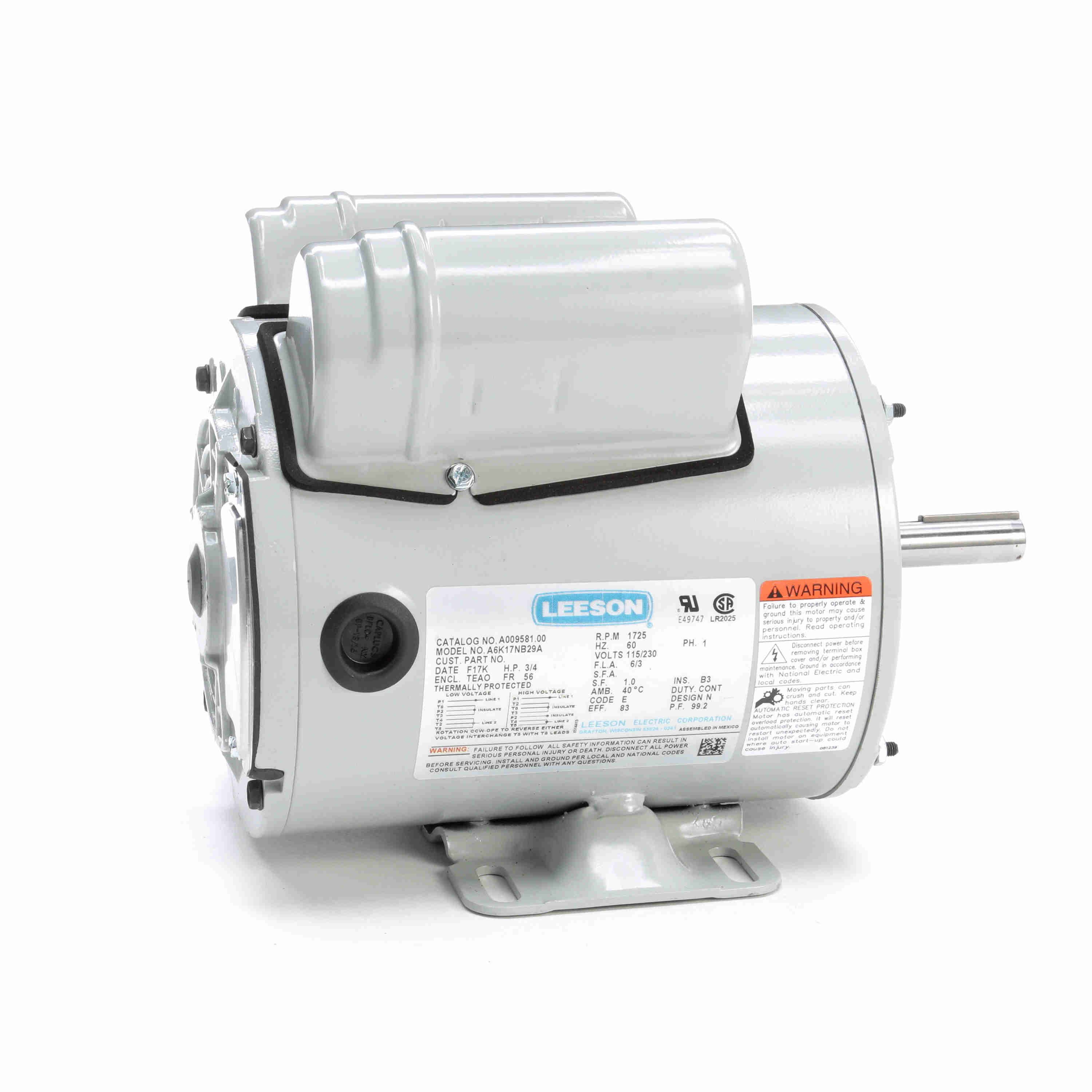

LEESON A009581.00 A6K17NB29A General Purpose Motor | AJ2UPD A6K17NB29A

LEESON A009581.00 A6K17NB29A Agricultural Motor, 0.75 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AJ2UPDModel: A009581.00Cross Ref: 820HK2 / A6K17NB29A
Check Availability
In Stock

Get it by Monday, May 18

€516.82 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Farm Duty Motor
Ambient Temp. 40°C
Amps 3/6A
Application Type Farm Duty Motors, Fan And Blower Motors, General Purpose HVAC Motors
Assembly/box Mounting F1 Only
Code E
Curvepoint Full Load
Design Code No
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 83%
Electrical Type Capacitor Start, Capacitor Run
Enclosure Type Teao
Frame 56
Frame Length 7 3/5"
Frame Material Rolled Steel
Frame Size 56
Frame Suffix Not Available
Frequency 60 Hz
Full Load Amps 6/3A
Grease Type Polyrex EM
Height 9.38"
Hp 3/4 hp
Insulation Class Class B
Ip Code 43
Kva Code E
Kw 0.56 kW
Length 15.82"
Load 1.15
Lubrication Polyrex EM
Material Rolled Steel
Max. Ambient Temp. 40°F
Motor Enclosure Design Totally Enclosed Air Over
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Mounting Type Rigid Base
Nameplate Rpm 1800 RPM
Nema Design E, N
Nema Rating NEMA 56
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.56 kW
Output Power 0.56 kW
Overall Length 10.94"
Packaging F
Phase 1
Power 0.56 kW
Power Factor 99.2
Product Datasheet leeson-a009581-00.pdf
Resistance Main 0 ohms
Rotation Type Selective CCW
Rpm 1725 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Special Features Capacitor Start Motors
Starting Method Across The Line
Synchronous Rpm 1800 RPM
Thermal Protection Automatic
Torque Rating 36.52 lbs.-ft.
Torquepct 100
Type KN
Variable Torque Speed Range 10
Voltage 115/230V AC
Voltage Rating 115/230V AC
Width 6.89"

Shipping Info:

Ship weight (kg) 13.41
Ship height (cm)23.83
Ship length (cm)40.18
Ship width (cm)31.9
Country of OriginMX

Product Details:

    • Supersedes Leeson - M009581.00 / A6K17NB15-A
    • Eff 100%: 83
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 92005-6
    • Winding: ZB4189
    • GROUP: 3
    • Paint: ORANGE

Documentation:

Datasheet
