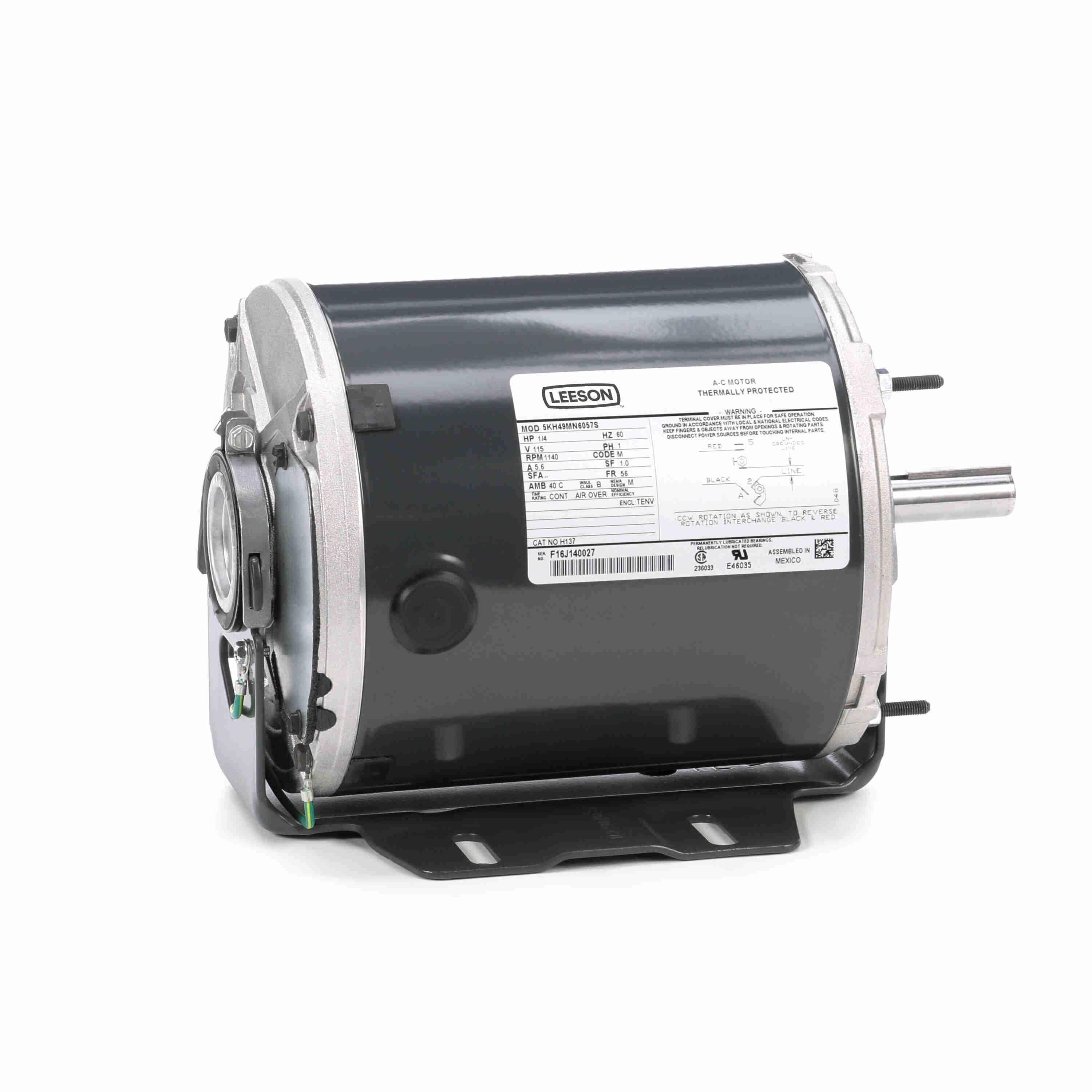

LEESON 5KH49MN6057S H137 General Purpose Farm Duty Motor, 0.25 HP, 1 Phase, 60 Hz, 115V, 1200 RPM
1/4 hp
56
Get it by Tuesday, May 19
€508.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.6A |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Keyway | 0.188" x 0.188" |
| Length Less Shaft | 8 5/8" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Stud Pattern | 4 3/16" x 4 3/16" |
| Mounting Stud Size | 4.188" x 4.188" |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1140 RPM |
| Nominal Efficiency | 53% |
| Number Of Speeds | 1 |
| Overall Length | 10 1/2" |
| Phase | 1 |
| Product Datasheet | leeson-5kh49mn6057s.pdf |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Type | Smooth |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501404040 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Phase | Nameplate Rpm | Motor Shaft Design | Motor Mounting Type | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KHC39QN9575T | 115/208-230V AC | 1/4 hp | 48 | 1 | 1725 RPM | Flat | Cradle Base | Auto | €273.49 | |
 |
5KH33JNA500S | 115V AC | 1/3 hp | 48Z | 1 | 1725 RPM | Flat | Cradle Base | Automatic | €266.17 | |
 |
5KH42JN0328S | 115/208-230V AC | 1/2 hp | 56 | 1 | 1725 RPM | Keyed | Cradle Base | Auto | €457.32 | |
 |
5KCP36NNB059S | 115/230V AC | 1/2 hp | 48Z | 1 | 1075 RPM | Flat | Cradle Base | Auto | €280.72 | |
 |
5KCP49UN9837S | 208-230V AC | 1/2 hp | 56Y | 1 | 850 RPM | Keyed | Face | Automatic | €433.09 | |
 |
5KCR49SN0493S | 115/208-230V AC | 1 hp | 56 | 1 | 1725 RPM | Keyed | Cradle Base | Automatic | €543.50 | |
 |
5KCR49ZN0785S | 115/208-230V AC | 1 1/2 hp | 56 | 1 | 1725.0 | Keyed | Cradle Base | Automatic | €729.54 |
