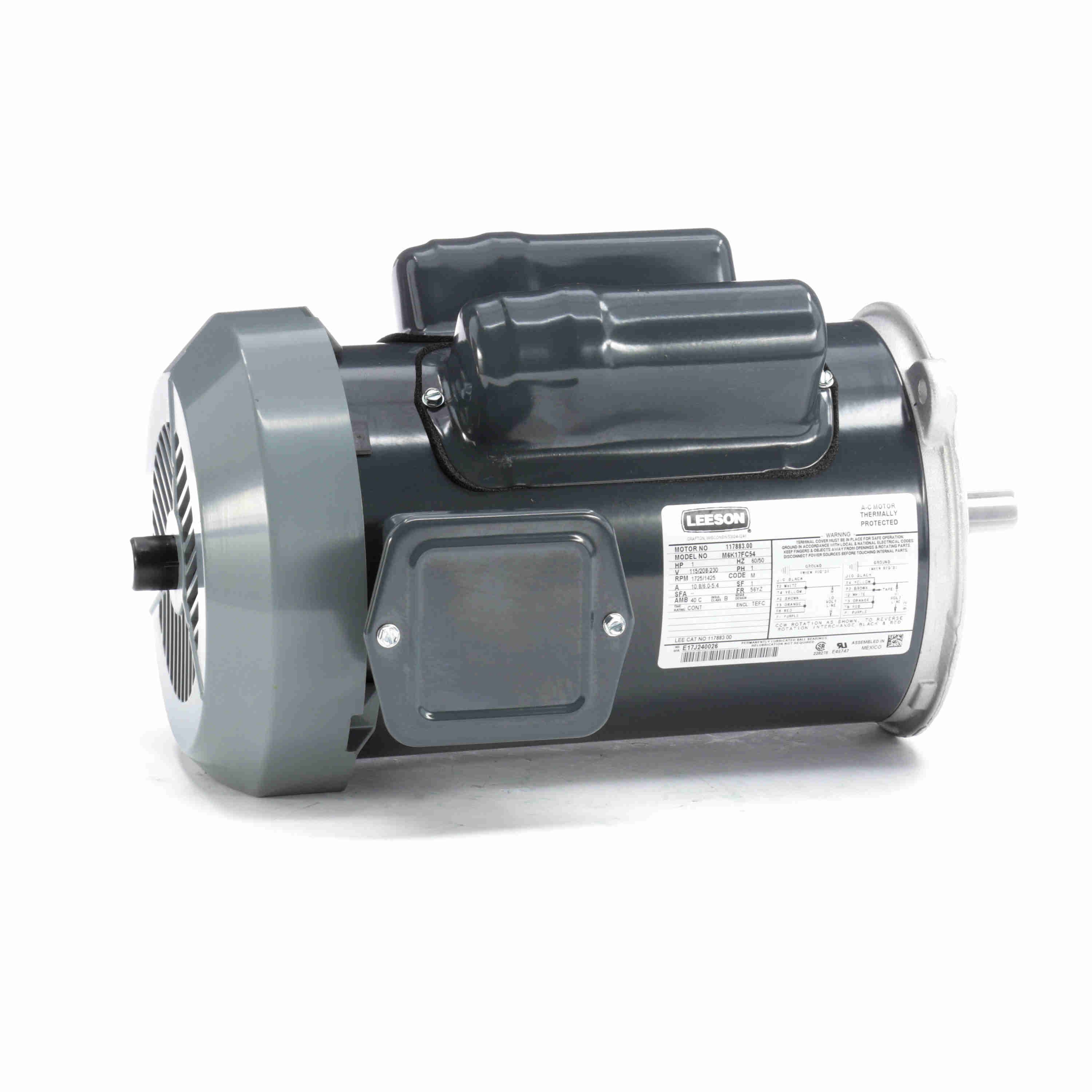

LEESON 117883.00 Auger Drive Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Wednesday, Apr 1
€506.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | 9/16" |
| Application | Farm Duty |
| De Bearing Size | 6203 |
| De Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | Tefc |
| Frame | 56YZ |
| Frame Material | Rolled Steel |
| Frame Type | 56YZ |
| Frequency | 60 Hz |
| Full Load Amps | 10.8/6.0-5.4A |
| Height | 9 1/2" |
| Hp | 1 hp |
| Hz | 60 Hz |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | M |
| Kw | 0.75 kW |
| Length | 19 1/4" |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 1725 RPM |
| Motor Application | Farm Duty |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face |
| Motor Orientation | Any |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Auger |
| Motor Thermal Protection | Manual |
| Mounting Type | Face |
| Nameplate Rpm | 1800 RPM |
| No. Of Phase | 1 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Phase | Single |
| Power Factor | 78.2 |
| Product Datasheet | leeson-117883-00.pdf |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Extension | 0.625" x 1.88"-1.50 Flat & 1.38 Key 90 Deg Apart |
| Starting Method | SM |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115-230V |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 48.9 |
| Ship width (cm) | 27.94 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Motor Shaft Design | Nameplate Rpm | Frame | Motor Enclosure Design | Motor Mounting Type | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

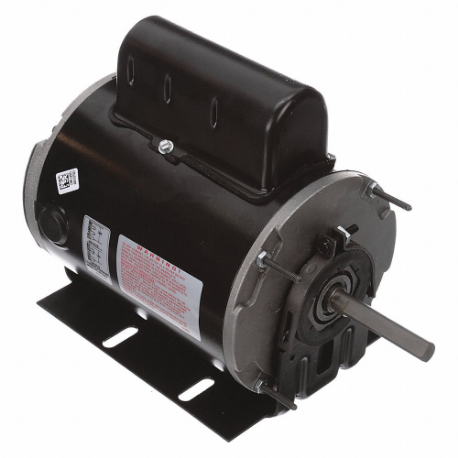

C039A | 115/230V AC | 1/2 hp | Double Flat | 825 RPM | F48Z | Totally Enclosed Air Over | Resilient Base | Single | €606.82 | |
 |

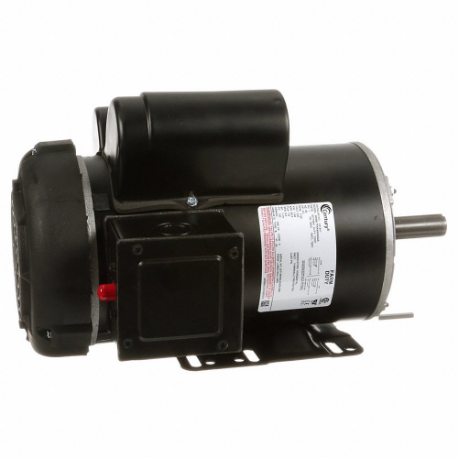

C319V1 | 230V AC | 2 hp | Keyed | 1725 RPM | 56HZ | Totally Enclosed Fan Cooled | Rigid Base | Single | €846.20 | |
 |

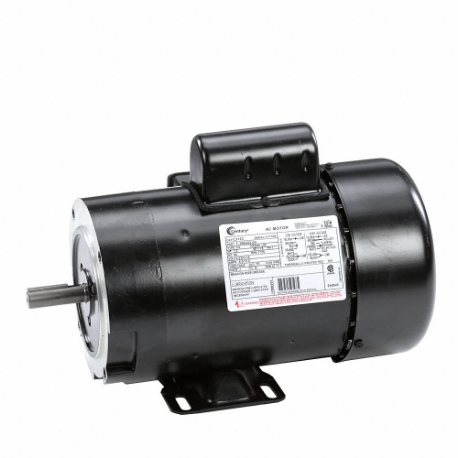

C313C | 115/230V AC | 1 hp | Keyed | 1725 RPM | L56 | Totally Enclosed Fan Cooled | Rigid Base | Single | €692.05 | |
 |

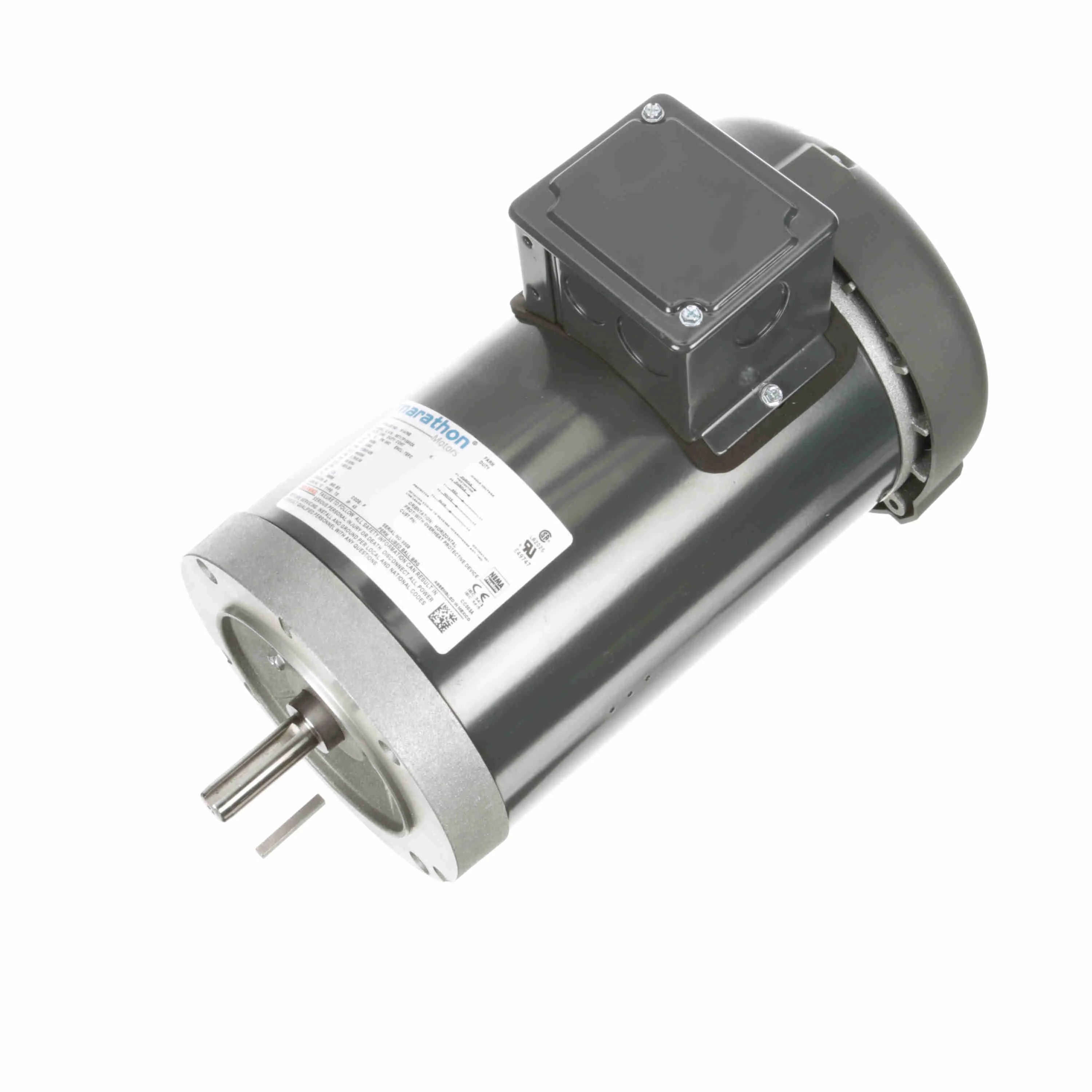

056T17F15902 | 460V AC | 1 hp | Keyed | 1725 RPM | 56C | Totally Enclosed Fan Cooled | Face | 3 | €801.13 | |
 |

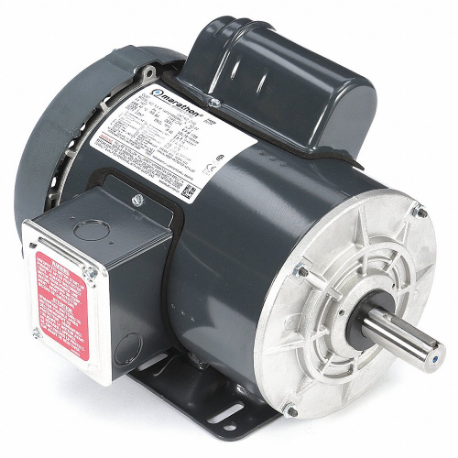

FD1CM2P14 | 115/230V AC | 1 hp | Keyed | 1725 RPM | 143T | Totally Enclosed Fan Cooled | Rigid Base | Single | €878.44 | |
 |

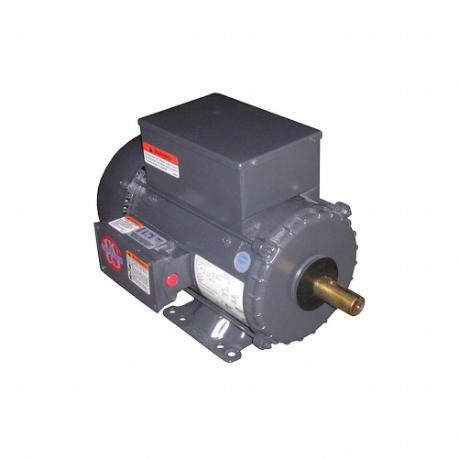

FD32CM2P14 | 115/230V AC | 1 1/2 hp | Keyed | - | 145T | Totally Enclosed Fan Cooled | - | - | €535.42 | |
|
FD34CM2P | 115/230V AC | 3/4 hp | Keyed | 1725 RPM | 56 | Totally Enclosed Fan Cooled | Rigid Base | Single | €445.79 |
