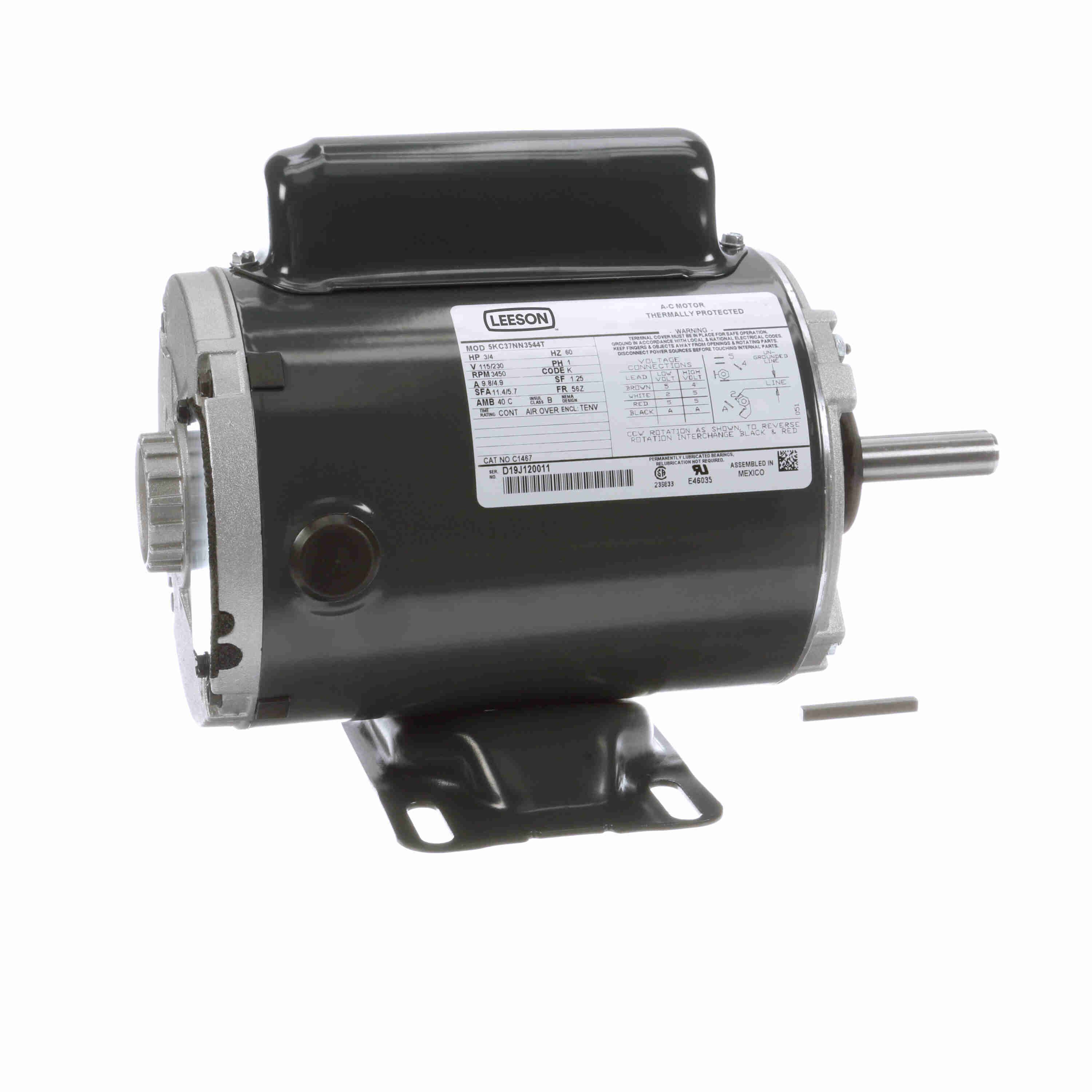

LEESON 5KC37NN3544T C1467 Aeration Fan Motor, 0.75 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Monday, Aug 24
€452.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Aeration Fan Motor |
| Ambient (c) | 40 |
| Application | Farm Duty |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 71.7% |
| Frame | 56Z |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 9.8/4.9A |
| Hp | 3/4 hp |
| Ins. Class | Class B |
| Length Less Shaft | 9" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Aeration Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Capacitor Start |
| Mounting Type | Wall Bracket |
| Nameplate Speed | 3450 RPM |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 71.7% |
| Overall Length | 11 1/4" |
| Phase | 1 |
| Product Datasheet | leeson-5kc37nn3544t.pdf |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 32.08 |
| Ship width (cm) | 17.63 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Switch and Mech
- KVA Code: K
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Shaft Design | Motor Thermal Protection | Motor Application | Motor Mounting Type | Motor Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KHC39QN9575T | 115/208-230V AC | 1/4 hp | 48 | Flat | Auto | Farm Duty | Cradle Base | 1 | €295.57 | |
 |
5KH49MN6057S | 115V AC | 1/4 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €508.80 | |
 |
5KH33JNA500S | 115V AC | 1/3 hp | 48Z | Flat | Automatic | Farm Duty | Cradle Base | 1.35 | €266.17 | |
 |
5KH42JN0328S | 115/208-230V AC | 1/2 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €473.27 | |
 |
5KCP36NNB059S | 115/230V AC | 1/2 hp | 48Z | Flat | Auto | Farm Duty | Cradle Base | 1 | €265.46 | |
 |
5KCP49UN9837S | 208-230V AC | 1/2 hp | 56Y | Keyed | Automatic | Farm Duty | Face | 1 | €433.09 | |
 |
5KCR49SN0493S | 115/208-230V AC | 1 hp | 56 | Keyed | Automatic | Farm Duty | Cradle Base | 1.3 | €543.50 |
