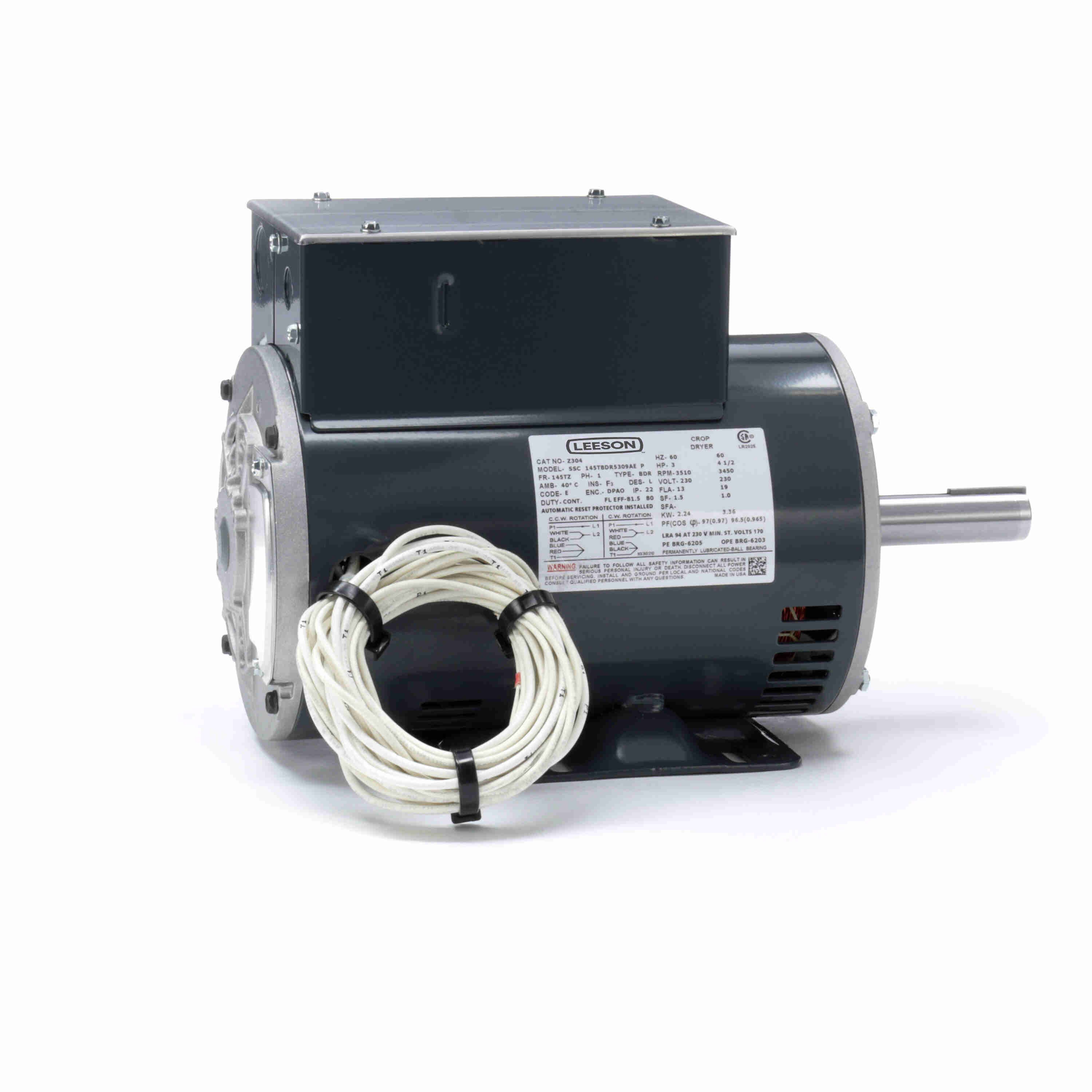

LEESON 145TBDR5309 145TBDR5309AE / Z304 Crop Dryer Motor, 3 and 4.50 HP, 1 Phase, 60 Hz, 230 and 230V, 3600 and 3600 RPM
Get it by Wednesday, Jul 1
5.00% off
€1,001.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Farm Duty Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Color | Gray |
| Duty Cycle | Continuous |
| Efficiency | 81.5% |
| Efficiency Group | Standard |
| Frame | 145TZ |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13A |
| Hp | 3 hp |
| Included | 34" Leads, Keyed Shaft With 1/4"-20 Tapped Hole |
| Insulation Class | Class F |
| Length Less Shaft | 10 11/16" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Enclosure Design | Open Dripproof Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.5 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Crop Dryer |
| Motor Thermal Protection | Automatic |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3510 RPM |
| No. Of Speed | 1 |
| Nominal Efficiency | 81.5% |
| Overall Length | 13 3/4" |
| Phase | 1 |
| Service Factor | 1.5 |
| Shaft Dia. | 7/8" |
| Shaft Length | 3" |
| Speed | 3001-3600 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Shaft Design | Motor Thermal Protection | Motor Application | Motor Mounting Type | Motor Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KHC39QN9575T | 115/208-230V AC | 1/4 hp | 48 | Flat | Auto | Farm Duty | Cradle Base | 1 | €295.57 | |
 |
5KH49MN6057S | 115V AC | 1/4 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €508.80 | |
 |
5KH33JNA500S | 115V AC | 1/3 hp | 48Z | Flat | Automatic | Farm Duty | Cradle Base | 1.35 | €266.17 | |
 |
5KH42JN0328S | 115/208-230V AC | 1/2 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €473.27 | |
 |
5KCP36NNB059S | 115/230V AC | 1/2 hp | 48Z | Flat | Auto | Farm Duty | Cradle Base | 1 | €265.46 | |
 |
5KCP49UN9837S | 208-230V AC | 1/2 hp | 56Y | Keyed | Automatic | Farm Duty | Face | 1 | €433.09 | |
 |
5KCR49SN0493S | 115/208-230V AC | 1 hp | 56 | Keyed | Automatic | Farm Duty | Cradle Base | 1.3 | €543.50 |
