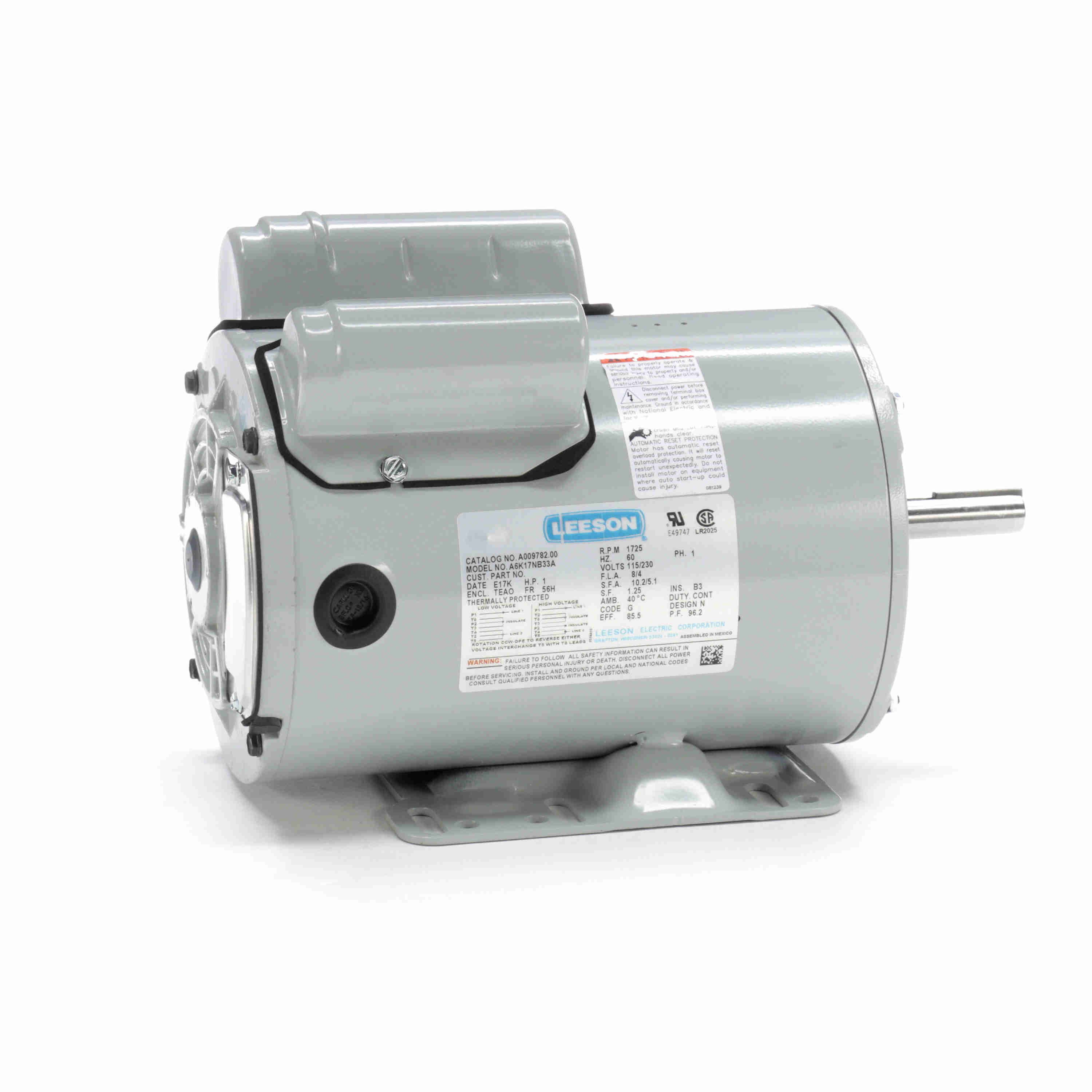

LEESON A009782.00 A6K17NB33A General Purpose Farm Duty Motor | AJ2UPH A6K17NB33A

LEESON A009782.00 A6K17NB33A Agricultural Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AJ2UPHModel: A009782.00Cross Ref: 820HK6 / A6K17NB33A
Check Availability
In Stock
HP
Frame

Get it by Tuesday, May 19

€541.59 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Farm Duty Motor
Ambient Temp. 40°C
Amps 4/8A
Application Type Farm Duty Motors, Fan And Blower Motors, General Purpose HVAC Motors
Assembly/box Mounting F1 Only
Code G
Curvepoint Pull Up
Design Code No
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 85.5%
Electrical Type Capacitor Start, Capacitor Run
Enclosure Type Teao
Frame 56H
Frame Length 8 14/25"
Frame Material Rolled Steel
Frame Size 56H
Frame Suffix H
Frequency 60 Hz
Full Load Amps 4/8A
Height 9.38"
Hp 1 hp
Insulation Class Class B
Ip Code 43
Kva Code G
Kw 0.75 kW
Length 15.82"
Load 0.5
Material Rolled Steel
Max. Ambient Temp. 40°F
Motor Enclosure Design Totally Enclosed Air Over
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Mounting Type Rigid Base
Nameplate Rpm 1800 RPM
Nema Design G, N
Nema Rating NEMA 56
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.75 kW
Output Power 0.75 kW
Overall Length 12 11/25"
Packaging F
Phase 1
Power 0.75 kW
Power Factor 96.2
Product Datasheet leeson-a009782-00.pdf
Resistance Main 0 ohms
Rotation Type Selective CCW
Rpm 1725 RPM
Service Factor 1.25
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Special Features Capacitor Start Motors
Starting Method Across The Line
Synchronous Rpm 1800 RPM
Thermal Protection Automatic
Torque 68 lbs.-ft.
Torque Rating 48.7 lbs.-ft.
Torquepct 132
Type KN
Variable Torque Speed Range 10
Voltage 115/230V AC
Voltage Rating 115/230V AC
Width 6.9"

Shipping Info:

Ship weight (kg) 20.83
Ship height (cm)23.83
Ship length (cm)40.18
Ship width (cm)31.9
Country of OriginMX

Product Details:

    • Supersedes Leeson - M009782.00 / A6K17NB17-A
    • Eff 100%: 85.5
    • Eff 75%: 85.7
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 92005-6
    • Winding: ZB4188
    • GROUP: 3
    • Paint: GRAY - LIGHT
    • S. F Amps: 10.2 / 5.1

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpFramePhaseNameplate RpmMotor Shaft DesignMotor Mounting TypeMotor Thermal ProtectionPrice
MARATHON MOTORS 5KHC39QN9575T Farm Duty Motor Split Phase Tenv 1/4hp 1725rpm | AC2GGW 2K349 / H649 5KHC39QN9575T115/208-230V AC1/4 hp4811725 RPMFlatCradle BaseAuto€273.49
MARATHON MOTORS 5KH49MN6057S Farm Duty Motor Split Phase Tenv 1/4hp 1140rpm | AC6EZD 33L617 / H137 5KH49MN6057S115V AC1/4 hp5611140 RPMKeyedCradle BaseAuto€508.80
MARATHON MOTORS 5KH33JNA500S Farm Duty Motor Split Phase Tenv 1/3hp 1725rpm | AC6EZE 33L618 / X1904 5KH33JNA500S115V AC1/3 hp48Z11725 RPMFlatCradle BaseAutomatic€266.17
MARATHON MOTORS 5KH42JN0328S Farm Duty Motor Split Phase Tenv 1/2hp 1725rpm | AC6EZG 33L620 / H247 5KH42JN0328S115/208-230V AC1/2 hp5611725 RPMKeyedCradle BaseAuto€457.32
MARATHON MOTORS 5KCP36NNB059S Farm Duty Motor Psc Tenv 1/2 Hp 1075 Rpm | AC6EZH 33L621 / P251 5KCP36NNB059S115/230V AC1/2 hp48Z11075 RPMFlatCradle BaseAuto€280.72
MARATHON MOTORS 5KCP49UN9837S Farm Duty Motor Psc Tenv 1/2 Hp 850 Rpm | AC6EZJ 33L622 / F780 5KCP49UN9837S208-230V AC1/2 hp56Y1850 RPMKeyedFaceAutomatic€433.09
MARATHON MOTORS 5KCR49SN0493S Farm Duty Motor Capacitor Start Tenv 1hp 1725 Rpm | AC6EZL 33L624 / C1315 5KCR49SN0493S115/208-230V AC1 hp5611725 RPMKeyedCradle BaseAutomatic€543.50
