LEESON

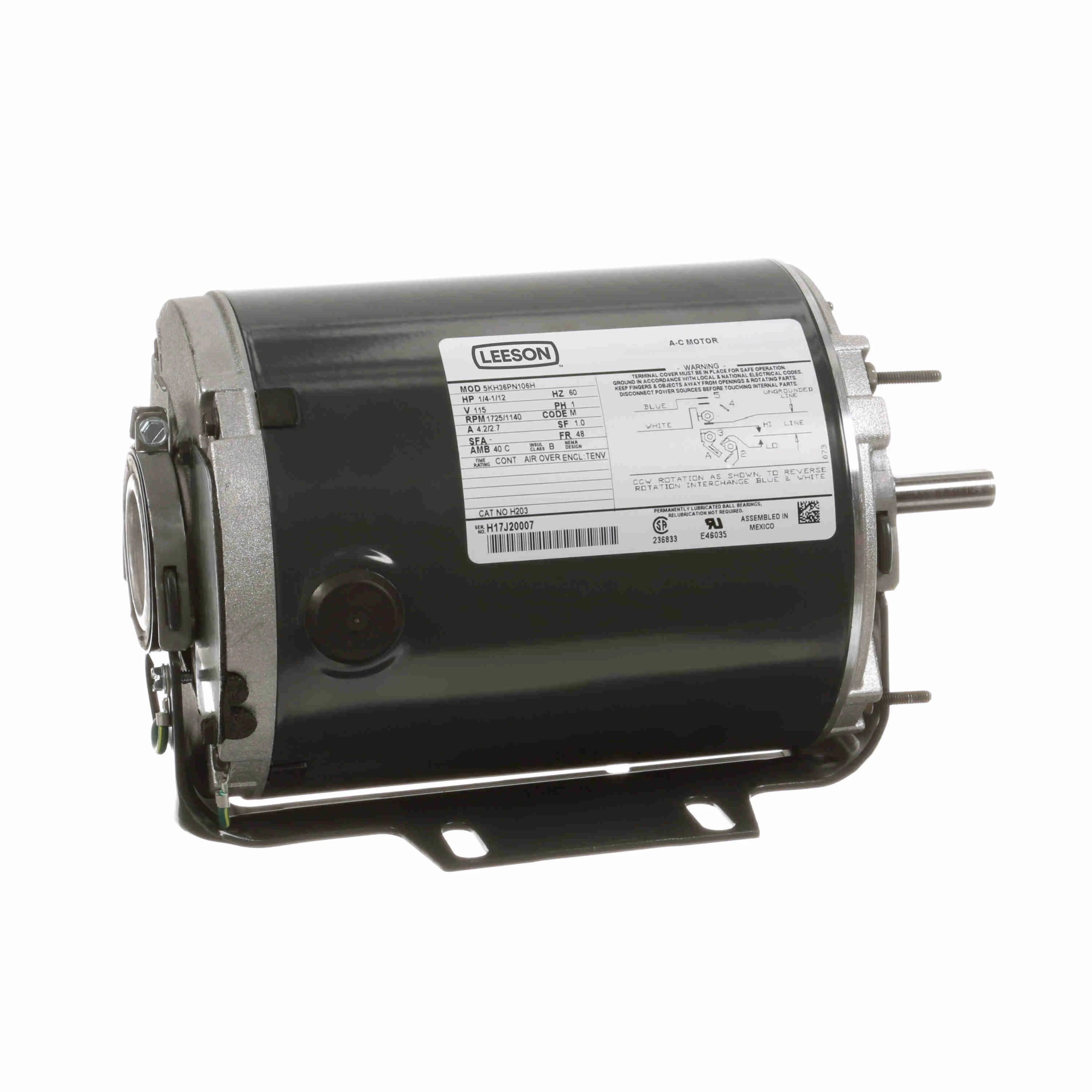

LEESON 5KH36PN106 5KH36PN106H / H203 General Purpose Farm Duty Motor, 1/4-1/12 HP, 1 Phase, 60 Hz, 115 V, 1800 RPM, 48 Frame

Item: EC3KTPModel: 5KH36PN106Cross Ref: 5KH36PN106H / H203

In Stock

1/4 hp, 1/12 hp

Frame

Get it by Thursday, Jul 9

€367.78 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Electric Motor
Ambient	40
Application	Farm Duty
Bearing Type	Ball
Color	Gray
Duty Cycle	Continuous
Efficiency	58%
Efficiency Group	Standard
Finish	Paint
Frame	48
Frame Material	Steel
Frequency	60 Hz
Full Load Amps	4.2/2.7A
Hp	1/4 hp, 1/12 hp
Length Less Shaft	8 1/2"
Max. Ambient Temp.	40°C
Motor Application	Poultry Fans
Motor Enclosure Design	Totally Enclosed Non Ventilated
Motor Mounting Position	All Angle
Motor Shaft Design	Flat
Motor Shaft Rotation	CW, CCW
Motor Sub Application	Direct Drive Fan, Blower
Motor Thermal Protection	No
Motor Type	Split Phase
Mounting Stud Size	3 5/8" x 3 5/8"
Mounting Type	Cradle Base
Nameplate Speed	1725/1140 RPM
No. Of Speed	2
Nominal Efficiency	58%
Overall Length	10"
Phase	1
Service Factor	1.0
Shaft Dia.	1/2"
Shaft Length	1 1/2"
Shaft Type	Flat
Speed	1701-1800 RPM
Stud Size	#8-32
Thermal Protection	None
Usable @ 200v	No
Usable @ 208v	No
Voltage	115V AC

Model	Voltage	Hp	Frame	Motor Shaft Design	Motor Thermal Protection	Motor Application	Motor Mounting Type	Motor Service Factor	Price
5KHC39QN9575T	115/208-230V AC	1/4 hp	48	Flat	Auto	Farm Duty	Cradle Base	1	€295.57
5KH49MN6057S	115V AC	1/4 hp	56	Keyed	Auto	Farm Duty	Cradle Base	1	€508.80
5KH33JNA500S	115V AC	1/3 hp	48Z	Flat	Automatic	Farm Duty	Cradle Base	1.35	€266.17
5KH42JN0328S	115/208-230V AC	1/2 hp	56	Keyed	Auto	Farm Duty	Cradle Base	1	€473.27
5KCP36NNB059S	115/230V AC	1/2 hp	48Z	Flat	Auto	Farm Duty	Cradle Base	1	€265.46
5KCP49UN9837S	208-230V AC	1/2 hp	56Y	Keyed	Automatic	Farm Duty	Face	1	€433.09
5KCR49SN0493S	115/208-230V AC	1 hp	56	Keyed	Automatic	Farm Duty	Cradle Base	1.3	€543.50
