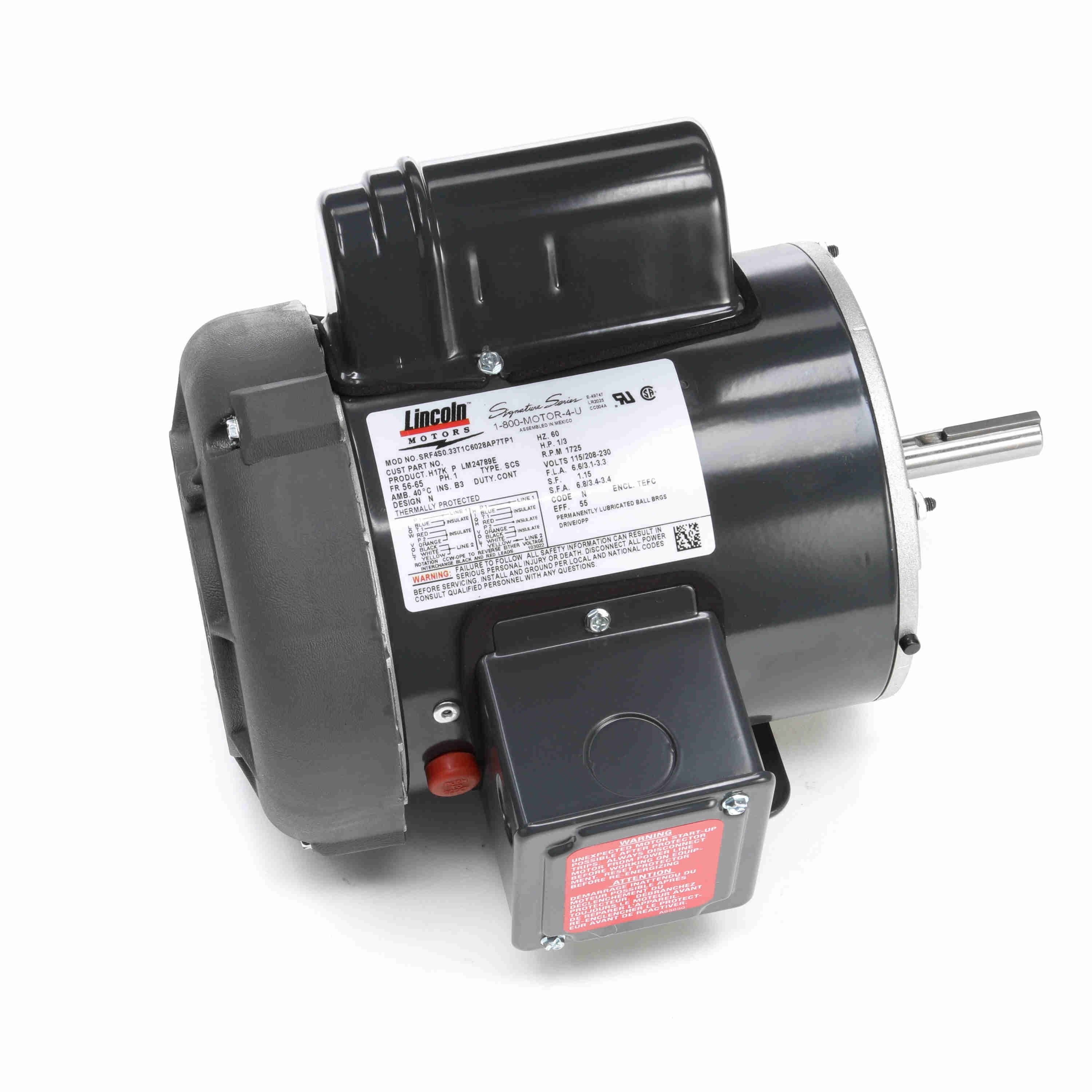

LEESON LM24789 SRF4S0.33T1C6028AP7TP1 General Purpose Farm Duty Motor | AJ2WBN SRF4S0.33T1C6028AP7TP1

LEESON LM24789 SRF4S0.33T1C6028AP7TP1 Agricultural Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AJ2WBNModel: LM24789Cross Ref: SRF4S0.33T1C6028AP7TP1
Check Availability
In Stock
HP
Frame

Get it by Tuesday, May 19

€351.56 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Farm Duty Motor
Ambient Temp. 40°C
Amps 3.3/6.6A
Assembly/box Mounting F1 Only
Code No
Code N
Curvepoint Locked Rotor
Design Code No
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 55%
Efficiency @ 100% 55%
Electrical Type Capacitor Start, Induction Run
Enclosure Type Tefc
Frame 56
Frame Length 6 14/25"
Frame Material Rolled Steel
Frame Size 56
Frame Suffix Not Available
Frequency 60 Hz
Full Load Amps 3.1-3.3A
Grease Type Polyrex EM
Hazardous Location Not Available
Height 9 3/25"
Hp 33/100 hp
Insulation Class Class B
Ip Code 43
Kw 0.25 kW
Length 16 3/25"
Load 2
Lubrication Standard
Max. Ambient Temp. 40°F
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start/Induction Run
Mounting Type Rigid
Nameplate Rpm 1800 RPM
Nema Design N
Nema Rating NEMA 56
No. Of Poles 4
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Outline A-100137LN-656
Output Kw 0.25 kW
Output Power 0.246 kW
Overall Length 11.82"
Packaging B
Phase 1
Power 0.246 kW
Power Factor 60
Product Datasheet leeson-lm24789.pdf
Resistance Main 0 ohms
Rotation Type Selective CCW
Rpm 1725 RPM
Service Factor 1.15
Service Factor Amps 3.4A
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Speed Range Not Available
Starting Method Across The Line
Synchronous Rpm 1800 RPM
Thermal Protection Manual
Torque 55.7 lbs.-ft.
Torquepct 348
Type SCS
Voltage 115/208-230V
Winding ZC406

Shipping Info:

Ship weight (kg) 10.8
Ship height (cm)23.16
Ship length (cm)40.94
Ship width (cm)26.04
Country of OriginMX

Product Details:

    • Eff 100%: 55
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Winding: ZC406
    • GROUP: 3
    • Paint: GRAY (POWDER)
    • S. F Amps: 6.8 / 3.4-3.4

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpFramePhaseNameplate RpmMotor Shaft DesignMotor Mounting TypeMotor Thermal ProtectionPrice
MARATHON MOTORS 5KHC39QN9575T Farm Duty Motor Split Phase Tenv 1/4hp 1725rpm | AC2GGW 2K349 / H649 5KHC39QN9575T115/208-230V AC1/4 hp4811725 RPMFlatCradle BaseAuto€273.49
MARATHON MOTORS 5KH49MN6057S Farm Duty Motor Split Phase Tenv 1/4hp 1140rpm | AC6EZD 33L617 / H137 5KH49MN6057S115V AC1/4 hp5611140 RPMKeyedCradle BaseAuto€508.80
MARATHON MOTORS 5KH33JNA500S Farm Duty Motor Split Phase Tenv 1/3hp 1725rpm | AC6EZE 33L618 / X1904 5KH33JNA500S115V AC1/3 hp48Z11725 RPMFlatCradle BaseAutomatic€266.17
MARATHON MOTORS 5KH42JN0328S Farm Duty Motor Split Phase Tenv 1/2hp 1725rpm | AC6EZG 33L620 / H247 5KH42JN0328S115/208-230V AC1/2 hp5611725 RPMKeyedCradle BaseAuto€457.32
MARATHON MOTORS 5KCP36NNB059S Farm Duty Motor Psc Tenv 1/2 Hp 1075 Rpm | AC6EZH 33L621 / P251 5KCP36NNB059S115/230V AC1/2 hp48Z11075 RPMFlatCradle BaseAuto€280.72
MARATHON MOTORS 5KCP49UN9837S Farm Duty Motor Psc Tenv 1/2 Hp 850 Rpm | AC6EZJ 33L622 / F780 5KCP49UN9837S208-230V AC1/2 hp56Y1850 RPMKeyedFaceAutomatic€433.09
MARATHON MOTORS 5KCR49SN0493S Farm Duty Motor Capacitor Start Tenv 1hp 1725 Rpm | AC6EZL 33L624 / C1315 5KCR49SN0493S115/208-230V AC1 hp5611725 RPMKeyedCradle BaseAutomatic€543.50
