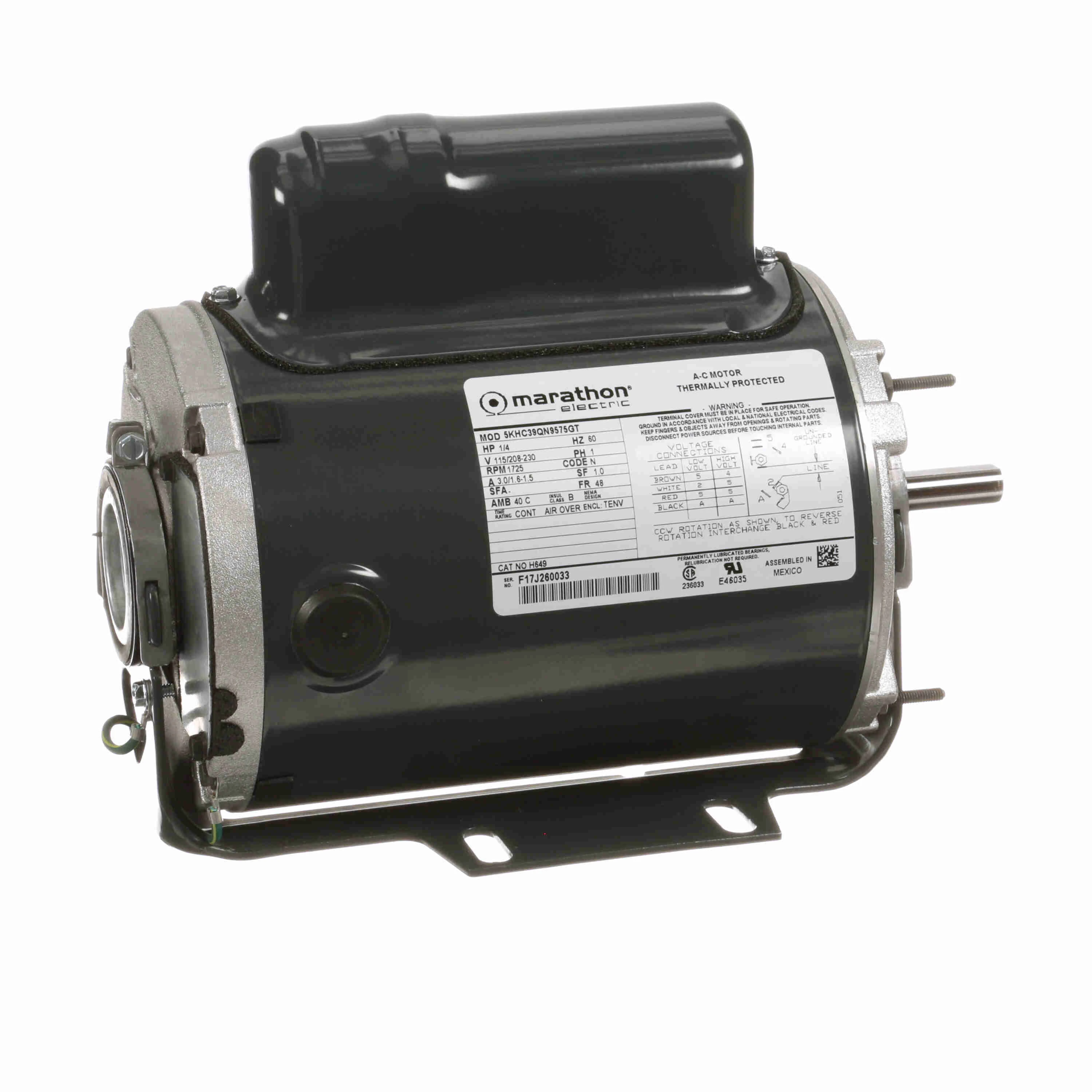

LEESON 5KHC39QN9575T 5KHC39QN9575GT / H649 General Purpose Farm Duty Motor, 0.25 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
1/4 hp
48
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€280.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3/1.5-1.6A |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Length Less Shaft | 8 7/8" |
| Max. Ambient Temp. | 40°C |
| Max. Ambient Temperature | 40 Degrees C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Split Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan, Blower |
| Motor Thermal Protection | Auto |
| Mounting Stud Pattern | 3 5/8" x 3 5/8" |
| Mounting Stud Size | 3 5/8" x 3 5/8" |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| Nominal Efficiency | 68% |
| Overall Length | 10 3/8" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Speed | 1701-1800 RPM |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Shaft Design | Motor Thermal Protection | Motor Application | Motor Mounting Type | Motor Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH49MN6057S | 115V AC | 1/4 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €508.80 | |
 |
5KH33JNA500S | 115V AC | 1/3 hp | 48Z | Flat | Automatic | Farm Duty | Cradle Base | 1.35 | €266.17 | |
 |
5KH42JN0328S | 115/208-230V AC | 1/2 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €473.27 | |
 |
5KCP36NNB059S | 115/230V AC | 1/2 hp | 48Z | Flat | Auto | Farm Duty | Cradle Base | 1 | €265.46 | |
 |
5KCP49UN9837S | 208-230V AC | 1/2 hp | 56Y | Keyed | Automatic | Farm Duty | Face | 1 | €433.09 | |
 |
5KCR49SN0493S | 115/208-230V AC | 1 hp | 56 | Keyed | Automatic | Farm Duty | Cradle Base | 1.3 | €543.50 | |
 |
5KCR49ZN0785S | 115/208-230V AC | 1 1/2 hp | 56 | Keyed | Automatic | Farm Duty | Cradle Base | 1.3 | €809.19 |
