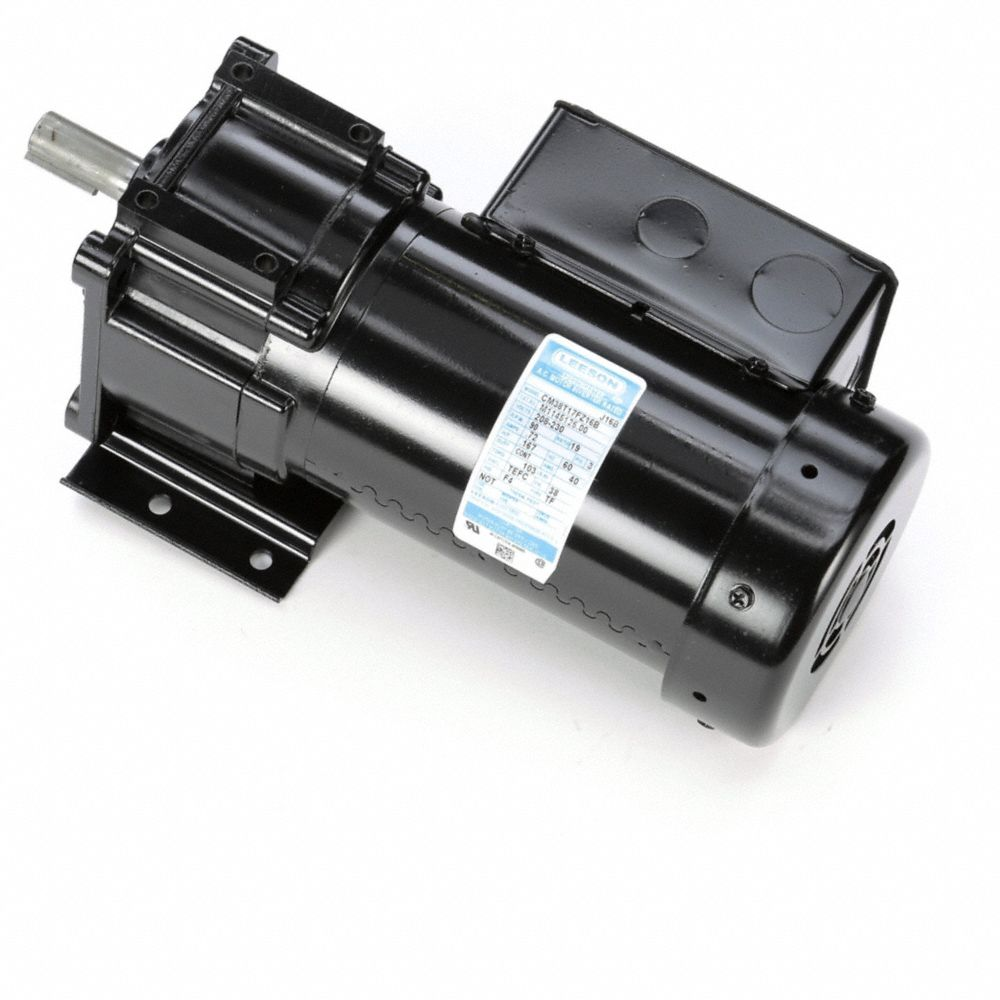

LEESON M1145125.00 CM38T17FZ16B AC Gearmotor, Parallel, Single Output Shaft, 3-Phase, TEFC, 90 RPM, 103 Inch-lb Max Torque
1/6 hp
90 RPM
Get it by Tuesday, Aug 18
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,147.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Brake Type | None |
| Gear Ratio | 19:1 |
| Inverter Rated | Yes |
| Max. Torque | 103 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Type | 3-Phase |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Nameplate | 76-100 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 208-230V AC |
| Output Shaft Height | 3.51" |
| Overhung Load Capacity | 237 lbs. |
| Product Datasheet | leeson-m1145125-00.pdf |
| Rotation | CW, CCW |
| Shaft Orientation | Parallel |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Full Load Amps | Frequency | Voltage | Mounting | Overhung Load Capacity | Nameplate Speed | Output Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145122.00 | 3 | 0.72A | 50/60 Hz | 190V | All Position Except Shaft Up | 237 lbs.-ft. | 16 RPM | 5/8" | €1,366.90 | |
 |
096065.00 | 3 | 1/0.5A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 9 RPM | 3/4" | €1,297.11 | |
 |
096066.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 29 RPM | 3/4" | €936.95 | |
 |
096067.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 58 RPM | 3/4" | €936.95 | |
 |
096068.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 85 RPM | 3/4" | €1,137.02 | |
 |
096069.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 173 RPM | 3/4" | €1,240.08 | |
 |
096070.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 345 RPM | 3/4" | €926.85 |
