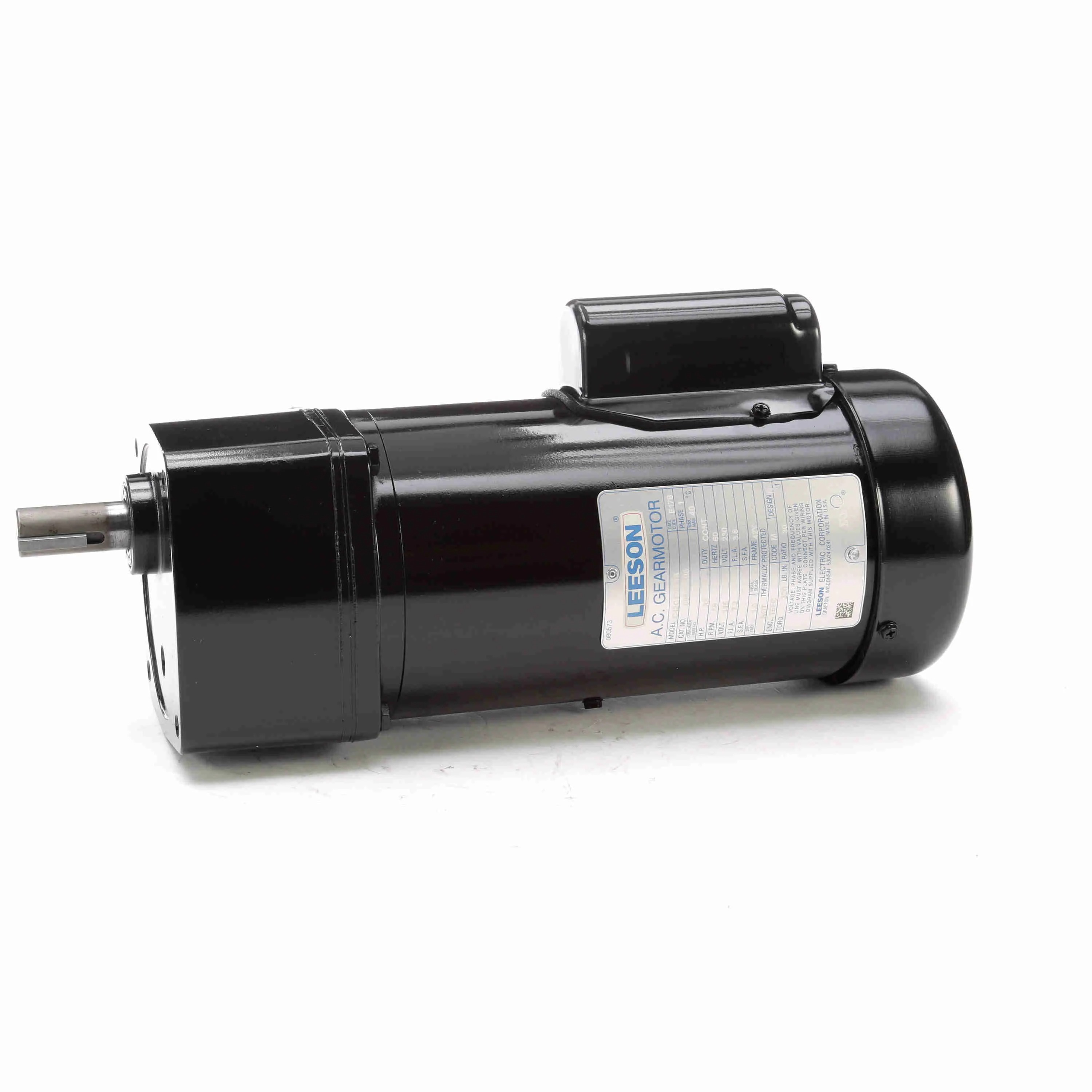

LEESON 096049.00 C42C17FZ4B Parallel Shaft Gearmotor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 58 RPM
Get it by Tuesday, Dec 23
€1,176.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 7.2/3.6A |
| Bearing Type | Needle |
| Brake Type | None |
| Capacitor Required | Yes |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame Length | 7 1/2" |
| Frame Type | 42Y |
| Frequency | 60 Hz |
| Full Load Amps | 7.2/3.6A |
| Gear Ratio | 30:1 |
| Height | 10 22/25" |
| Housing Material | Die Cast Aluminum |
| Hp | 33/100 hp |
| Includes | Conduit Box |
| Includes Capacitor | Yes |
| Includes Junction/conduit Box | Yes |
| Input Horsepower | 0.33 hp |
| Input Hp | 33/100 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kva Code | M |
| Kw | 0.25 kW |
| Length | 19 1/2" |
| Length Less Shaft | 12.57" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 104°F |
| Max. Torque | 320 lbs.-in. |
| Maximum Output Speed | 58 RPM |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 42Y |
| Motor Insulation Class | Class F |
| Motor Type | Capacitor-Start |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting Orientation | Horizontalvertical With Shaft Down |
| Mounting Type | Horizontal, Vertical Shaft Down |
| Nameplate Rpm | 58 RPM |
| Nameplate Rpm Range | 51-75 RPM |
| No. Of Phase | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Opp. Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Dia. | 3/4" |
| Output Shaft Length | 1 5/8" |
| Overall Length | 14.57" |
| Overall Width | 6 24/25" |
| Overhung Load Capacity | 300 lbs.-ft. |
| Phase | Single |
| Rotation | CW/CCW |
| Rpm | 58 RPM |
| Seal Type | Heavy Duty Industrial |
| Seals | Heavy Duty Industrial |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 5/8" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Csa, Ul |
| Starting Torque | 320 lbs.-in. |
| Thermal Protection | No Protection |
| Type | Capacitor Start |
| Voltage | 115/230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Orientation | Nameplate Rpm Range | Operating Voltage | Gear Ratio | Motor Type | Overhung Load Capacity | Max. Torque | Base To Center Of Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125002.00 | Parallel Inline | 16-30 RPM | 90V DC | 60:1 | Permanent Magnet Dc | 155 lbs.-ft. | - | 3" | €868.55 | |
 |
107008.00 | Parallel | 151-200 RPM | 115/208-230V AC | 11:1 | Capacitor-Start | 500 lbs.-ft. | 125 lbs.-in. | 2.94" | €1,411.55 | |
 |
M1145138.00 | Parallel | 16-30 RPM | 115/230V AC | 103:1 | Permanent Split Capacitor | 399 lbs.-ft. | 391 lbs.-in. | 3 1/2" | €1,225.53 | |
 |
M1145142.00 | Right Angle | 76-100 RPM | 115V AC | 20:1 | Permanent Split Capacitor | 235 lbs.-ft. | - | 1.67" | €1,333.16 | |
 |
M1135044.00 | Right Angle | 101-150 RPM | 90V AC | 20:1 | - | - | - | - | €1,172.65 | |
 |
M1135040.00 | Right Angle | 201-250 RPM | 90V AC | 10:1 | - | - | 25 lbs.-in. | - | €1,238.44 | |
 |
M1125082.00 | Right Angle | 51-75 RPM | 115/230V AC | 30:1 | Permanent Split Capacitor | 185 lbs.-ft. | 40 lbs.-in. | 1 12/25" | €1,611.56 |
