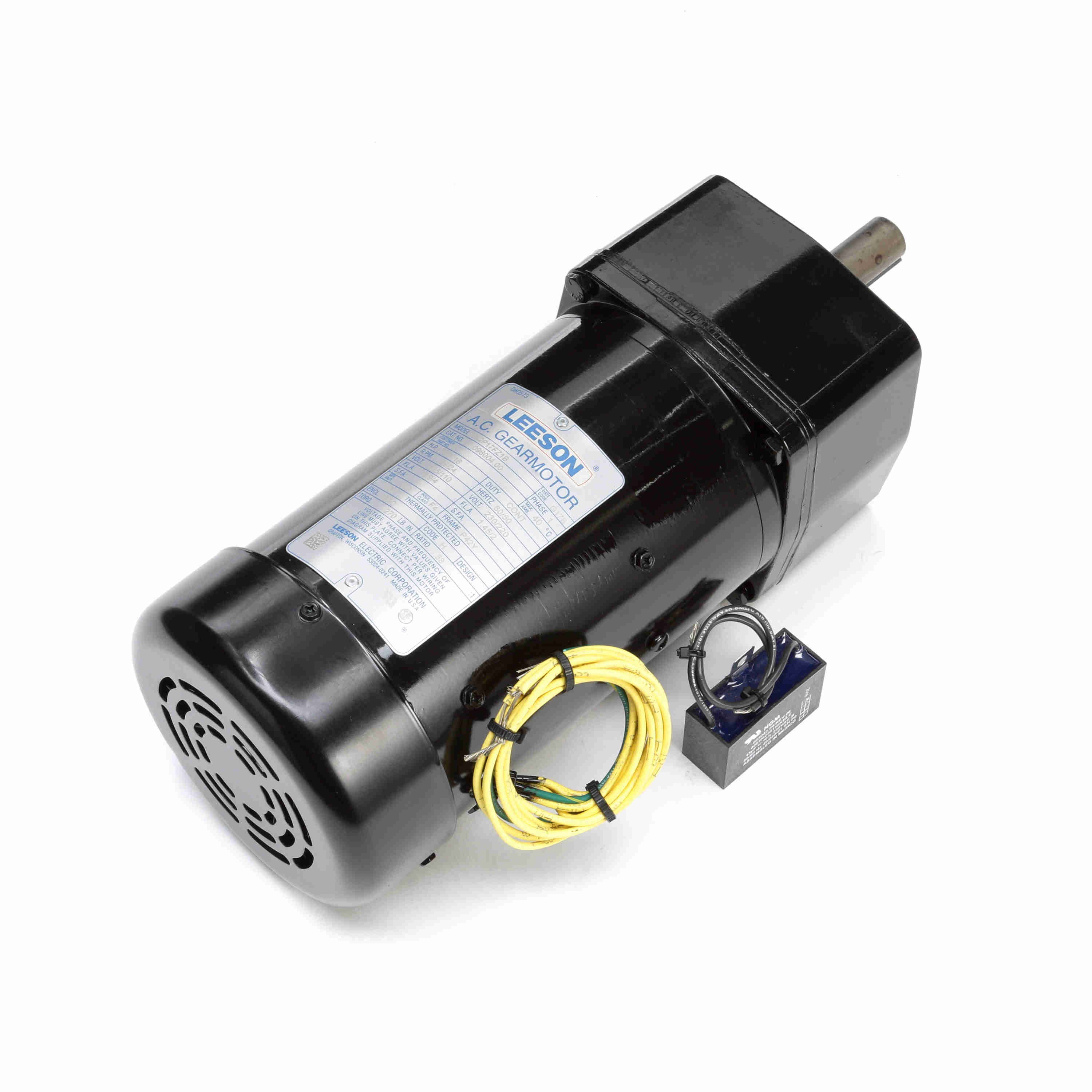

LEESON 096004.00 C42P17FZ1B Parallel Shaft Gearmotor, 0.16 HP, 1 Phase, 60/50 Hz, 110V, 29 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,318.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 2.9/1.5A |
| Base To Center Of Shaft | 4" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | H |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame Length | 6 1/4" |
| Frame Type | P42Y |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.9/1.5A |
| Gear Ratio | 58:1 |
| Height | 10 22/25" |
| Housing Material | Die Cast Aluminum |
| Hp | 4/25 hp |
| Includes | Conduit Box |
| Includes Capacitor | Capacitor Included |
| Includes Junction/conduit Box | Yes |
| Input Hp | 16/100 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kva Code | H |
| Kw | 0.12 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11.32" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 29 RPM |
| Maximum Torque | 270 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | P42Y |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 2.5" |
| Mount Hole Center-to-center Width | 5" |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Nameplate Speed | 29 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Opp. Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 5/8" |
| Overall Height | 5.57" |
| Overall Length | 13.32" |
| Overall Width | 6" |
| Overhung Load Capacity | 327 lbs.-ft. |
| Packaging | B |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm | 29 RPM |
| Seal Type | Heavy Duty Industrial |
| Series | PE350 |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 5/8" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Csa, Ul |
| Starting Torque | 270 lbs.-in. |
| Type | PF |
| Voltage | 110V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .16/.16
- Nameplate: 080573
- Overrlung Ld.: 327
- Winding: P47410
- GROUP: 3 A
- Paint: M1305027.01
Product Variants
| Product | Model | Motor Type | Overhung Load Capacity | Operating Voltage | Gear Ratio | Rpm | Length Less Shaft | Insulation Class | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
096001.00 | Permanent Split Capacitor | 491 lbs.-ft. | 115V AC | 180:1 | 9 RPM | 9.36" | Class F | 11.36" | €1,010.52 | |
 |
096002.00 | Permanent Split Capacitor | 459 lbs.-ft. | 115V AC | 124:1 | 14 RPM | 9.36" | Class F | 11.36" | €973.01 | |
 |
096003.00 | Permanent Split Capacitor | 374 lbs.-ft. | 115V AC | 91:1 | 19 RPM | 9.36" | Class F | 11.36" | €1,368.50 | |
 |
096005.00 | Permanent Split Capacitor | 330 lbs.-ft. | 115/230V AC | 50:1 | 34 RPM | 11.32" | Class F | 13.32" | €1,063.89 | |
 |
096051.00 | Capacitor-Start | 300 lbs.-ft. | 115/230V AC | 10:1 | 173 RPM | 12.57" | Class F | 14.57" | €1,585.43 | |
 |
096052.00 | Capacitor-Start | 300 lbs.-ft. | 115/230V AC | 5:1 | 345 RPM | 12.57" | Class F4 | 14.57" | €929.03 |
