LEESON 096005.00 C42P17FZ2 General Purpose Motor | AJ2PEM C42P17FZ2

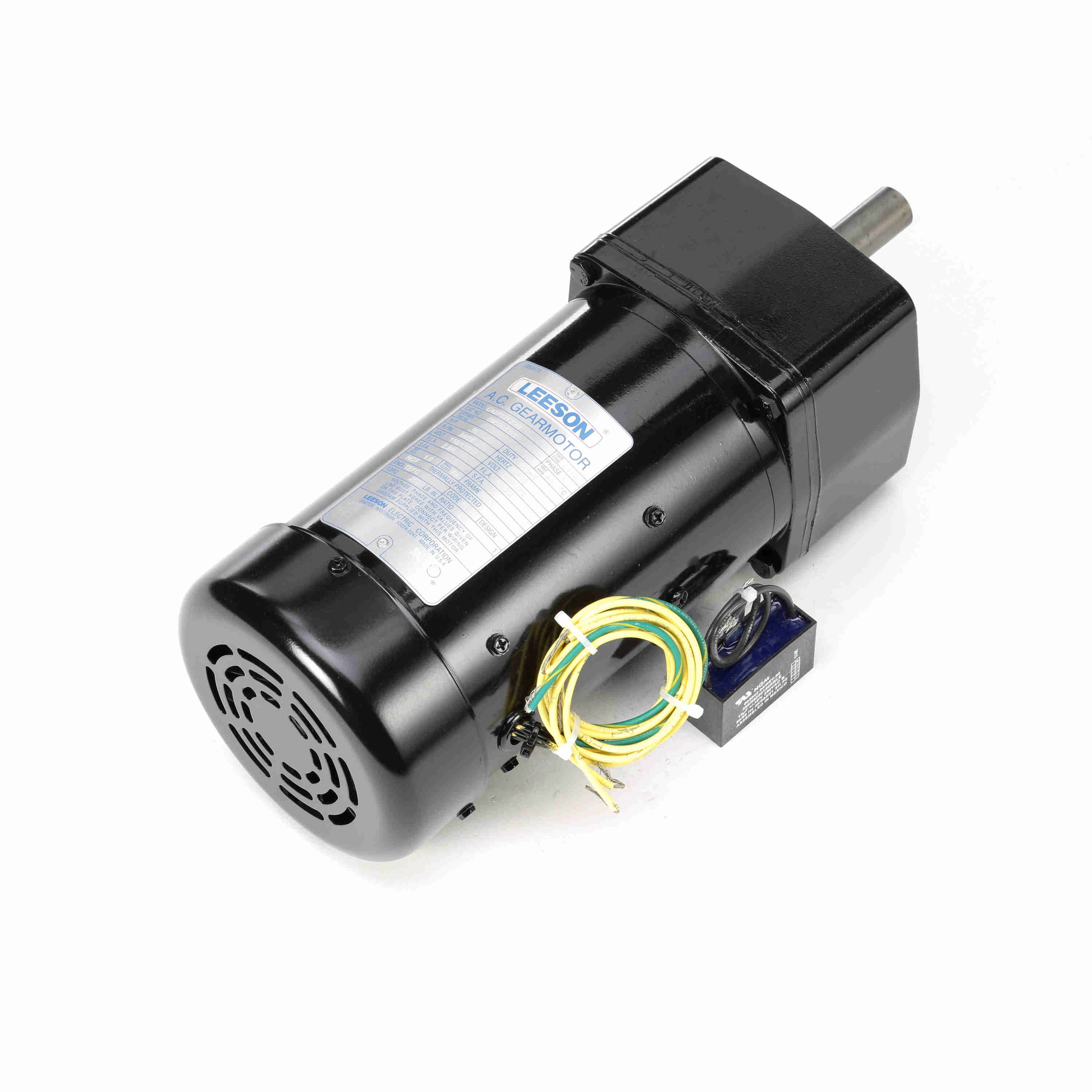

LEESON 096005.00 C42P17FZ2B Parallel Shaft Gearmotor, 0.16 HP, 1 Phase, 60 Hz, 110V, 34 RPM

Item: AJ2PEMModel: 096005.00Cross Ref: 794AL0 / C42P17FZ2B
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,063.89 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item AC Gearmotor
Amps 2.9/1.5A
Base To Center Of Shaft 4"
Bearing Type Needle
Capacitor Required Yes
Code H
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Duty Rating Continuous
Efficiency 40.2%
Enclosure Type Tefc
Frame Length 6 1/4"
Frame Type P42Y
Frequency 60 Hz
Full Load Amps 2.9/1.5A
Gear Ratio 50:1
Height 10 22/25"
Housing Material Die Cast Aluminum
Hp 4/25 hp
Includes Capacitor Capacitor Included
Includes Junction/conduit Box No
Input Hp 16/100 hp
Insulation Class Class F
Keyway Depth 3/16"
Keyway Length 1"
Keyway Type Square
Keyway Width 1"
Kva Code H
Kw 0.12 kW
Length 19 1/2"
Length Less Shaft 11.32"
Lubrication Heavy Duty Gear Oil
Max. Ambient Temp. 40°C
Maximum Ambient Temperature 104°F
Maximum Output Speed 34 RPM
Maximum Torque 250 lbs.-in.
Motor Duty Class Continuous
Motor Enclosure Totally Enclosed Fan Cooled
Motor Frame Designation P42Y
Motor Insulation Class Class F
Motor Type Permanent Split Capacitor
Mount Hole Center-to-center Length 2.5"
Mount Hole Center-to-center Width 5"
Mount Type Horizontal Or Vertical Shaft Down
Mounting Special
Mounting Orientation Horizontal, Vertical With Shaft Down
Nameplate Speed 34 RPM
Number Of Output Shafts 1
Operating Voltage 115/230V AC
Opp. Drive End Bearing Size 6201
Opp. Drive End Bearing Type Ball
Output Shaft Diameter 3/4"
Output Shaft Length 1 5/8"
Overall Height 5.57"
Overall Length 13.32"
Overall Width 6"
Overhung Load Capacity 330 lbs.-ft.
Packaging B
Phase 1
Power Factor 66.9, 55.2
Rotation CW/CCW
Rpm 34 RPM
Seal Type Heavy Duty Industrial
Series PE350
Service Factor 1
Shaft Dia. 3/4"
Shaft Length 1 5/8"
Shaft Orientation Parallel
Shaft Type Parallel
Standards Csa, Ul
Starting Torque 250 lbs.-in.
Type PF
Voltage 110V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 13.05
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • HPKW: .16/.16
    • Nameplate: 080573
    • Overrlung Ld.: 330
    • Winding: P47410
    • GROUP: 3 B
    • Paint: M1305027.01

Product Variants

ProductModelMotor TypeOverhung Load CapacityOperating VoltageGear RatioRpmLength Less ShaftInsulation ClassOverall LengthPrice
LEESON 096001.00 C42P17NZ2 General Purpose Motor | AJ2PEH C42P17NZ2 096001.00Permanent Split Capacitor491 lbs.-ft.115V AC180:19 RPM9.36"Class F11.36"€1,010.52
LEESON 096002.00 C42P17NZ3 General Purpose Motor | AJ2PEJ C42P17NZ3 096002.00Permanent Split Capacitor459 lbs.-ft.115V AC124:114 RPM9.36"Class F11.36"€973.01
LEESON 096003.00 C42P17NZ4 AC Gearmotor | AJ2PEK C42P17NZ4 096003.00Permanent Split Capacitor374 lbs.-ft.115V AC91:119 RPM9.36"Class F11.36"€1,368.50
LEESON 096004.00 C42P17FZ1 AC Gearmotor | AJ2PEL C42P17FZ1 096004.00Permanent Split Capacitor327 lbs.-ft.115V AC58:129 RPM11.32"Class F13.32"€1,465.29
LEESON 096051.00 C42C17FZ6 AC Gearmotor | AJ2PEY C42C17FZ6 096051.00Capacitor-Start300 lbs.-ft.115/230V AC10:1173 RPM12.57"Class F14.57"€1,585.43
LEESON 096052.00 C42C17FZ7 AC Gearmotor | AJ2PEZ C42C17FZ7 096052.00Capacitor-Start300 lbs.-ft.115/230V AC5:1345 RPM12.57"Class F414.57"€929.03
