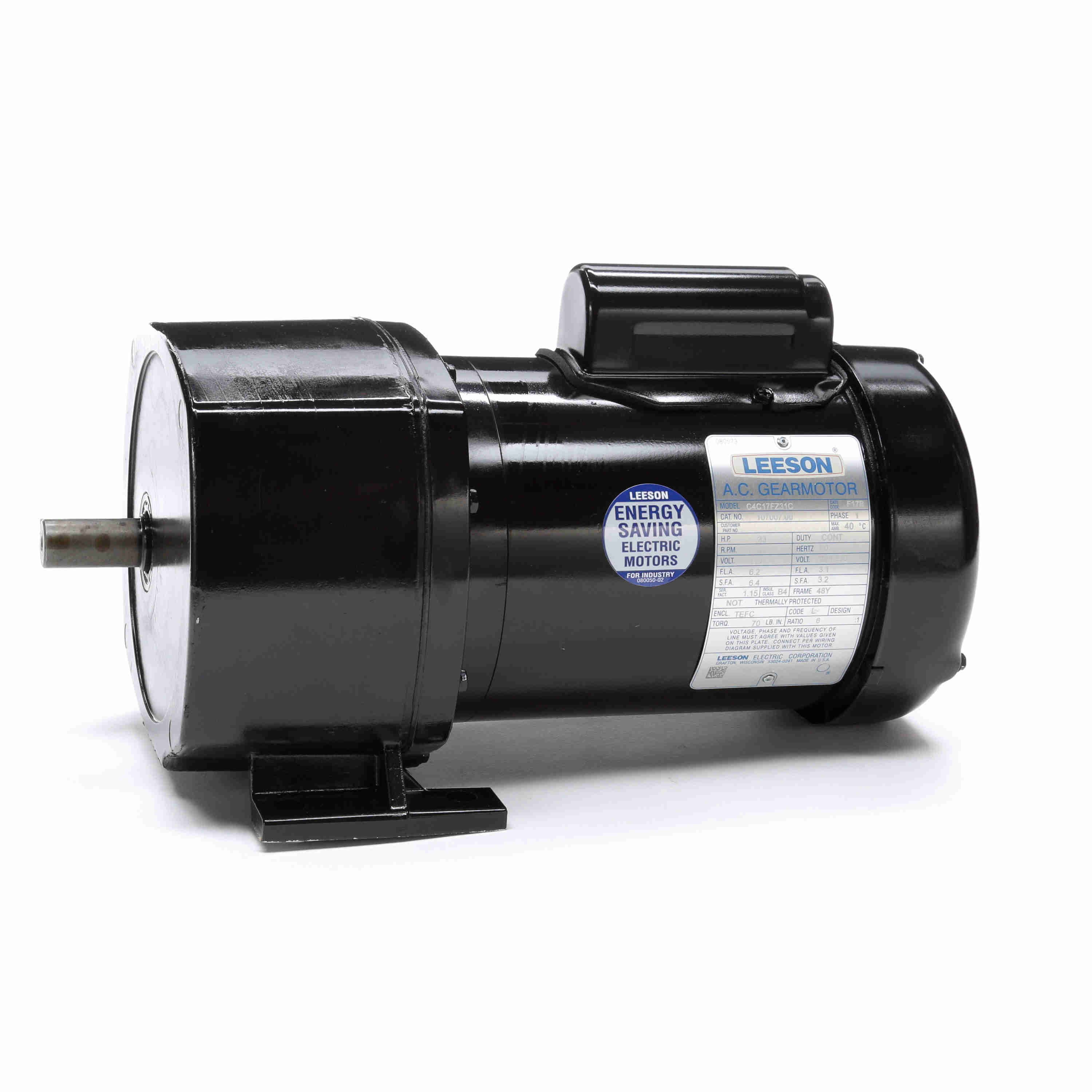

LEESON 107007.00 C4C17FZ31C Parallel Shaft Gearmotor, 0.33 HP, 1 Phase, 60 Hz, 288 RPM
1/3 hp
288 RPM
Get it by Thursday, Jul 2
5.00% off
€1,683.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Agma Gear Class | Class 9 |
| Application | Power Transmission |
| Base To Center Of Shaft | 2.94" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame | 48Y |
| Frame Type | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 6.2/3.1A |
| Gear Ratio | 6:1 |
| Housing Material | Die Cast Aluminum |
| Hp | 33/100 hp |
| Included | Conduit Box |
| Included Capacitor | Capacitor Included |
| Included Junction/conduit Box | Yes |
| Input Hp | 0.33 hp |
| Insulation Class | Class B |
| Keyway Depth | 1 1/16" |
| Keyway Length | 1" |
| Keyway Width | 15/79" |
| Kw | 0.25 kW |
| Length Less Shaft | 12.7" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Output Speed | 288 RPM |
| Max. Torque | 70 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class B |
| Motor Type | Capacitor Start |
| Mount Hole Center To Center Length | 2.5" |
| Mount Hole Center To Center Width | 7.13" |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Mounting Type | Horizontal Or Vertical Shaft Down |
| Nameplate Speed | 288 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115/208-230V AC |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Direction | Left Hand |
| Output Shaft Dia. | 3/4" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 7.69" |
| Overall Length | 13.67" |
| Overall Width | 8.13" |
| Overhung Load Capacity | 400 lbs.-ft. |
| Packaging | B |
| Phase | 1 |
| Product Datasheet | leeson-107007-00.pdf |
| Rotation | CW, CCW |
| Series | P1100 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Inline |
| Shaft Type | Parallel |
| Speed | 288 RPM |
| Standards | Csa, Ul |
| Type | RP_CF |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .33
- S. F Amps: 6.4/3.2
- Nameplate: 080573
- Overrlung Ld.: 400
- Winding: C554113
- GROUP: 3 G
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Rotation | Shaft Orientation | Motor Type | Max. Torque | Overhung Load Capacity | Operating Voltage | Gear Ratio | Base To Center Of Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145122.00 | CW, CCW | Parallel | 3-Phase | 391 lbs.-in. | 237 lbs.-ft. | 208-230V AC | 103:1 | - | €1,366.90 | |
 |
096065.00 | CW, CCW | Parallel | 3-Phase | 341 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 180:1 | - | €1,297.11 | |
 |
096066.00 | CW, CCW | Parallel | 3-Phase | 300 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 58:1 | - | €936.95 | |
 |
096067.00 | CW, CCW | Parallel | 3-Phase | 244 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 30:1 | - | €936.95 | |
 |
096068.00 | CW, CCW | Parallel | 3-Phase | 165 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 20:1 | - | €1,137.02 | |
 |
096069.00 | CW, CCW | Parallel | 3-Phase | 92 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 10:1 | - | €1,240.08 | |
 |
096070.00 | CW, CCW | Parallel | 3-Phase | 50 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 5:1 | - | €926.85 |
