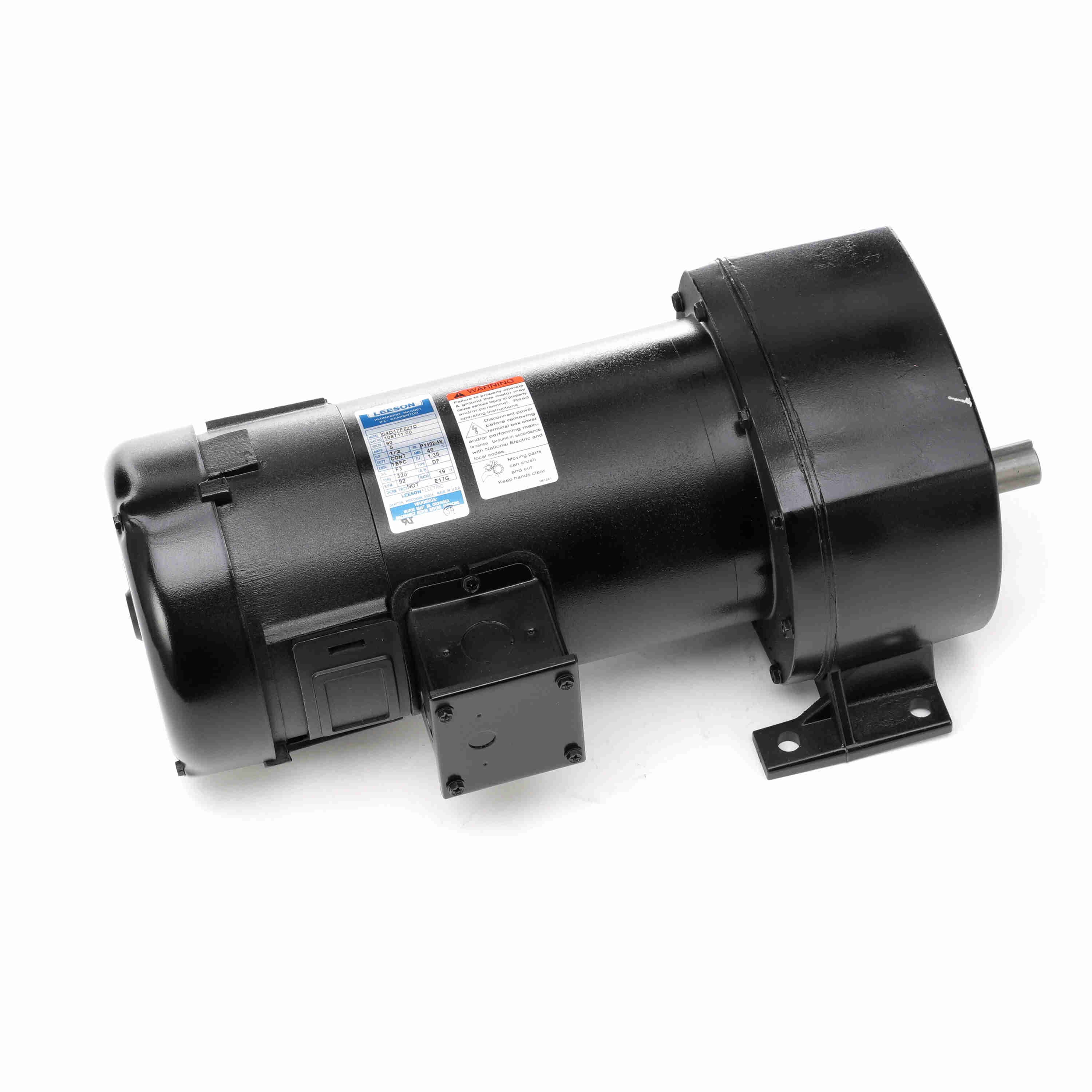

LEESON 108711.00 C4D17FZ27C Parallel Shaft Gearmotor, 0.50 HP, 90V, 92 RPM
1/2 hp
92 RPM
Get it by Thursday, Aug 20
5.00% off
€1,944.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Parallel |
| Amps | 5A |
| Base To Center Of Shaft | 3" |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 66.9% |
| Enclosure Type | Tefc |
| Features | Agma Class 9 Standard, Rugged Die Cast Aluminum Gear Housing |
| Frame Length | 5.97" |
| Frame Type | 48Y |
| Full Load Amps | 5A |
| Gear Ratio | 19:1 |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Input Hp | 1/2 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/16" |
| Keyway Length | 1 1/16" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kw | 0.37 kW |
| Length | 19 1/2" |
| Length Less Shaft | 14.81" |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 92 RPM |
| Max. Torque | 320 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center To Center Length | 2 1/2" |
| Mount Hole Center To Center Width | 7.13" |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Special |
| Nameplate Speed | 92 RPM |
| Operating Voltage | 90V DC |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Dia. | 3/4" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6.65" |
| Overall Length | 16.31" |
| Overall Width | 8.13" |
| Overhung Load Capacity | 575 lbs.-ft. |
| Product Datasheet | leeson-108711-00.pdf |
| Rotation | CW, CCW |
| Seal Type | Heavy Duty Industrial |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Speed | 92 RPM |
| Starting Torque | 320 lbs.-in. |
| Thermal Protection | None |
| Voltage | 90V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Nameplate Speed | Voltage | Full Load Amps | Operating Voltage | Overhung Load Capacity | Max. Torque | Speed | Max. Output Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
108731.00 | 42 RPM | 12V | 40A | 12V DC | 650 lbs.-ft. | 705 lbs.-in. | 42 RPM | 42 RPM | €1,857.31 | |
 |
108712.00 | 135 RPM | 90V | 5A | 90V DC | 575 lbs.-ft. | 210 lbs.-in. | 135 RPM | 135 RPM | €1,824.86 | |
 |
108707.00 | 18 RPM | 90V | 5A | 90V DC | 700 lbs.-ft. | 1112 lbs.-in. | 18 RPM | 18 RPM | €2,143.21 | |
 |
108708.00 | 33 RPM | 90V | 5A | 90V DC | 650 lbs.-ft. | 822 lbs.-in. | 33 RPM | 33 RPM | €1,857.31 | |
 |
108710.00 | 60 RPM | 90V | 5A | 90V DC | 625 lbs.-ft. | 476 lbs.-in. | 60 RPM | 60 RPM | €2,079.57 | |
 |
108709.00 | - | - | - | - | 650 lbs. | - | - | - | €1,963.80 |
