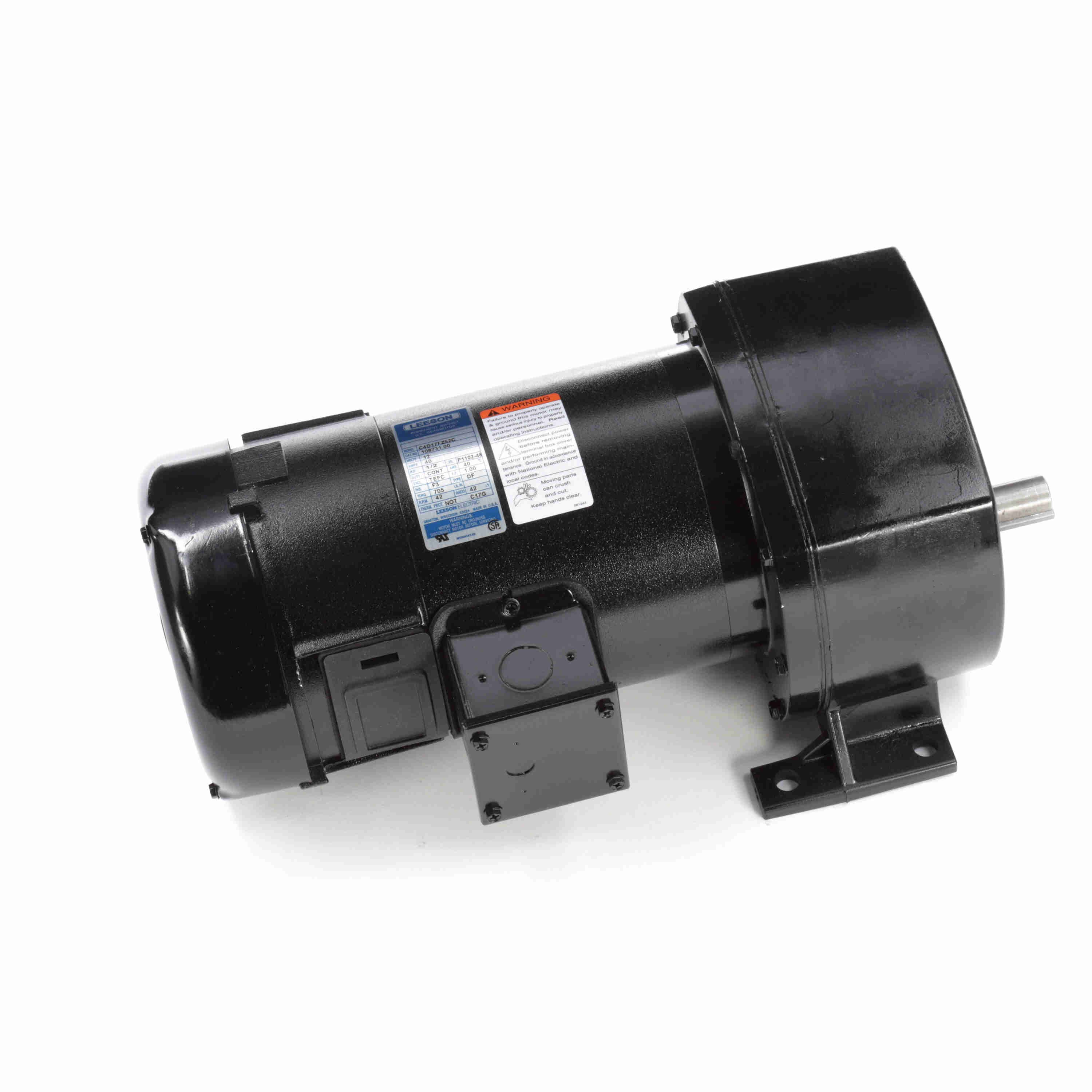

LEESON 108731.00 Parallel Shaft Gearmotors, Parallel, 12V DC, TEFC, 42 RPM, 705 in-lb Max Torque, 42, 1 | CR8PPY 794AX4

LEESON 108731.00 C4D17FZ52C Parallel Shaft Gearmotor, 0.50 HP, 12V, 42 RPM

Item: CR8PPYModel: 108731.00Cross Ref: 794AX4 / C4D17FZ52C
Check Availability
In Stock

Get it by Tuesday, Aug 25

€1,857.31 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Parallel
Amps 40A
Base To Center Of Shaft 3"
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 61.3%
Enclosure Type Tefc
Features Agma Class 9 Standard, Rugged Die Cast Aluminum Gear Housing
Frame Length 4.97"
Frame Type 48Y
Full Load Amps 40A
Gear Ratio 42:1
Height 10 22/25"
Hp 1/2 hp
Input Hp 1/2 hp
Insulation Class Class F
Keyway Depth 3/16"
Keyway Length 1 1/16"
Keyway Type Square
Keyway Width 1"
Kw 0.37 kW
Length 19 1/2"
Length Less Shaft 13.81"
Max. Ambient Temp. 40°C
Max. Output Speed 42 RPM
Max. Torque 705 lbs.-in.
Motor Duty Class Continuous
Motor Enclosure Totally Enclosed Fan Cooled
Motor Insulation Class Class F
Motor Type Permanent Magnet DC
Mount Hole Center To Center Length 2 1/2"
Mount Hole Center To Center Width 7.13"
Mounting Orientation Horizontal, Vertical with Shaft Down
Mounting Type Special
Nameplate Speed 42 RPM
Operating Voltage 12V DC
Opp Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Shaft Dia. 3/4"
Output Shaft Length 1 1/2"
Overall Height 6.65"
Overall Length 15.31"
Overall Width 8.13"
Overhung Load Capacity 650 lbs.-ft.
Product Datasheet leeson-108731-00.pdf
Rotation CW, CCW
Seal Type Heavy Duty Industrial
Service Factor 1
Shaft Dia. 3/4"
Shaft Length 1 1/2"
Shaft Orientation Parallel
Shaft Type Parallel
Speed 42 RPM
Starting Torque 705 lbs.-in.
Thermal Protection None
Voltage 12V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 19.35
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelNameplate SpeedVoltageFull Load AmpsOperating VoltageOverhung Load CapacityMax. TorqueSpeedMax. Output SpeedPrice
LEESON 108712.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 135 RPM, 210 in-lb Max Torque, 13, 1 | CR8PQP 794AX3 108712.00135 RPM90V5A90V DC575 lbs.-ft.210 lbs.-in.135 RPM135 RPM€1,824.86
LEESON 108707.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 18 RPM, 1, 112 in-lb Max Torque, 95, 1 | CR8PQQ 794AW8 108707.0018 RPM90V5A90V DC700 lbs.-ft.1112 lbs.-in.18 RPM18 RPM€2,143.21
LEESON 108708.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 33 RPM, 822 in-lb Max Torque, 53, 1 | CR8PQR 794AW9 108708.0033 RPM90V5A90V DC650 lbs.-ft.822 lbs.-in.33 RPM33 RPM€1,857.31
LEESON 108710.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 60 RPM, 476 in-lb Max Torque, 29, 1 | CR8PQT 794AX1 108710.0060 RPM90V5A90V DC625 lbs.-ft.476 lbs.-in.60 RPM60 RPM€2,079.57
LEESON 108711.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 92 RPM, 320 in-lb Max Torque, 19, 1 | CR8PQU 794AX2 108711.0092 RPM90V5A90V DC575 lbs.-ft.320 lbs.-in.92 RPM92 RPM€2,046.67
108709.00----650 lbs.---€1,963.80
