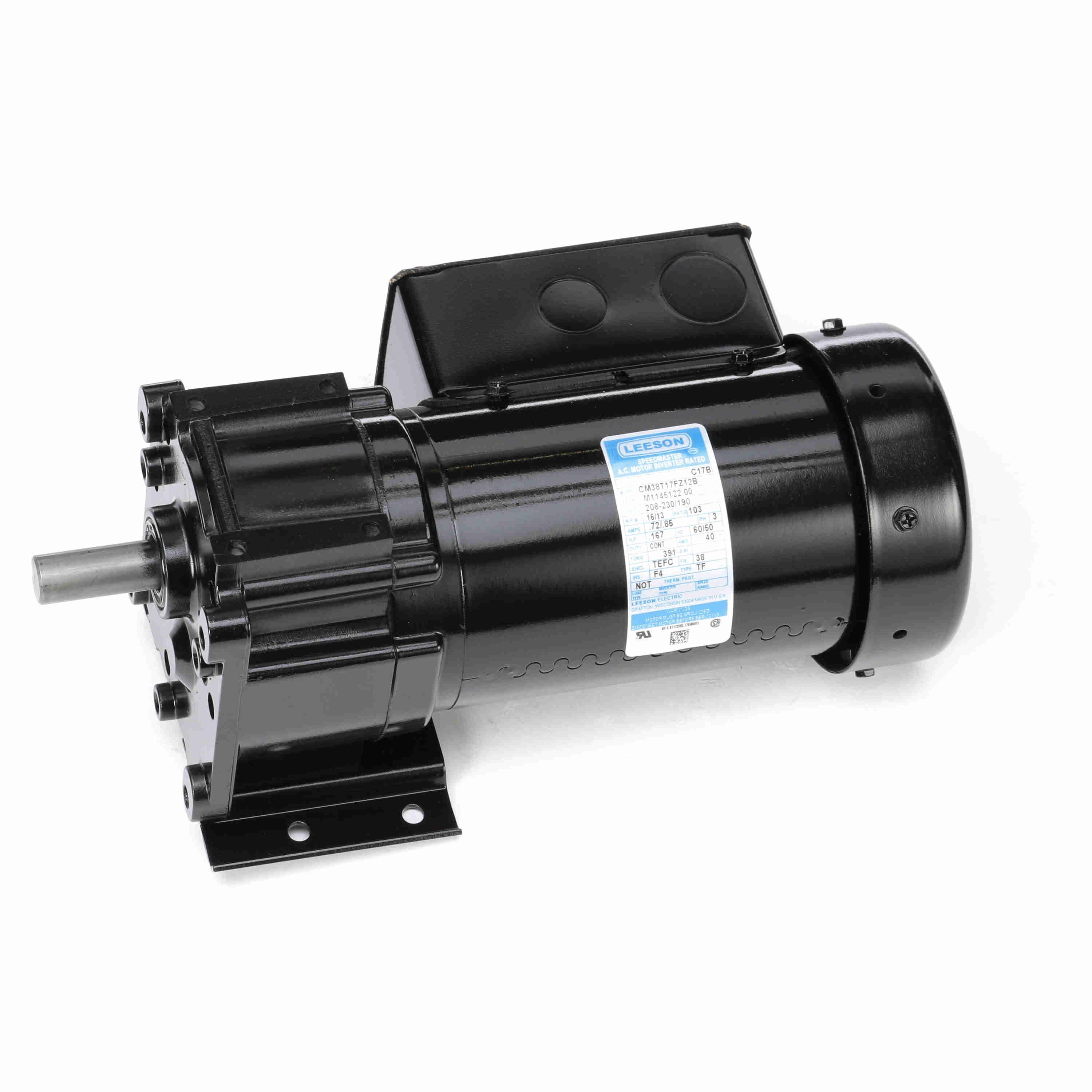

LEESON M1145122.00 CM38T17FZ12B Parallel Shaft Gearmotor, 0.17 HP, 3 Phase, 60/50 Hz, 190V, 16 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,228.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Agma Gear Class | Class 9 |
| Ambient Temp. | 40°C |
| Amps | 0.72A |
| Application | Inverter Duty |
| Assembly | M1041173 |
| Bearing Size | 6201-13 |
| Bearing Type | Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball |
| Code | J |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Enclosure Type | Tefc |
| Explosion Proof | Brake Motors |
| Finish | Enamel |
| Frame | 38 |
| Frame Length | 5.38" |
| Frame Size | 38 |
| Frame Suffix | Not Available |
| Frequency | 50/60 Hz |
| Full Load Amps | 0.72A |
| Gear Case Material | Die Cast Aluminum |
| Gear Material | Hardened Steel |
| Gear Ratio | 103:1 |
| Gear Type | Helical, Spur |
| Height | 6.69" |
| Housing Material | Rolled Steel |
| Housing Material Finish | Black High Gloss Enamel |
| Hp | 17/100 hp |
| Input Horsepower | 0.167 hp |
| Input Hp | 1/6 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Keyway Size | 0.18" x 1" |
| Keyway Type | 0.18 Sq. in. x 1" |
| Kw | 0.12 kW |
| Length | 16 1/2" |
| Length Less Shaft | 10.13" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 16 RPM |
| Maximum Torque | 391 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 38 |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Hole Center-to-center Length | 4.06" |
| Mount Hole Center-to-center Width | 1.5" |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting | All Position Except Shaft Up |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 16 RPM |
| No Load Rpm | 17 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 208-230V AC |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030998 |
| Output Kw | 0.12 kW |
| Output Shaft Diameter | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 5.13" |
| Overall Length | 11.63" |
| Overall Width | 5.63" |
| Overhung Load Capacity | 237 lbs.-ft. |
| Overrlung Ld. | 237 lbs. |
| Phase | 3 |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 16 RPM |
| Rpm Range | 16-30 RPM |
| Seal Type | Heavy Duty, Single Lip, Spring Loaded |
| Seals | Heavy Duty, Single Lip, Spring Loaded |
| Series | P240 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Ce Y, Csa Y, Ul |
| Test Card | 03 |
| Thermal Protection | No Protection |
| Torque | 391 lbs.-in. |
| Type | TF |
| Voltage | 190V |
| Winding | MT38420 |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| HS code | 8501514020 |
| Country of Origin | US |
