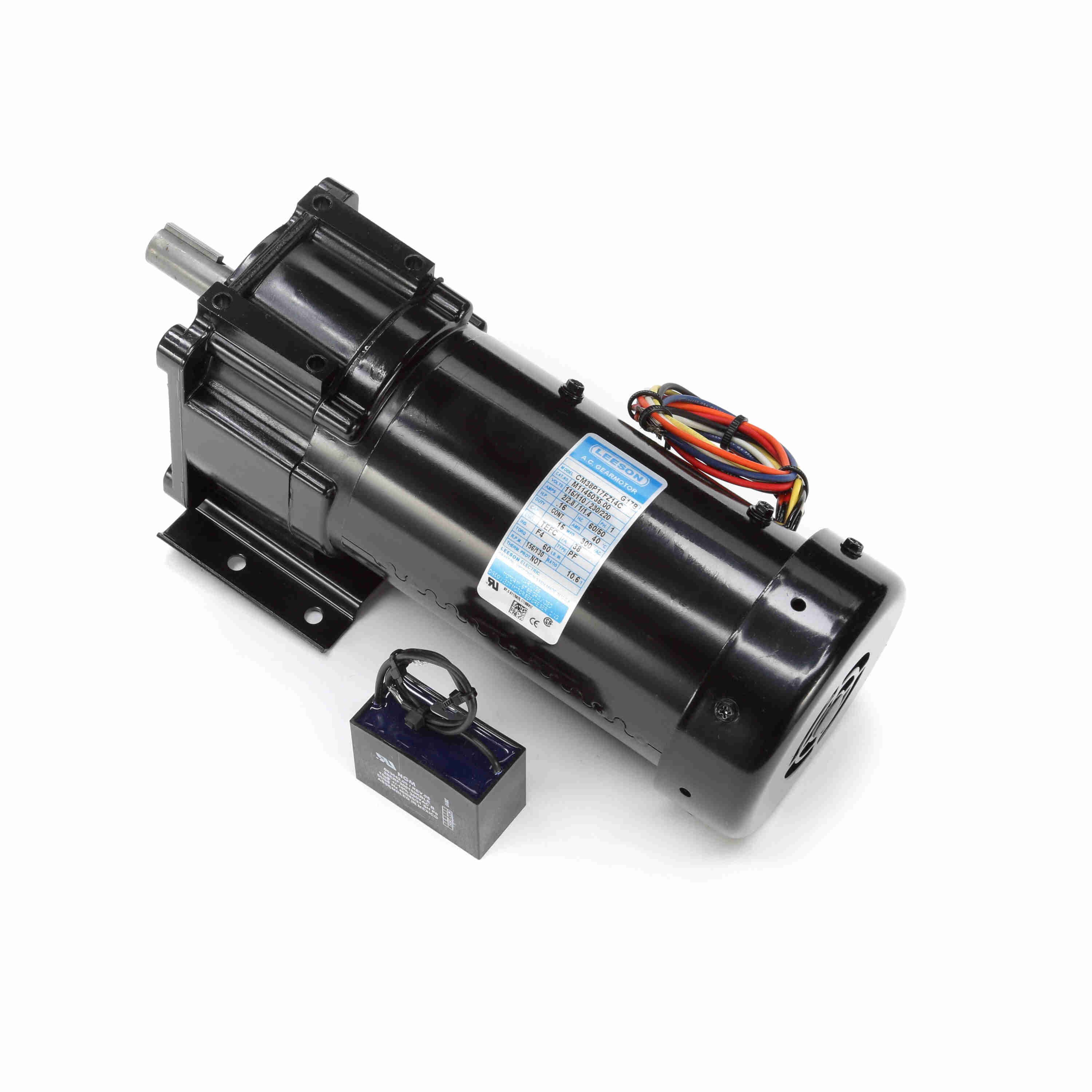

LEESON M1145035.00 CM38P17FZ14C Parallel Shaft Gearmotor, 0.16 HP, 1 Phase, 60/50 Hz, 110V, 156 RPM
0.16 hp
156 RPM
Get it by Wednesday, May 20
€1,057.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 1/2A |
| Assembly | M1040419 |
| Code | D |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Explosion Proof | Brake Motors |
| Frame | 38 |
| Frame Length | 5 22/25" |
| Frame Size | 38 |
| Frame Suffix | Not Available |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.8/1.4/2/1A |
| Height | 6.69" |
| Hp | 16/100 hp |
| Insulation Class | Class F |
| Kw | 0.12 kW |
| Length | 16 1/2" |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Mounting Type | Special |
| Opp. Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030381 |
| Output Kw | 0.12 kW |
| Overall Length | 12.13" |
| Overrlung Ld. | 201 lbs. |
| Packaging | M1307027.01 |
| Phase | 1 |
| Product Datasheet | leeson-m1145035-00.pdf |
| Rotation | Reconn |
| Rotation Type | Reversible |
| Rpm | 156 RPM |
| Series | P240 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Type | Parallel |
| Test Card | 05 |
| Thermal Protection | No Protection |
| Torque | 60 lbs.-in. |
| Type | PF |
| Voltage | 110V |
| Winding | MP38419 |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Product Details:
- HPKW: .16/.16
- Nameplate: M1004149.02
- Overrlung Ld.: 201
- Winding: MP38419
- GROUP: 3 M
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Rotation | Shaft Orientation | Motor Type | Overhung Load Capacity | Operating Voltage | Gear Ratio | Base To Center Of Shaft | Inverter Rated | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145122.00 | CW/CCW | Parallel | 3-Phase | 237 lbs.-ft. | 208-230V AC | 103:1 | - | Yes | €1,364.95 | |
 |
096065.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 180:1 | - | Yes | €1,295.30 | |
 |
096066.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 58:1 | - | Yes | €936.95 | |
 |
096067.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 30:1 | - | Yes | €936.95 | |
 |
096068.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 20:1 | - | Yes | €1,135.44 | |
 |
096069.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 10:1 | - | Yes | €1,238.33 | |
 |
096070.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 5:1 | - | Yes | €926.85 |
