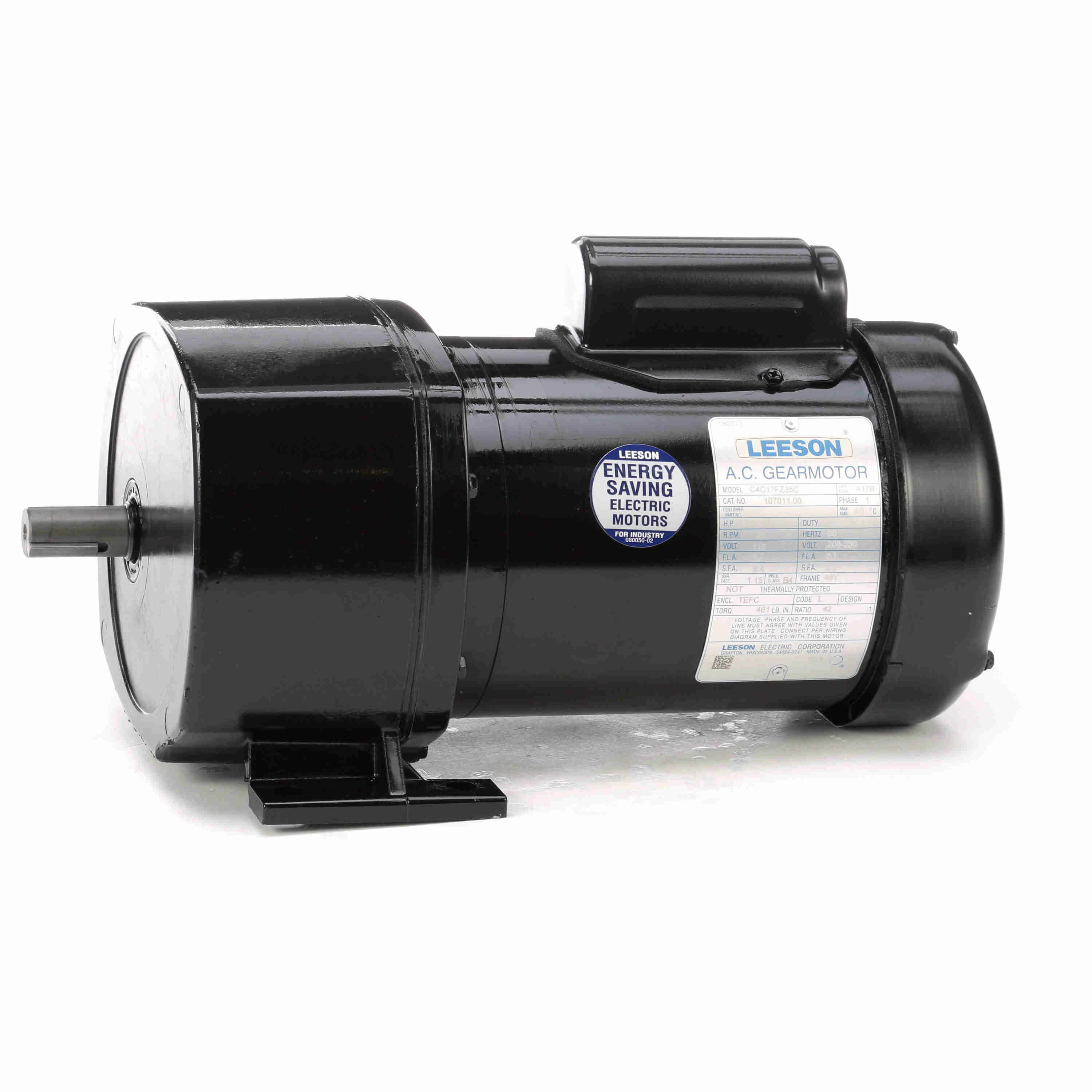

LEESON 107011.00 C4C17FZ35C Parallel Shaft Gearmotor, 0.33 HP, 1 Phase, 60 Hz, 115/208-230V, 41 RPM
1/3 hp
41 RPM
Get it by Tuesday, Aug 25
5.00% off
€1,637.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 6.2/3.1A |
| Base To Center Of Shaft | 2.94" |
| Bearing Type | Needle |
| Brake Type | None |
| Capacitor Required | Yes |
| Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame | 48Y |
| Frame Length | 5 3/4" |
| Frame Type | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 6.2/3.1A |
| Gear Ratio | 42:1 |
| Height | 10 22/25" |
| Housing Material | Die Cast Aluminum |
| Hp | 33/100 hp |
| Included | Conduit Box |
| Included Capacitor | Capacitor Included |
| Included Junction/conduit Box | Yes |
| Input Hp | 0.33 hp |
| Insulation Class | Class B |
| Keyway Depth | 1 1/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 15/79" |
| Kva Code | L |
| Kw | 0.25 kW |
| Length | 19 1/2" |
| Length Less Shaft | 12.17" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Output Speed | 41 RPM |
| Max. Torque | 461 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class B |
| Motor Type | Capacitor Start |
| Mount Hole Center To Center Length | 2.5" |
| Mount Hole Center To Center Width | 7.13" |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Mounting Type | Horizontal Or Vertical Shaft Down |
| Nameplate Speed | 41 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115/208-230V AC |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Dia. | 3/4" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 7.69" |
| Overall Length | 13.67" |
| Overall Width | 8.13" |
| Overhung Load Capacity | 650 lbs.-ft. |
| Packaging | B |
| Phase | 1 |
| Product Datasheet | leeson-107011-00.pdf |
| Rotation | CW, CCW |
| Seal Type | Heavy Duty Industrial |
| Series | P1100 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Speed | 41 RPM |
| Starting Torque | 461 lbs.-in. |
| Thermal Protection | None |
| Type | RP_CF |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 11.93 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .33
- S. F Amps: 6.4/3.2
- Nameplate: 080573
- Overrlung Ld.: 650
- Winding: C554113
- GROUP: 3 K
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Phase | Full Load Amps | Frequency | Voltage | Mounting | Overhung Load Capacity | Nameplate Speed | Output Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145122.00 | 3 | 0.72A | 50/60 Hz | 190V | All Position Except Shaft Up | 237 lbs.-ft. | 16 RPM | 5/8" | €1,366.90 | |
 |
096065.00 | 3 | 1/0.5A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 9 RPM | 3/4" | €1,297.11 | |
 |
096066.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 29 RPM | 3/4" | €936.95 | |
 |
096067.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 58 RPM | 3/4" | €936.95 | |
 |
096068.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 85 RPM | 3/4" | €1,137.02 | |
 |
096069.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 173 RPM | 3/4" | €1,240.08 | |
 |
096070.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 345 RPM | 3/4" | €926.85 |
