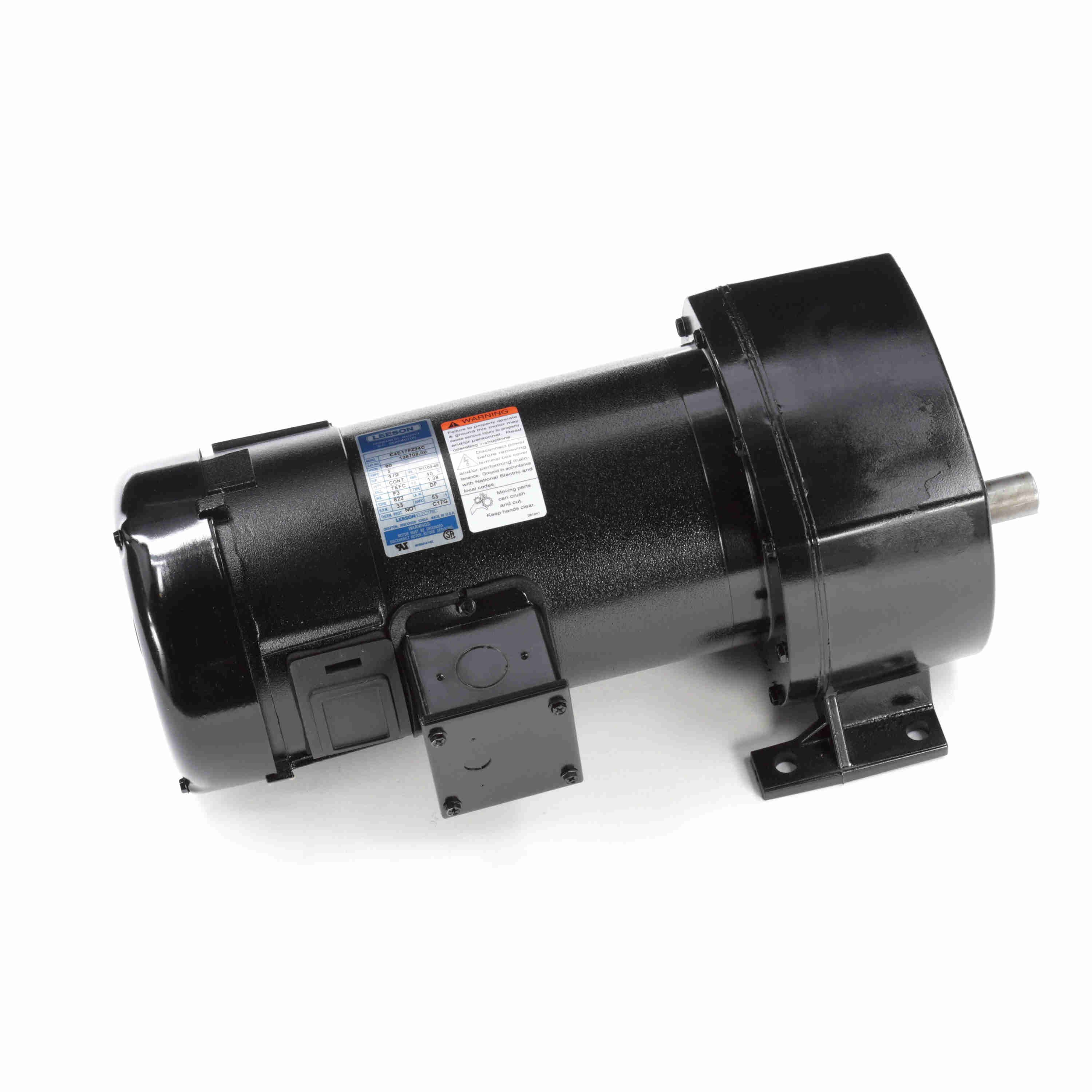

LEESON 108708.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 33 RPM, 822 in-lb Max Torque, 53, 1 | CR8PQR 794AW9

LEESON 108708.00 C4D17FZ24C Parallel Shaft Gearmotor, 0.50 HP, 90V, 33 RPM

Item: CR8PQRModel: 108708.00Cross Ref: 794AW9 / C4D17FZ24C
Check Availability
In Stock

Get it by Monday, Dec 22

€1,857.31 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Parallel
Amps 5A
Base To Center Of Shaft 3"
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 68.3%
Enclosure Type Tefc
Features Agma Class 9 Standard, Rugged Die Cast Aluminum Gear Housing
Frame Length 5.97"
Frame Type 48Y
Full Load Amps 5A
Gear Ratio 53:1
Height 10 22/25"
Hp 1/2 hp
Input Hp 1/2 hp
Insulation Class Class F
Keyway Depth 3/16"
Keyway Length 1 1/16"
Keyway Type Square
Keyway Width 1"
Kw 0.37 kW
Length 19 1/2"
Length Less Shaft 14.81"
Max. Ambient Temp. 40°C
Max. Output Speed 33 RPM
Max. Torque 822 lbs.-in.
Motor Duty Class Continuous
Motor Enclosure Totally Enclosed Fan Cooled
Motor Insulation Class Class F
Motor Type Permanent Magnet DC
Mount Hole Center-to-center Length 2 1/2"
Mount Hole Center-to-center Width 7.13"
Mounting Orientation Horizontal, Vertical with Shaft Down
Mounting Type Special
Nameplate Rpm 33 RPM
Operating Voltage 90V DC
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Shaft Dia. 3/4"
Output Shaft Length 1 1/2"
Overall Height 6.65"
Overall Length 16.31"
Overall Width 8.13"
Overhung Load Capacity 650 lbs.-ft.
Rotation CW/CCW
Rpm 33 RPM
Seal Type Heavy Duty Industrial
Service Factor 1
Shaft Dia. 3/4"
Shaft Length 1 1/2"
Shaft Orientation Parallel
Shaft Type Parallel
Standards Csa, Ul
Starting Torque 822 lbs.-in.
Voltage 90V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 19.8
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Variants

ProductModelShaft OrientationOperating VoltageGear RatioNameplate RpmInput HpBase To Center Of ShaftOverhung Load CapacityMax. TorquePrice
LEESON M1125071.00 Motor, Parallel, 90VDC, TENV, 51 RPM, 130 in-lb | CR8PMN 36X874 M1125071.00Parallel90V DC35:151 RPM-3 1/2"277 lbs.-ft.130 lbs.-in.€1,017.86
LEESON M1125074.00 90 Volt Dc Gearmotor, Parallel, 90VDC, TENV, 167 RPM, 43 in-lb | CR8PMP 36X633 M1125074.00Parallel90V DC11:1167 RPM---43 lbs.-in.€990.65
LEESON M1125004.00 90Vdc Gear Motor 31Rpm, Parallel, 90VDC, TENV, 100 RPM, 36 in-lb | CR8PMQ 36X883 M1125004.00Parallel90V DC18:1100 RPM3/50 hp--36 lbs.-in.€812.90
LEESON M1135065.00 Motor, 1/4 Hp 180 Volt Tenv, Right Angle, 180V DC | CR8PMR 36X855 M1135065.00Right Angle180V DC10:1250 RPM1/4 hp-235 lbs.-ft.-€1,050.36
LEESON M1125069.00 Motor, Parallel, 90V Dc, Tenv, 24 Rpm, 280 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMT 36X876 M1125069.00Parallel90V DC76:124 RPM13/100 hp--280 lbs.-in.€1,044.63
LEESON M1125073.00 Motor, Parallel, 90V Dc, Tenv, 94 Rpm, 77 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMU 36X856 M1125073.00Parallel90V DC19:194 RPM13/100 hp--77 lbs.-in.€1,152.51
LEESON M1135252.00 Right Angle Gearmotors, Right Angle, 12V DC, Tenv, 125 Rpm, 90 In-Lb Max Torque | CR8PMW 794AZ2 M1135252.00Right Angle12V DC20:1125 RPM1/4 hp1.67"235 lbs.-ft.-€1,060.13
