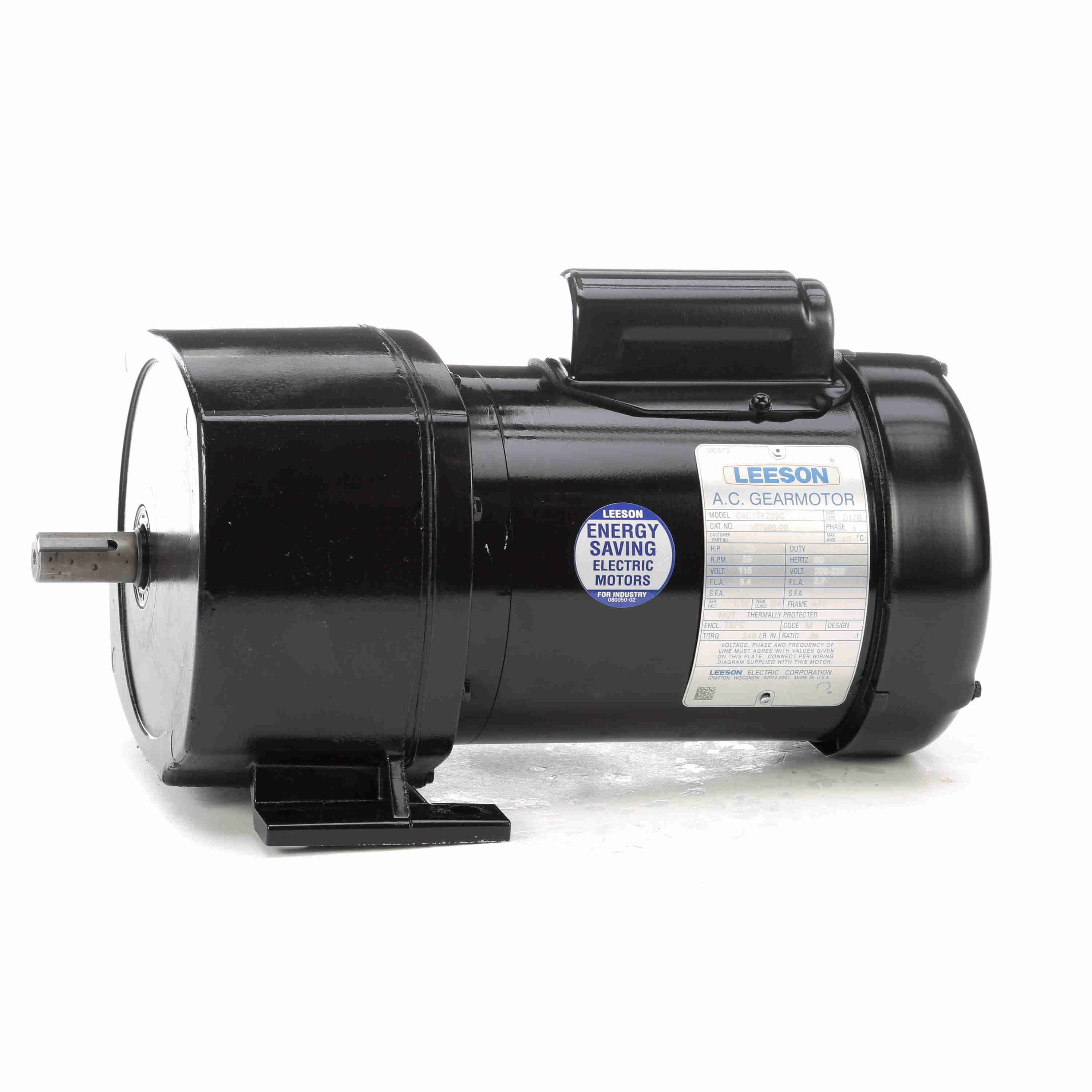

LEESON 107005.00 C4C17FZ29C Parallel Shaft Gearmotor, 0.25 HP, 1 Phase, 60 Hz, 115/208-230V, 59 RPM
Get it by Tuesday, Dec 23
€1,392.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 5.4/2.7A |
| Base To Center Of Shaft | 2.94" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | M |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame | 48Y |
| Frame Length | 5 1/2" |
| Frame Type | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 5.4/2.7A |
| Gear Ratio | 29:1 |
| Height | 10 22/25" |
| Housing Material | Die Cast Aluminum |
| Hp | 1/4 hp |
| Includes | Conduit Box |
| Includes Capacitor | Capacitor Included |
| Includes Junction/conduit Box | Yes |
| Input Horsepower | 1/4 hp |
| Insulation Class | Class B |
| Keyway Depth | 1 1/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 15/79" |
| Kva Code | M |
| Kw | 0.19 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11.92" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 59 RPM |
| Maximum Torque | 248 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class B |
| Motor Type | Capacitor-Start |
| Mount Hole Center-to-center Length | 2.5" |
| Mount Hole Center-to-center Width | 7.13" |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Nameplate Speed | 59 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115/208-230V AC |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 7.69" |
| Overall Length | 13.42" |
| Overall Width | 8.13" |
| Overhung Load Capacity | 625 lbs.-ft. |
| Packaging | B |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm | 59 RPM |
| Seal Type | Heavy Duty Industrial |
| Series | P1100 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Csa, Ul |
| Starting Torque | 248 lbs.-in. |
| Type | RP_CF |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .25
- S. F Amps: 5.6/2.8
- Nameplate: 080573
- Overrlung Ld.: 625
- Winding: C554115
- GROUP: 3 I
- Paint: M1305027.01
Product Variants
| Product | Model | Rotation | Shaft Orientation | Overhung Load Capacity | Gear Ratio | Rpm | Full Load Amps | Insulation Class | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
107000.00 | CW/CCW | Parallel | 700 lbs.-ft. | 212:1 | 8 RPM | 5.4/2.7A | Class B | 11.92" | €1,425.26 | |
 |
107002.00 | Reconn | - | - | - | 26 RPM | 5.4/2.7A | Class B | - | €1,425.26 | |
 |
107003.00 | CW/CCW | Parallel | 700 lbs.-ft. | 95:1 | 18 RPM | 5.4/2.7A | Class B | 11.92" | €1,861.81 | |
 |
107004.00 | CW/CCW | Parallel | 700 lbs.-ft. | 143:1 | 12 RPM | 5.4/2.7A | Class B | 11.92" | €1,929.40 | |
 |
107007.00 | CW/CCW | Inline | 400 lbs.-ft. | 6:1 | 288 RPM | 6.2/3.1A | Class B | 12.7" | €1,844.24 | |
 |
107010.00 | Reconn | - | - | - | 59 RPM | 6.2/3.1A | Class B | - | €1,903.23 | |
 |
107011.00 | CW/CCW | Parallel | 650 lbs.-ft. | 42:1 | 41 RPM | 6.2/3.1A | Class B | 12.17" | €1,887.67 |
