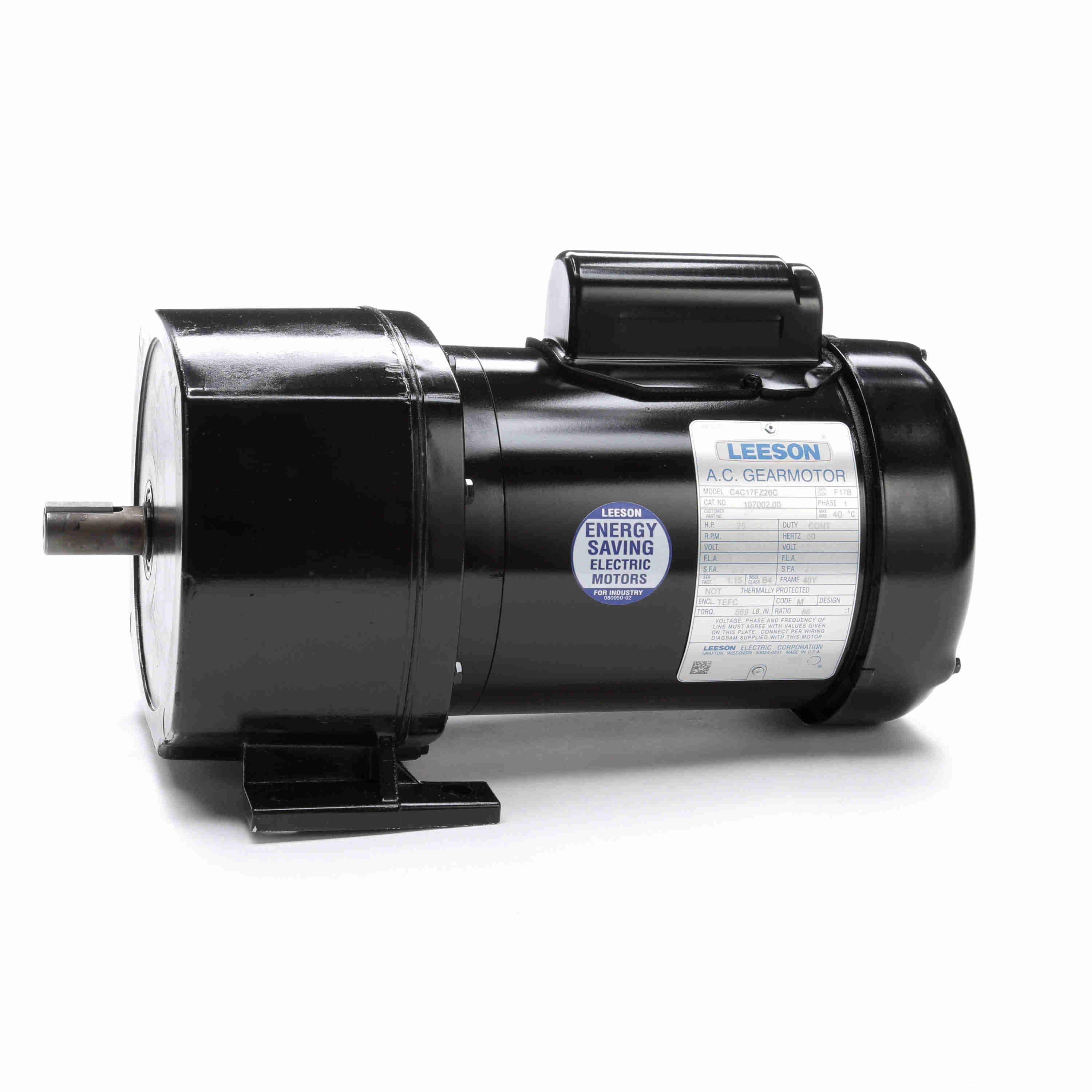

LEESON 107002.00 C4C17FZ26C Parallel Shaft Gearmotor, 0.25 HP, 1 Phase, 60 Hz, 115/208-230V, 26 RPM
1/4 hp
26 RPM
Get it by Tuesday, May 19
€1,425.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Code | M |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame | 48Y |
| Frame Type | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 5.4/2.7A |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Kw | 0.19 kW |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 1 |
| Product Datasheet | leeson-107002-00.pdf |
| Rotation | Reconn |
| Rpm | 26 RPM |
| Series | P1100 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Type | Parallel |
| Type | RP_CF |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .25
- S. F Amps: 5.6/2.8
- Nameplate: 080573
- Overrlung Ld.: 650
- Winding: C554115
- GROUP: 3 F
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Rotation | Shaft Orientation | Motor Type | Overhung Load Capacity | Operating Voltage | Gear Ratio | Base To Center Of Shaft | Inverter Rated | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145122.00 | CW/CCW | Parallel | 3-Phase | 237 lbs.-ft. | 208-230V AC | 103:1 | - | Yes | €1,364.95 | |
 |
096065.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 180:1 | - | Yes | €1,295.30 | |
 |
096066.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 58:1 | - | Yes | €936.95 | |
 |
096067.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 30:1 | - | Yes | €936.95 | |
 |
096068.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 20:1 | - | Yes | €1,135.44 | |
 |
096069.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 10:1 | - | Yes | €1,238.33 | |
 |
096070.00 | CW/CCW | Parallel | 3-Phase | 327 lbs.-ft. | 208-230/460V AC | 5:1 | - | Yes | €926.85 |
