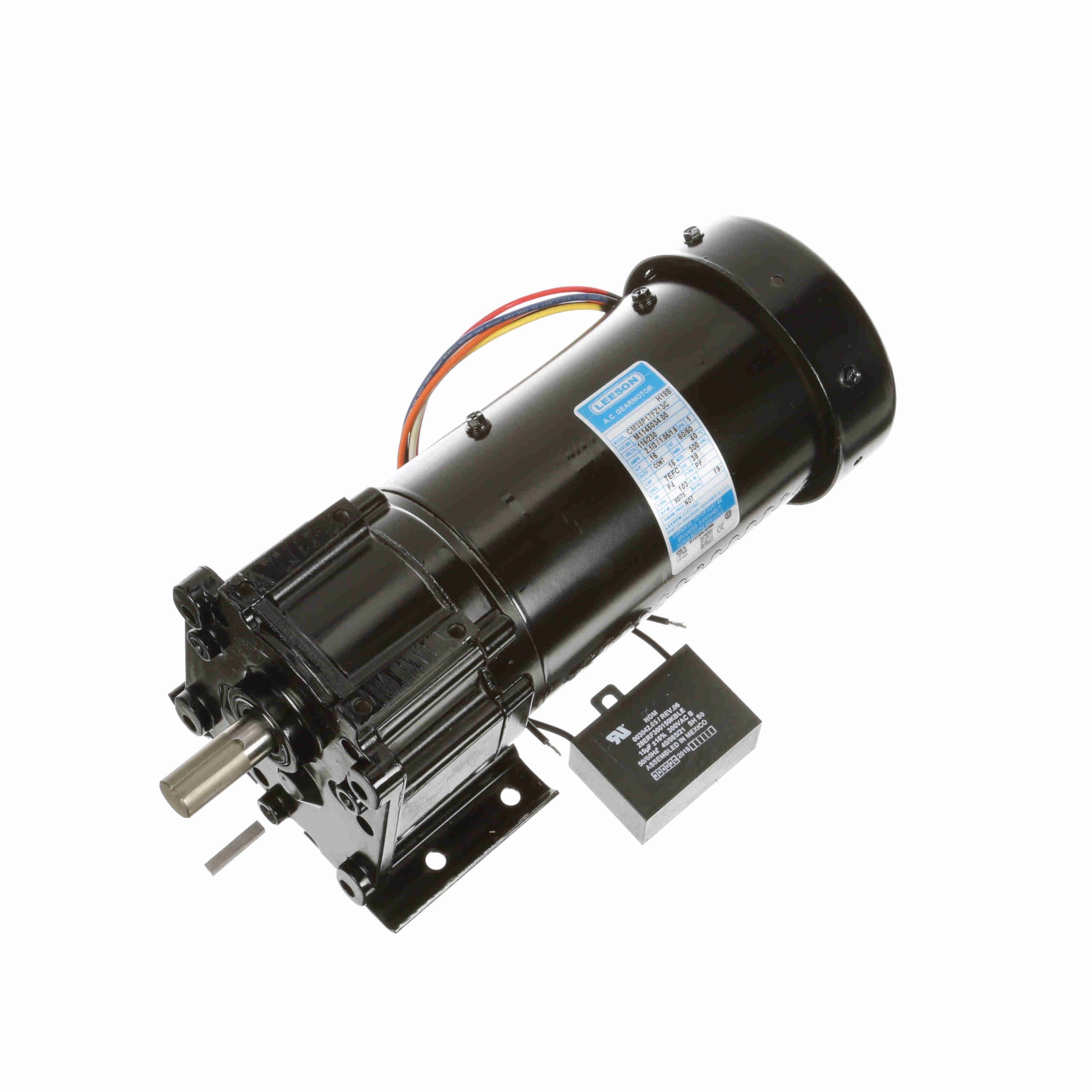

LEESON M1145034.00 CM38P17FZ13C Parallel Shaft Gearmotor, 0.16 HP, 1 Phase, 60 Hz, 115V, 90 RPM
0.16 hp
90 RPM
Get it by Wednesday, Aug 19
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,239.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 1.1/2.1A |
| Application | Power Transmission |
| Assembly | M1040419 |
| Base To Center Of Shaft | 3 1/2" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | D |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Explosion Proof | Brake Motors |
| Features | Permanent Split Capacitor Design Rated For 115/230Vac 60/50 Hz Input. Precision Machined In-Line Steel Gears. First Stage Steel Helical Gear Followed By Spur-Type Gears. Lubrication Is Permanent Semi-Fluid Grease, Reducing Possibility Of Leakage. Output Shafts Have Needle Bearings For High Load Capacities. Shafts Are Hardened Steel. Optional Conduit Box Available |
| Frame | 38 |
| Frame Size | 38 |
| Frame Suffix | Not Available |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.05/2.1A |
| Gear Material | Steel |
| Gear Ratio | 19:1 |
| Gear Type | Helical |
| Hp | 16/100 hp |
| Included Capacitor | Capacitor Included |
| Input Hp | 0.167 hp |
| Insulation Class | Class F |
| Keyway Depth | 1 1/16" |
| Keyway Width | 15/79" |
| Kw | 0.12 kW |
| Length Less Shaft | 10.63" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Output Speed | 90 RPM |
| Max. Torque | 103 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center To Center Length | 1.5" |
| Mount Hole Center To Center Width | 4" |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Mounting Type | Horizontal Or Vertical Shaft Down , Special |
| Nameplate Speed | 90 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Opp Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030381 |
| Output Direction | Left Hand |
| Output Kw | 0.12 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Output Shaft Type | Hollow |
| Overall Height | 5.13" |
| Overall Length | 12.13" |
| Overall Width | 5.63" |
| Overhung Load Capacity | 237 lbs.-ft. |
| Overrlung Ld. | 237 lbs. |
| Packaging | M1307027.01 |
| Phase | 1 |
| Product Datasheet | leeson-m1145034-00.pdf |
| Rotation | CW, CCW |
| Rotation Type | Reversible |
| Series | P240 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Inline |
| Shaft Type | Parallel |
| Speed | 90 RPM |
| Test Card | 04 |
| Thermal Protection | None |
| Torque | 103 lbs.-in. |
| Type | PF |
| Voltage | 115V |
| Winding | MP38419 |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Product Details:
- HPKW: .16/.16
- Nameplate: M1004149.02
- Overrlung Ld.: 237
- Winding: MP38419
- GROUP: 3 D
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Phase | Full Load Amps | Frequency | Voltage | Mounting | Overhung Load Capacity | Nameplate Speed | Output Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145122.00 | 3 | 0.72A | 50/60 Hz | 190V | All Position Except Shaft Up | 237 lbs.-ft. | 16 RPM | 5/8" | €1,366.90 | |
 |
096065.00 | 3 | 1/0.5A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 9 RPM | 3/4" | €1,297.11 | |
 |
096066.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 29 RPM | 3/4" | €936.95 | |
 |
096067.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 58 RPM | 3/4" | €936.95 | |
 |
096068.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 85 RPM | 3/4" | €1,137.02 | |
 |
096069.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 173 RPM | 3/4" | €1,240.08 | |
 |
096070.00 | 3 | 1.2/0.6A | 60 Hz | 208-230/460V | All Position Except Shaft Up | 327 lbs.-ft. | 345 RPM | 3/4" | €926.85 |
