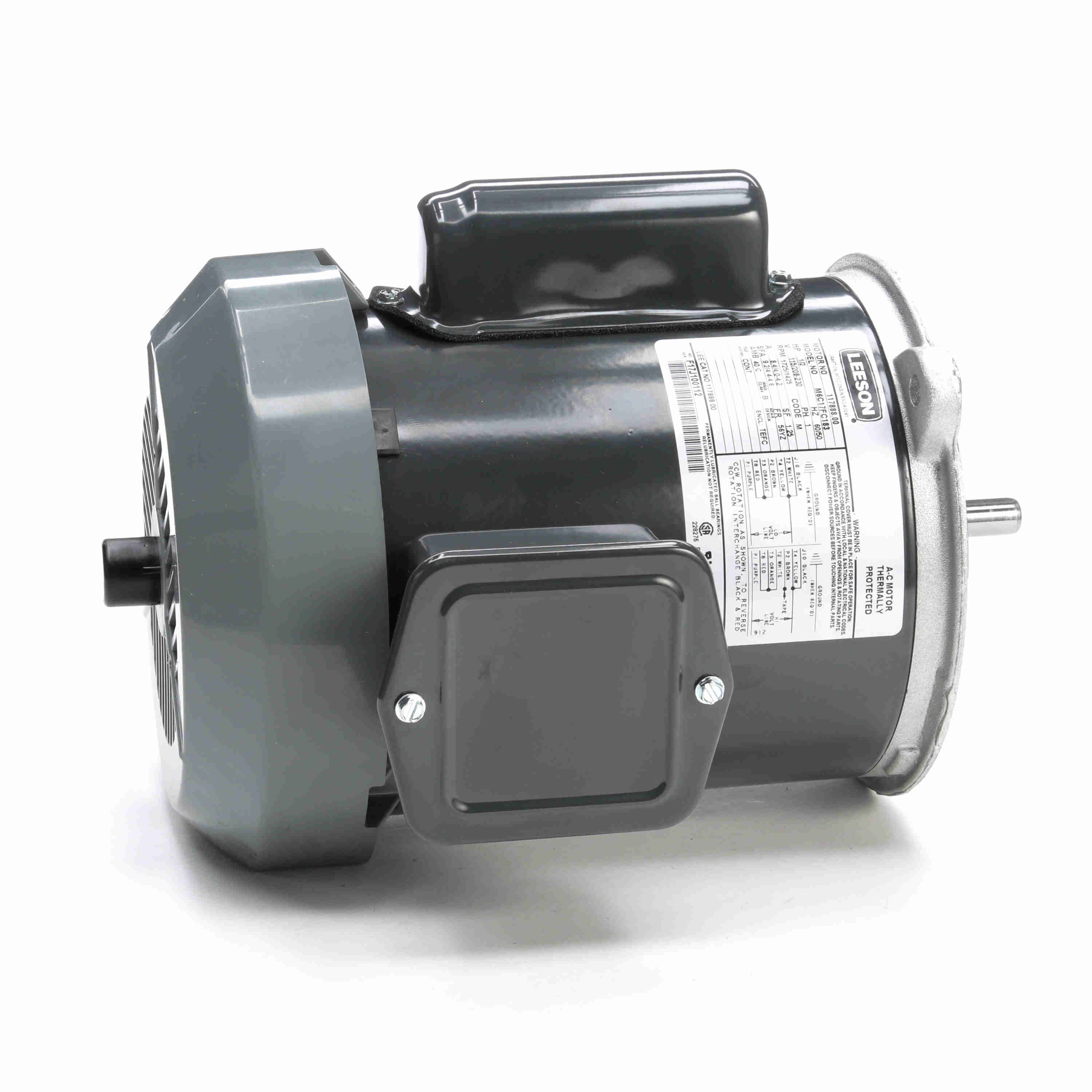

LEESON 117888.00 Auger Drive Motor, 0.50 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
1/2 hp
56YZ
Get it by Tuesday, Jul 7
€375.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | 9/16" |
| Amps | 8.4/4-4.2A |
| Application | Farm Duty |
| De Bearing Size | 6203 |
| De Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 59.9% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56YZ |
| Frame Material | Rolled Steel |
| Frame Type | 56YZ |
| Frequency | 60 Hz |
| Full Load Amps | 4-4.2/8.4A |
| Height | 9 1/2" |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | M |
| Kw | 0.37 kW |
| Length | 15 11/25" |
| Max. Ambient Temp. | 104°F |
| Max. Speed | 1725 RPM |
| Motor Application | Farm Duty |
| Motor Mounting Type | Face |
| Motor Orientation | Any |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW, CCW |
| Motor Sub Application | Auger |
| Motor Thermal Protection | Manual |
| Mounting Type | Face |
| Nameplate Speed | 1800 RPM |
| No. Of Phase | 1 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Phase | 1 |
| Power Factor | 70 |
| Product Datasheet | leeson-117888-00.pdf |
| Service Factor | 1.25 |
| Shaft Extension | 0.5 x 1.81-1.50 Min Lg Cross Milled Flat |
| Speed | 1700-1800 RPM |
| Starting Method | SM |
| Thermal Protection | Manual |
| Usable @ 208v | No |
| Voltage | 115-230V |
| Width | 10.19" |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 39.22 |
| Ship width (cm) | 25.88 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Shaft Design | Motor Thermal Protection | Motor Application | Motor Mounting Type | Motor Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KHC39QN9575T | 115/208-230V AC | 1/4 hp | 48 | Flat | Auto | Farm Duty | Cradle Base | 1 | €295.57 | |
 |
5KH49MN6057S | 115V AC | 1/4 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €508.80 | |
 |
5KH33JNA500S | 115V AC | 1/3 hp | 48Z | Flat | Automatic | Farm Duty | Cradle Base | 1.35 | €266.17 | |
 |
5KH42JN0328S | 115/208-230V AC | 1/2 hp | 56 | Keyed | Auto | Farm Duty | Cradle Base | 1 | €473.27 | |
 |
5KCP36NNB059S | 115/230V AC | 1/2 hp | 48Z | Flat | Auto | Farm Duty | Cradle Base | 1 | €265.46 | |
 |
5KCP49UN9837S | 208-230V AC | 1/2 hp | 56Y | Keyed | Automatic | Farm Duty | Face | 1 | €433.09 | |
 |
5KCR49SN0493S | 115/208-230V AC | 1 hp | 56 | Keyed | Automatic | Farm Duty | Cradle Base | 1.3 | €543.50 |
