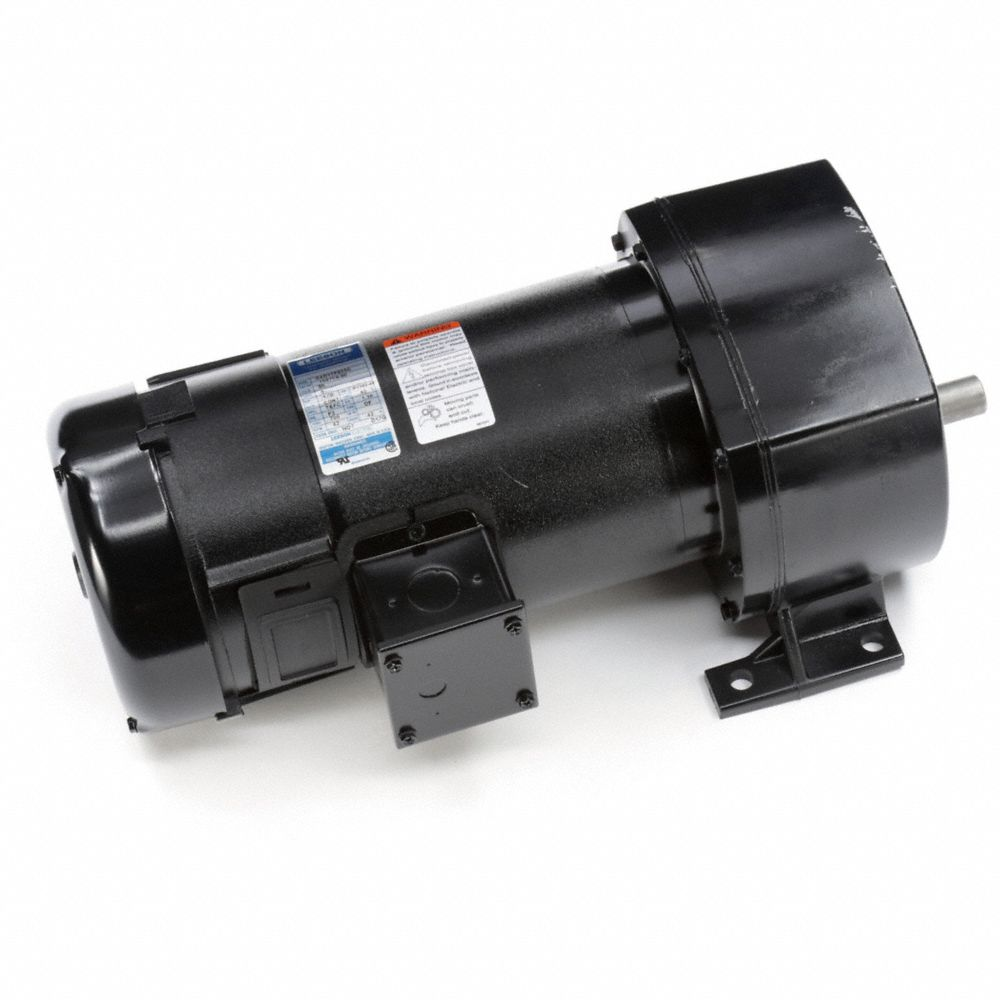

LEESON 108709.00 C4D17FZ25C Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 42 RPM, 705 Inch-lb Torque, 5 A

Item: EA6QEEModel: 108709.00Cross Ref: 794AX0 / C4D17FZ25C
Check Availability
In Stock
HP
RPM

Get it by Friday, Aug 14

€1,963.80
5.00% off
€1,865.62 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Parallel
Gear Ratio 42:1
Input Hp 1/2 hp
Max. Torque 705 lbs.-in.
Motor Enclosure Totally Enclosed Fan Cooled
Nameplate 31-50 RPM
Operating Voltage 90V DC
Output Shaft Height 3"
Overhung Load Capacity 650 lbs.
Product Datasheet leeson-108709-00.pdf
Shaft Orientation Parallel

Shipping Info:

Ship weight (kg) 18
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelNameplate SpeedVoltageFull Load AmpsOperating VoltageOverhung Load CapacityMax. TorqueSpeedMax. Output SpeedPrice
LEESON 108731.00 Parallel Shaft Gearmotors, Parallel, 12V DC, TEFC, 42 RPM, 705 in-lb Max Torque, 42, 1 | CR8PPY 794AX4 108731.0042 RPM12V40A12V DC650 lbs.-ft.705 lbs.-in.42 RPM42 RPM€1,857.31
LEESON 108712.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 135 RPM, 210 in-lb Max Torque, 13, 1 | CR8PQP 794AX3 108712.00135 RPM90V5A90V DC575 lbs.-ft.210 lbs.-in.135 RPM135 RPM€1,824.86
LEESON 108707.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 18 RPM, 1, 112 in-lb Max Torque, 95, 1 | CR8PQQ 794AW8 108707.0018 RPM90V5A90V DC700 lbs.-ft.1112 lbs.-in.18 RPM18 RPM€2,143.21
LEESON 108708.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 33 RPM, 822 in-lb Max Torque, 53, 1 | CR8PQR 794AW9 108708.0033 RPM90V5A90V DC650 lbs.-ft.822 lbs.-in.33 RPM33 RPM€1,857.31
LEESON 108710.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 60 RPM, 476 in-lb Max Torque, 29, 1 | CR8PQT 794AX1 108710.0060 RPM90V5A90V DC625 lbs.-ft.476 lbs.-in.60 RPM60 RPM€2,079.57
LEESON 108711.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TEFC, 92 RPM, 320 in-lb Max Torque, 19, 1 | CR8PQU 794AX2 108711.0092 RPM90V5A90V DC575 lbs.-ft.320 lbs.-in.92 RPM92 RPM€2,046.67
