Panel Disconnect Switches

Filter

SQUARE D -

Load Break Switches

SQUARE D V1A
SQUARE D V5B
StyleModelVoltageConventional Free Air Thermal AmpsRated Short Circuit Making CapacityConventional Enclosed Thermal AmpsHeightRated Operational AmpsMounting SupportHpPrice
AV1600V AC32A1 kA 400V At Ipeak25A2.9"21.8ASymmetrical Rail, Plate10 hp @ 600V AC€165.92
AV2600V AC40A1 kA 400V At Ipeak32A2.9"29APlate, Symmetrical Rail20 hp @ 600V AC€256.61
AV3600V AC63A2.1 kA 400V At Ipeak50A3.3"41.5APlate, Symmetrical Rail40 hp @ 600V AC€325.12
AV4600V AC80A2.1 kA 400V At Ipeak63A3.3"57APlate, Symmetrical Rail50 hp @ 600V AC€368.78
BV5600V AC125A2.8 kA 400V At Ipeak100A4.9"68.5ASymmetrical Rail, Plate60 hp @ 600V AC€478.07
SQUARE D -

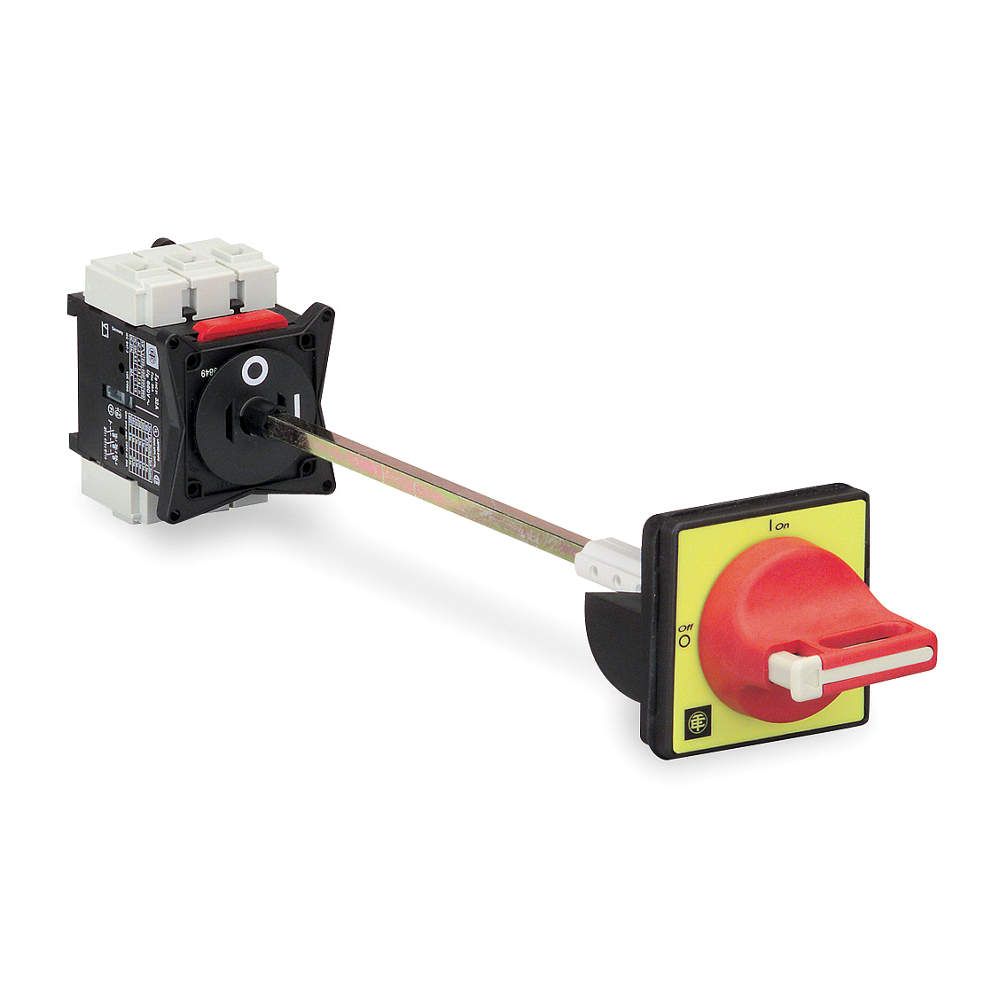

Nonfusible Door Mount Loadbreak Switch

SQUARE D VCCF1A
StyleModelConventional Free Air Thermal AmpsRated Short Circuit Making CapacityConventional Enclosed Thermal AmpsHeightRated Operational AmpsAmpsRated Short Time Withstand AmpsRated Operational Power In WPrice
AVCCF132A1 kA 400V At Ipeak25A2.9"21.8A20A384A @ 400V @ 1 sec.11 kW @ 500V (AC-23A), 15 kW @ 690V (AC-23A), 7.5 kW @ 500V (AC-3), 7.5 kW @ 690V (AC-3), 1.5 kW @ 230-240V (AC-3), 5.5 kW @ 230-240V (AC-23A), 11 kW @ 400-415V (AC-23A), 7.5 kW @ 400-415V (AC-3)€338.94
AVCCF240A1 kA 400V At Ipeak32A2.9"29A25A480A @ 400V @ 1 sec.11 kW @ 690V (AC-3), 15 kW @ 690V (AC-23A), 11 kW @ 400-415V (AC-3), 15 kW @ 500V (AC-3), 18.5 kW @ 500V (AC-23A), 5.5 kW @ 230-240V (AC-3), 7.5 kW @ 230-240V (AC-23A), 15 kW @ 400-415V (AC-23A)€416.99
AVCCF363A2.1 kA 400V At Ipeak50A3.3"41.5A45A756A @ 400V @ 1 sec.11 kW @ 230-240V (AC-3), 22 kW @ 500V (AC-3), 22 kW @ 690V (AC-23A), 30 kW @ 500V (AC-23A), 18.5 kW @ 400-415V (AC-3), 18.5 kW @ 690V (AC-3), 15 kW @ 230-240V (AC-23A), 22 kW @ 400-415V (AC-23A)€496.05
