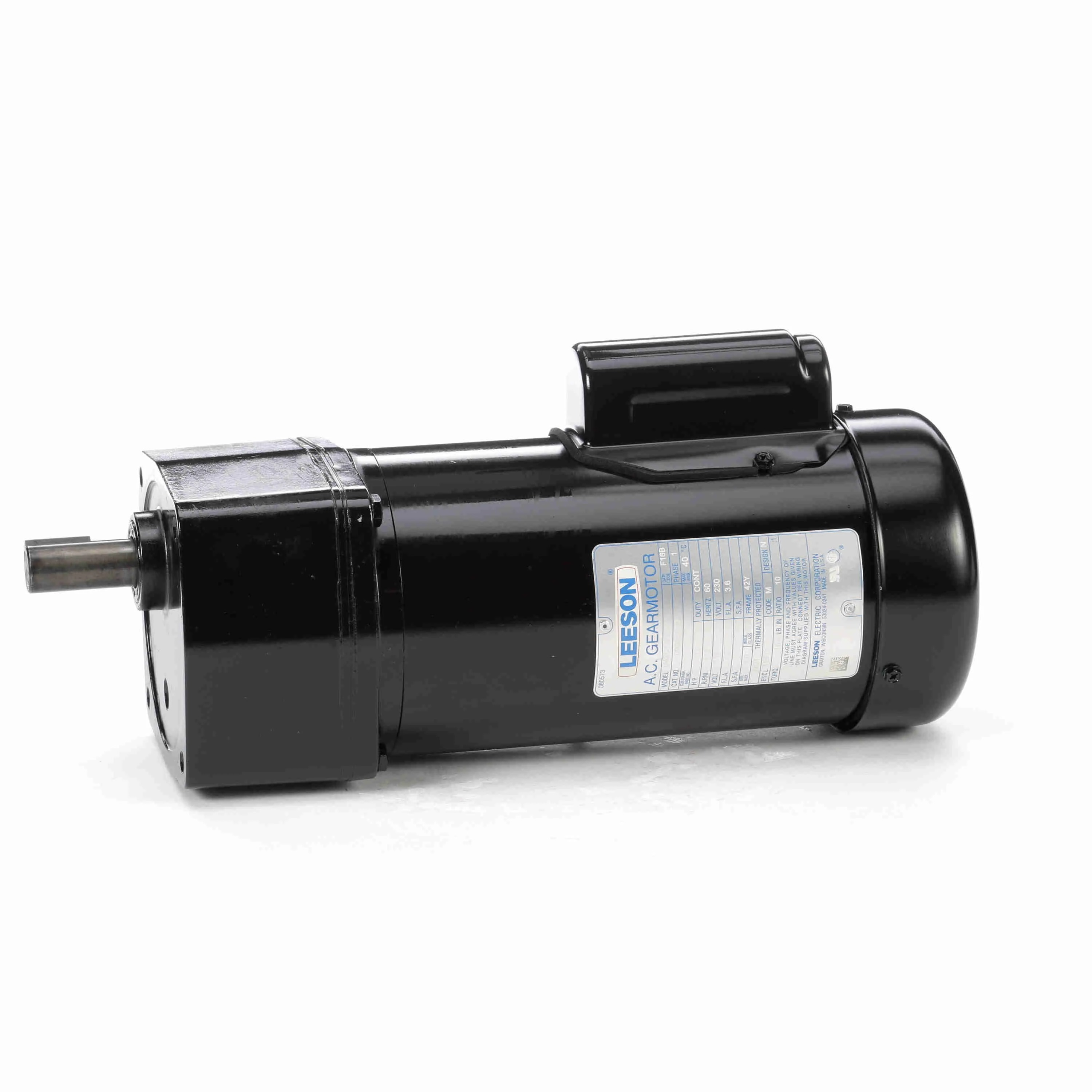

LEESON 096051.00 C42C17FZ6B Parallel Shaft Gearmotor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 173 RPM
1/3 hp
173 RPM
Get it by Friday, Jul 3
5.00% off
€1,374.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 7.2/3.6A |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | M |
| Design | No |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Frame | 42Y |
| Frame Length | 7 1/2" |
| Frame Type | 42Y |
| Frequency | 60 Hz |
| Full Load Amps | 7.2/3.6A |
| Gear Ratio | 10:1 |
| Height | 10 22/25" |
| Housing Material | Die Cast Aluminum |
| Hp | 33/100 hp |
| Included | Conduit Box |
| Included Capacitor | Capacitor Included |
| Included Junction/conduit Box | Yes |
| Input Hp | 0.33 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kva Code | M |
| Kw | 0.25 kW |
| Length | 19 1/2" |
| Length Less Shaft | 12.57" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Output Speed | 173 RPM |
| Max. Torque | 109 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 42Y |
| Motor Insulation Class | Class F |
| Motor Type | Capacitor Start |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Mounting Type | Horizontal Or Vertical Shaft Down |
| Nameplate Speed | 173 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Opp Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Dia. | 3/4" |
| Output Shaft Length | 1 5/8" |
| Overall Length | 14.57" |
| Overall Width | 6.96" |
| Overhung Load Capacity | 300 lbs.-ft. |
| Packaging | B |
| Phase | 1 |
| Product Datasheet | leeson-096051-00.pdf |
| Rotation | CW, CCW |
| Seal Type | Heavy Duty Industrial |
| Series | PE350 |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 5/8" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Speed | 173 RPM |
| Standards | Csa, Ul |
| Starting Torque | 109 lbs.-in. |
| Type | TF |
| Voltage | 115/230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 10.44 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .33
- Nameplate: 080573
- Overrlung Ld.: 300
- Winding: C4747
- GROUP: 3 B
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Rotation | Shaft Orientation | Motor Type | Max. Torque | Overhung Load Capacity | Operating Voltage | Gear Ratio | Base To Center Of Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145122.00 | CW, CCW | Parallel | 3-Phase | 391 lbs.-in. | 237 lbs.-ft. | 208-230V AC | 103:1 | - | €1,366.90 | |
 |
096065.00 | CW, CCW | Parallel | 3-Phase | 341 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 180:1 | - | €1,297.11 | |
 |
096066.00 | CW, CCW | Parallel | 3-Phase | 300 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 58:1 | - | €936.95 | |
 |
096067.00 | CW, CCW | Parallel | 3-Phase | 244 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 30:1 | - | €936.95 | |
 |
096068.00 | CW, CCW | Parallel | 3-Phase | 165 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 20:1 | - | €1,137.02 | |
 |
096069.00 | CW, CCW | Parallel | 3-Phase | 92 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 10:1 | - | €1,240.08 | |
 |
096070.00 | CW, CCW | Parallel | 3-Phase | 50 lbs.-in. | 327 lbs.-ft. | 208-230/460V AC | 5:1 | - | €926.85 |
