WEG General Purpose Single Phase Motors, Footed, TEFC
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1| Style | Model | Voltage | Hp | Nameplate Rpm | Full Load Amps | Frame | Rpm | Duty Cycle | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 00218ES1B145TC | - | - | - | - | - | - | - | - | €780.69 | |
| B | .5018ES1RCHO56 | 115-230V | - | - | - | 56 | 1700-1800 RPM | Continuous | 6.4/3.2A | €348.38 | |
| C | .5012ES1B56-S | 115/208-230V | 1/2 hp | - | - | 56 | 1100-1200 RPM | Continuous | 4.4/1.9-2.2A | €610.86 | |
| C | 00136ES1B56-S | 115/208-230V | - | - | - | 56 | 3400-3600 RPM | Continuous | 5.5/2.37-2.75A | €448.60 | |
| D | .2536ES1BW56-S | 115/208-230V | 1/4 hp | - | - | W56 | 3400-3600 RPM | Continuous | 3.2/1.38-1.6A | €306.63 | |
| E | .2518ES1BW56-S | 115/208-230V | 1/4 hp | - | - | W56 | 1700-1800 RPM | Continuous | 4/1.72-2A | €318.55 | |
| F | .7518ES1B56C-S | 115/208-230V | 3/4 hp | 1745 RPM | - | 56C | 1700-1800 RPM | Continuous | 8/3.45-4A | €604.80 | |
| G | .5018ES1BCH56 | 115/208-230V | - | - | - | 56 | 1700-1800 RPM | Continuous | 6.4/0-3.2A | €342.43 | |
| A | 00158ES1BOF56C-S | 115/208-230V | 1 1/2 hp | - | - | 56C | 1800 RPM | - | - | - | RFQ
|

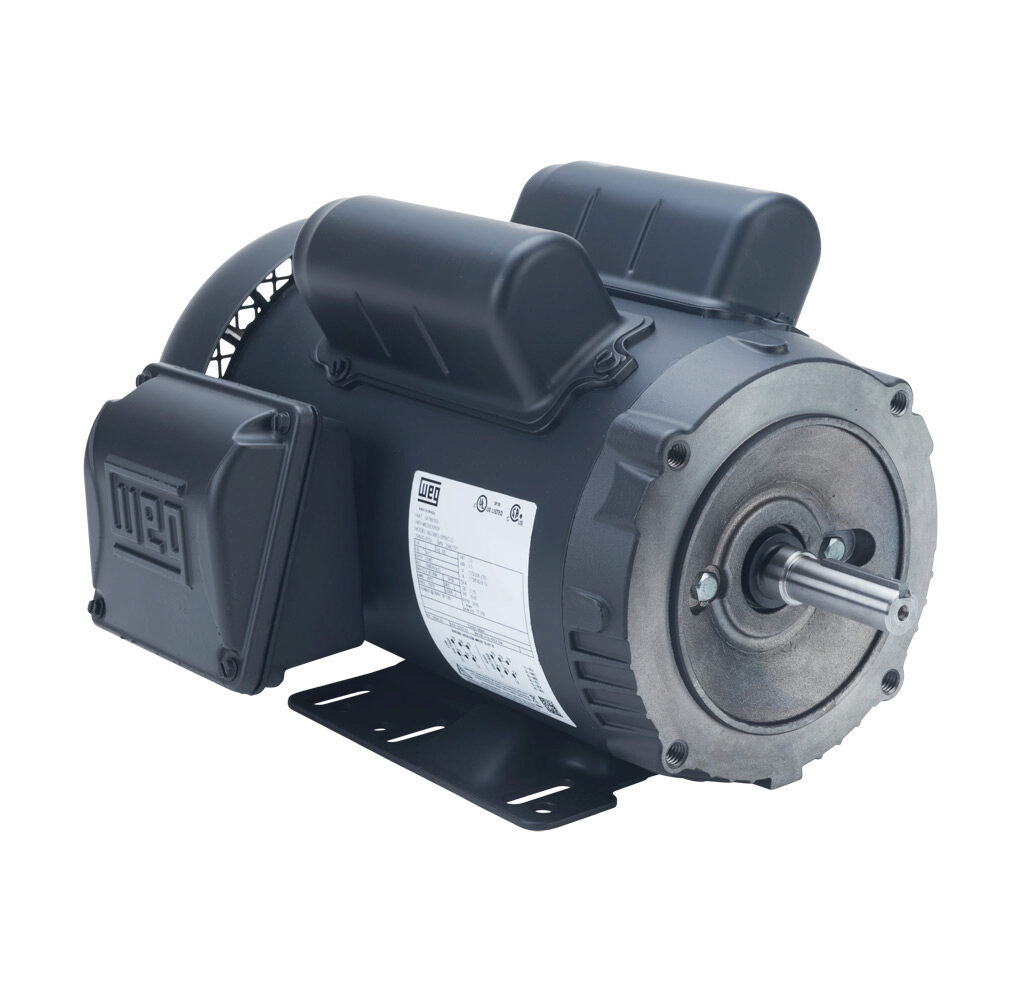

| H | 00236ES1B56C-S | 115/208-230V AC | 2 hp | 3495 RPM | - | 56HC | 3400-3600 RPM | S1 | 5/2.16-2.5A | €961.20 | |

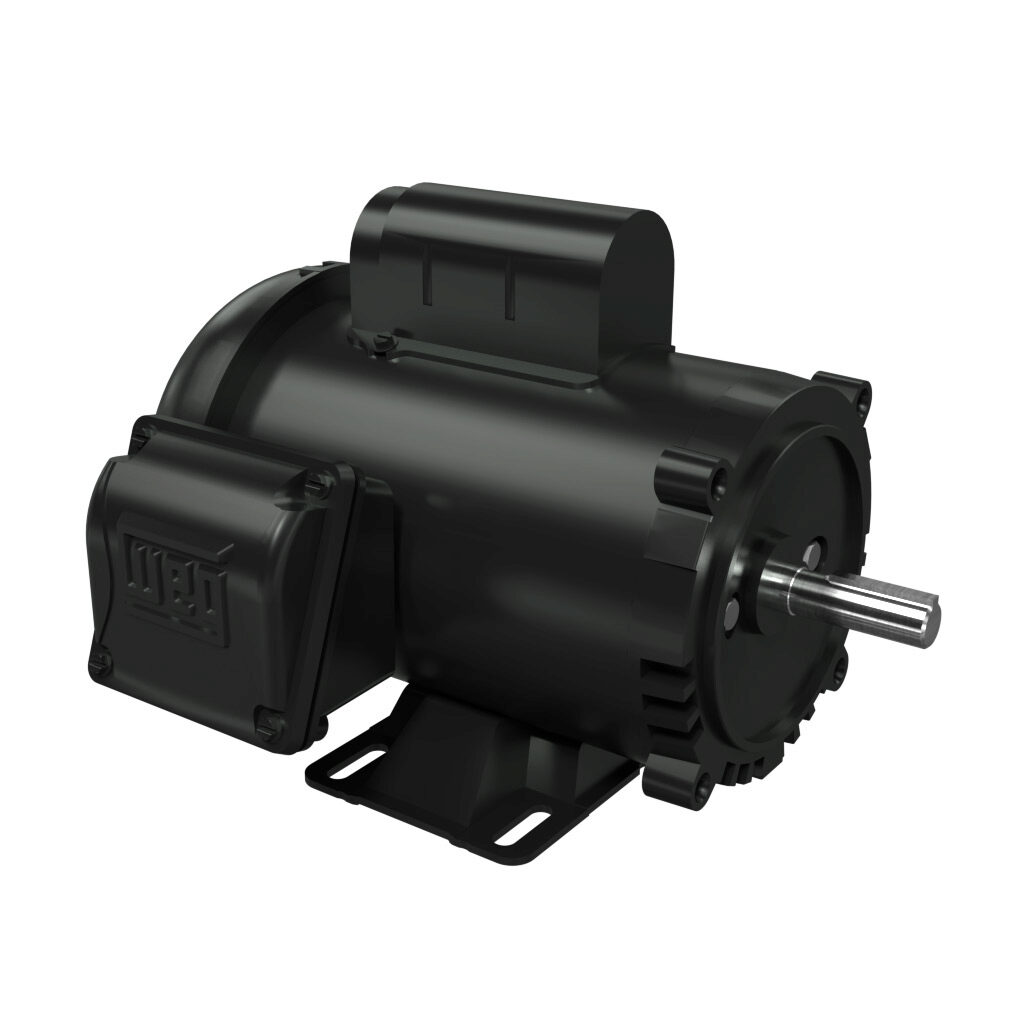

| I | .5018ES1BW56C-S | 115/208-230V AC | - | 1730 RPM | - | W56C | 1700-1800 RPM | S1 | 6.6/2.85-3.3A | €397.29 | |
| J | .5036ES1BW56C-S | 115/208-230V AC | - | 3500 RPM | - | W56C | 3400-3600 RPM | S1 | 4.8/2.07-2.4A | €373.43 | |
| K | .7512ES1B56-S | 115/208-230V AC | 3/4 hp | - | - | 56 | 1100-1200 RPM | S1 | 6/2.59-3A | €773.10 | |
| L | 00158ES1B56C-S | 115/208-230V AC | - | 1745 RPM | - | 56HC | 1700-1800 RPM | S1 | 8.6/3.71-4.3A | €781.20 | |
| M | 00136ES1B56C-S | 115/208-230V AC | 1 hp | 3500 RPM | 10.1/5.64-56A | 56C | 3400-3600 RPM | S1 | 5.5/2.37-2.75A | €534.99 | |
| N | .7536ES1B56C-S | 115/208-230V AC | 3/4 hp | 3500 RPM | - | 56C | 3400-3600 RPM | S1 | 4/1.72-2A | €577.80 | |

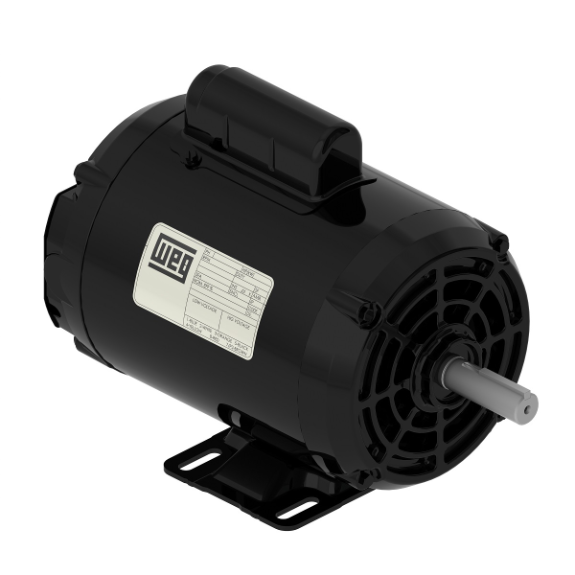

| O | 00236ES1BOL56-S | 115/208-230V AC | 2 hp | - | - | 56 | 3400-3600 RPM | S1 | 5/2.16-2.5A | €706.31 | |
| D | .5036ES1BOLW56-S | 115/208-230V AC | 1/2 hp | - | - | W56 | 3400-3600 RPM | S1 | 2.07-2.4/4.8A | €377.02 | |
| P | .5018ES1BOW56C-S | 115/208-230V AC | - | - | - | W56C | 1700-1800 RPM | S1 | 6.6/2.85-3.3A | €415.18 | |
| K | 00156ES1BOL56-S | 115/208-230V AC | 1 1/2 hp | - | - | 56 | 3400-3600 RPM | S1 | 4.6/1.98-2.3A | €552.39 | |

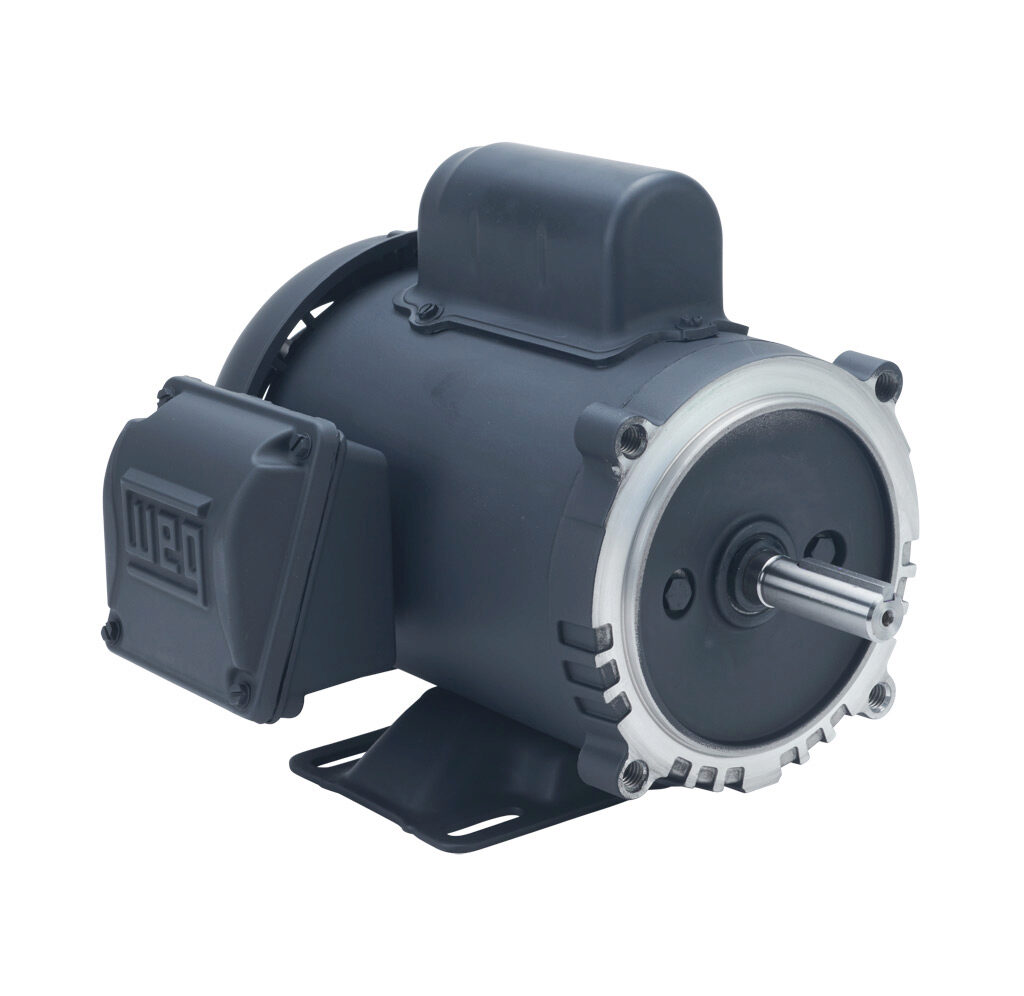

| Q | .3336ES1BW56C-S | 115/208-230V AC | - | 3490 RPM | - | W56C | 3400-3600 RPM | S1 | 3.6/1.55-1.8A | €471.60 | |
| R | .2518ES1BW56C-S | 115/208-230V AC | - | 1735 RPM | - | W56C | 1700-1800 RPM | S1 | 4/1.72-2A | €471.60 | |
| S | .3318ES1BW56C-S | 115/208-230V AC | - | 1735 RPM | - | W56C | 1700-1800 RPM | S1 | 5.4/2.33-2.7A | €496.80 | |
| D | .5036ES1BW56-S | 115/208-230V AC | 1/2 hp | - | - | W56 | 3400-3600 RPM | S1 | 4.8/2.07-2.4A | €338.84 | |
| D | .3336ES1BW56-S | 115/208-230V AC | 1/3 hp | - | - | W56 | 3400-3600 RPM | S1 | 3.6/1.55-1.8A | €318.55 | |
| T | 00158ES1B56-S | 115/208-230V AC | 1 1/2 hp | - | - | 56H | 1700-1800 RPM | S1 | 8.6/3.71-4.3A | €544.04 | |
| U | .7512ES1B56C-S | 115/208-230V AC | 3/4 hp | - | - | 56HC | 1100-1200 RPM | S1 | 6/2.59-3A | €798.17 | |
| K | 00136ES1BOL56-S | 115/208-230V AC | 1 hp | - | - | 56 | 3400-3600 RPM | S1 | 5.5/2.37-2.75A | €486.77 | |
| D | .3318ES1BW56-S | 115/208-230V AC | - | - | - | W56 | 1700-1800 RPM | S1 | 5.4/2.33-2.7A | €337.63 | |
| D | .5018ES1BW56-S | 115/208-230V AC | 1/2 hp | - | - | W56 | 1700-1800 RPM | S1 | 6.6/2.85-3.3A | €372.25 | |
| V | 00118ES1B56C-S | 115/208-230V AC | 1 hp | 1745 RPM | 13.6/7.52-6.8A | 56C | 1700-1800 RPM | S1 | 9.6/4.14-4.8A | €660.25 | |
| W | 00118ES1BO56C-S | 115/208-230V AC | 1 hp | - | - | 56C | 1700-1800 RPM | S1 | 9.6/4.14-4.8A | €523.75 | |
| X | 00156ES1B56C-S | 115/208-230V AC | - | 3500 RPM | - | 56C | 3400-3600 RPM | S1 | 4.6/1.98-2.3A | €541.66 | |
| K | 00156ES1B56-S | 115/208-230V AC | 1 1/2 hp | - | - | 56 | 3400-3600 RPM | S1 | 4.6/1.98-2.3A | €515.42 | |
| Y | .5012ES1B56C-S | 115/208-230V AC | 1/2 hp | - | - | 56C | 1100-1200 RPM | S1 | 4.4/1.9-2.2A | €638.29 | |
| K | .7536ES1BOL56-S | 115/208-230V AC | 3/4 hp | - | - | 56 | 3400-3600 RPM | S1 | 4/0-2A | €392.53 | |
| T | 00236ES1B56-S | 115/208-230V AC | 2 hp | - | - | 56H | 3400-3600 RPM | S1 | 5/2.16-2.5A | €669.33 | |
| K | .7536ES1B56-S | 115/208-230V AC | 3/4 hp | - | - | 56 | 3400-3600 RPM | S1 | 4/1.72-2A | €354.35 | |
| Z | .7518ES1B56-S | 115/208-230V AC | 3/4 hp | - | - | 56 | 1700-1800 RPM | S1 | 8/3.45-4A | €415.18 | |
| A1 | .2536ES1BW56C-S | 115/208-230V AC | - | 3485 RPM | - | W56C | 3400-3600 RPM | S1 | 3.2/1.38-1.6A | - | RFQ
|
| B1 | 00158ES1RFD56H-S | 115/230V | 1 1/2 hp | - | - | 56H | 1700-1800 RPM | Continuous | 8.6/4.3A | €598.94 | |
| C1 | 00118ES1RFD56-S | 115/230V AC | 1 hp | - | - | 56 | 1700-1800 RPM | S1 | 9.6/4.8A | €470.06 | |
| C1 | .7518ES1RFD56-S | 115/230V AC | 3/4 hp | - | - | 56 | 1700-1800 RPM | S1 | 8/4A | €425.94 | |
| A | .3318ES1RFD56-S | 115/230V AC | 33/100 hp | - | - | 56 | 1800 RPM | - | - | - | RFQ
|
| B1 | 00218ES1RFD56H-S | 115/230V AC | 2 hp | - | - | 56H | 1700-1800 RPM | S1 | 12.2/6.1A | €631.13 | |
| A | .5018ES1RFD56-S | 115/230V AC | 1/2 hp | - | - | 56 | 1800 RPM | - | - | - | RFQ
|
| D1 | 00118ES1EOL143T | 208-230/460V | - | - | - | 143T | 1700-1800 RPM | S1 | 2.75/4.74-5.5A | €440.02 | |
| E1 | 00336ES1E145TC-S | 208-230/460V AC | 3 hp | 3490 RPM | - | 143/5TC | 3400-3600 RPM | S1 | 3.45-4/2A | €1,400.40 |
