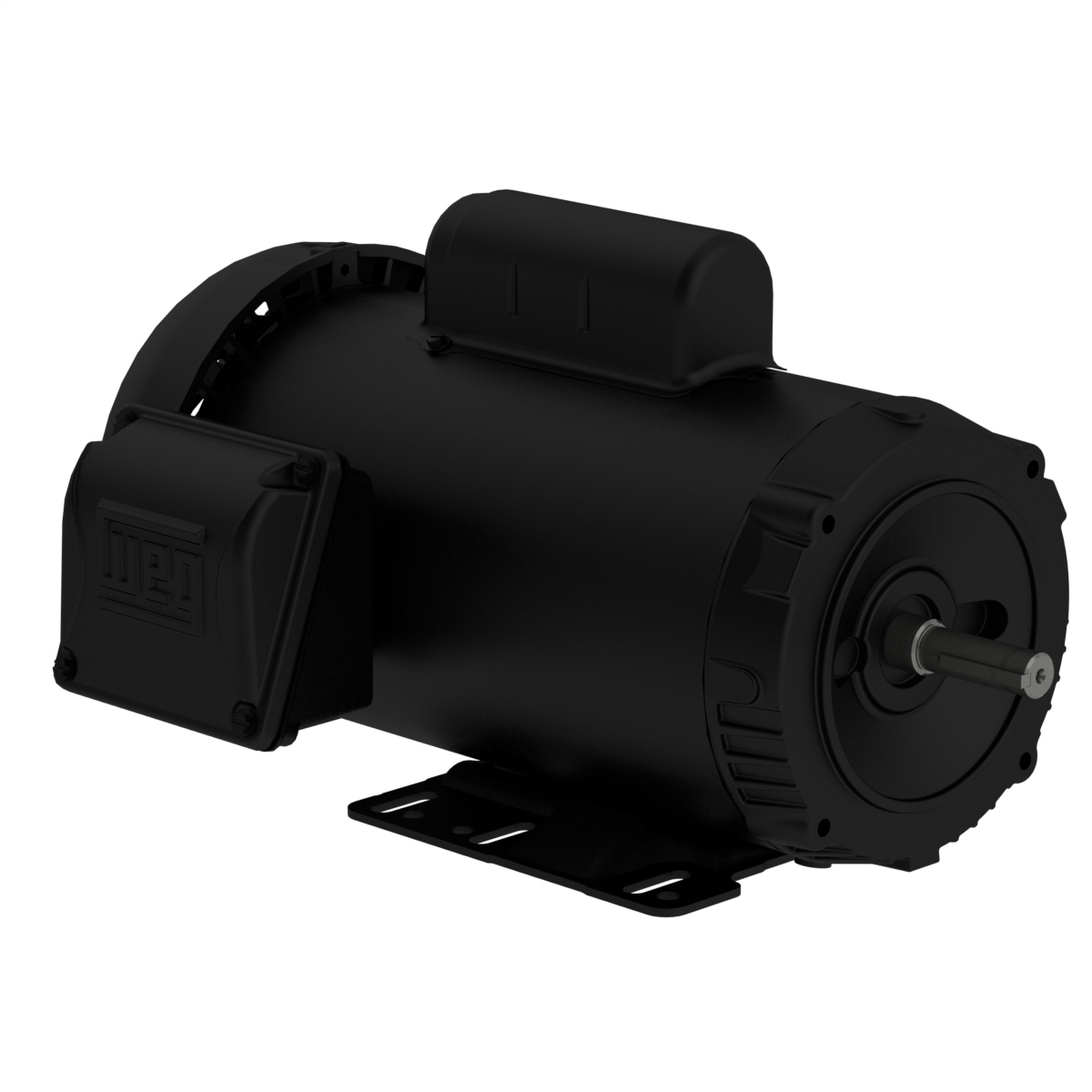

WEG .5018ES1BOW56C-S Electric Motor, 0.5Hp, 60Hz, 1800 Rpm | BB9VLG

WEG .5018ES1BOW56C-S 14148011 General Purpose Motor, TEAO/TEFC Rolled Steel W56C Frame, 0.5 HP, 1730 RPM, 115/208-230V, Foot-mounted, Auto Overload protector

Item: BB9VLGModel: .5018ES1BOW56C-SCross Ref: 14148011
Check Availability
In Stock

Get it by Tuesday, Jul 7

€415.18 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 4-4.42/8A , 8/4.42-4A
Balancing Method Not Balanced
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 270%
Cable Press Material Sem
Cold Locked Rotor Time 18 sec.
Design No
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 44% , 52%
Efficiency 75% 59%
Efficiency @ 1 % 63%
Efficiency @ 100% 64%
Efficiency @ 75 % 54%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Industrial Polymer , Polymer
Fan Material Plastic
Flange C
Flange Type C
Frame W56C
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 10 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 22.8-25.2/45.6A , 45.6/25.2-22.8A
Locked Rotor Time (cold) 18 sec.
Locked Rotor Time(hot) 10 sec.
Locked Rotor Torque 320%
Lrc 5.7X(Code M)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.0479 lbs.-sq. ft.
Moment Of Inertia (j) 0.0479 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1730 RPM
Mounting F-1 , Foot Mounted
No Load Amps 2.85-3.3/6.6A , 6.6/2.85-3.3A
No. Of Poles 4
Noise Level 52 dBA
Output 1/2 hp
Output Rating 1/2 hp
Overload Protection Automatic
Overload Protector Automatic
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 1
Power Factor 100% 0.63
Power Factor 50% 0.44
Power Factor 75% 0.54
Power Factor @ 1 % 64
Power Factor @ 50 % 52
Power Factor @ 75 % 59
Resilient Base Without
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.89%
Speed 1700-1800 RPM , 1730 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 1.52 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208-230V AC

Shipping Info:

Ship weight (kg) 10.8
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelVoltageHpFull Load AmpsFrameDuty CycleNo. Of PolesNo Load AmpsMountingPrice
WEG 00158ES1B56C-S Electric Motor, 1 1/2Hp, 60 HzHz, 1800 Rpm | BB2CJB 00158ES1B56C-S115/208-230V AC--56HCS148.6/3.71-4.3AFoot Mounted€781.20
WEG 00218ES1RFD56H-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BB4XPH 00218ES1RFD56H-S115/230V2 hp-56HS1412.2/6.1AFoot Mounted€631.13
WEG .5018ES1BCH56 Electric Motor, 1/2Hp, 60Hz, 1800 Rpm | BB6UNY .5018ES1BCH56115/208-230V AC1/2 hp-56Continuous46.4/0-3.2AFoot Mounted€342.43
WEG 00156ES1B56-S Electric Motor, 1 1/2Hp, 60Hz, 3600 Rpm | BB7FCT 00156ES1B56-S115/208-230V AC1 1/2 hp-56S124.6/1.98-2.3AFoot Mounted€515.42
WEG .7518ES1RFD56-S Electric Motor, 0.75Hp, 60Hz, 1800 Rpm | BB7QGN .7518ES1RFD56-S115/230V3/4 hp-56S148/4AFoot Mounted€425.94
WEG .5018ES1BW56-S Electric Motor, 1/2Hp, 60 HzHz, 1730 Rpm | BB7RJG .5018ES1BW56-S115/208-230V AC1/2 hp-W56S146.6/2.85-3.3AFoot Mounted€372.25
WEG 00118ES1EOL143T Electric Motor, 1Hp, 60Hz, 1800 Rpm | BB8APV 00118ES1EOL143T208-230/460V1 hp-143TS142.75/4.74-5.5AF-1€440.02
