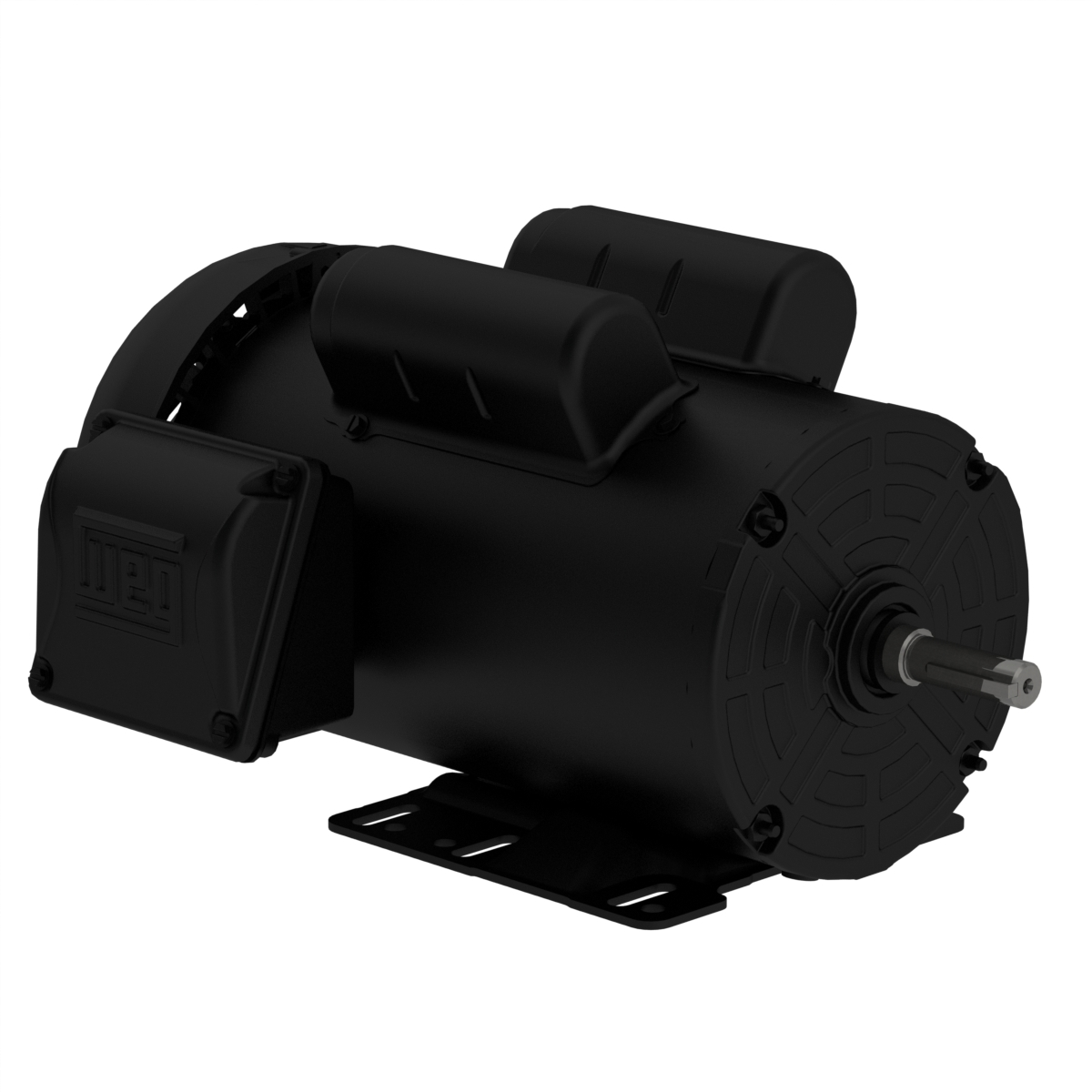

WEG 00236ES1B56-S 14799190 Electric Motor, 2Hp, 60Hz, 3600 Rpm
Get it by Thursday, Dec 18
€669.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 250% |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Steel |
| Design | L |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 97% |
| Efficiency At 50 % | 94% |
| Efficiency At 75 % | 97% |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 56H |
| Frame Material | Rolled Steel |
| Frame Size | 56H |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Hp | 2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 136/75-68.1A |
| Locked Rotor Torque | 220% |
| Lrc | 7.8X(Code J) |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.0707 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3495 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 5/2.16-2.5A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor At 1 % | 77 |
| Power Factor At 50 % | 70 |
| Power Factor At 75 % | 75 |
| Rated Current | 17.5/9.62-8.73A |
| Rated Torque | 3.01 lbs.-ft. |
| Rated Voltage | 115/208-230V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 2.92% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Phase | Hp | Frame | Duty Cycle | Frame Material | Synchronous Speed | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00218ES1RFD56H-S | 115/230V AC | 1 | 2 hp | 56H | S1 | Rolled Steel | 1800 RPM | 12.2/6.1A | €631.13 | |
 |
00156ES1B56-S | 115/208-230V AC | 1 | 1 1/2 hp | 56 | S1 | Rolled Steel | 3600 RPM | 4.6/1.98-2.3A | €515.42 | |
 |
00136ES1B56-S | 115/208-230V | 1 | - | 56 | Continuous | Rolled Steel | 3600 RPM | 5.5/2.37-2.75A | €448.60 | |
 |
01018ES1E215T-W22 | 208-230/460V | 1 | 10 hp | 213/5T | Continuous | Cast Iron | 1800 RPM | 9.66-11.2/5.6A | €1,836.76 | |
 |
00118ES1RFD56-S | 115/230V AC | 1 | 1 hp | 56 | S1 | Rolled Steel | 1800 RPM | 9.6/4.8A | €470.06 | |
 |
00118ES1B56-S | 115/208-230V AC | 1 | 1 hp | 56 | S1 | Rolled Steel | 1800 RPM | 9.6/4.14-4.8A | €533.13 | |
|
00156ES1BOL56-S | 115/208-230V AC | 1 | 1 1/2 hp | 56 | S1 | Rolled Steel | 3600 RPM | 4.6/1.98-2.3A | €552.39 |
