WEG .2536ES1BW56C-S Electric Motor, 0.25Hp, 60Hz, 3600 Rpm | BC2ARG

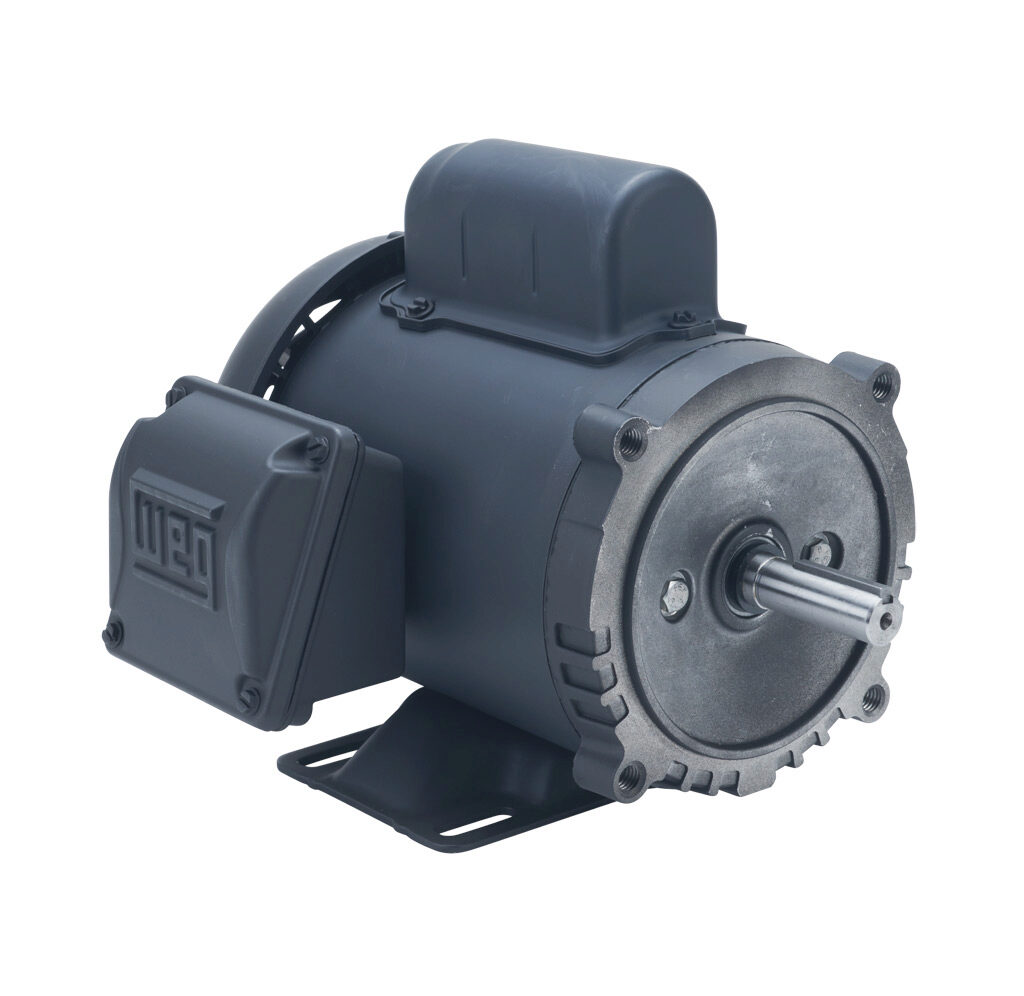

WEG .2536ES1BW56C-S 13685097 General Purpose Motor, TEAO/TEFC Rolled Steel W56C Frame, 0.25 HP, 3485 RPM, 115/208-230 V

Item: BC2ARGModel: .2536ES1BW56C-SCross Ref: 13685097

Check Availability

In Stock

3600 rpm

RPM

0.25 hp

56C

Frame

Get it by Tuesday, Aug 25

Request a Quote

Payment

Delivery

Product Specifications:

Item	Electric Motor
Altitude	1000 M.A.S.L. , 1000 MASL
Ambient Temp.	-20°C to +40°C
Amps	2.1-2.32/4.2A , 4.2/2.32-2.1A
Balancing Method	Not Balanced
Bearing Cap	Yes
Bolt Material	Carbon Steel
Break Down Torque	300%
Cold Locked Rotor Time	19 sec.
De Bearing Seal	V Ring
Degree Of Protection	IP55
Design	No
Drain	Rubber, Automatic
Drip Cover	Without
Duty Cycle	S1
Efficiency	50%
Efficiency 50%	35% , 60%
Efficiency 75%	44%
Efficiency @ 1 %	74%
Efficiency @ 100%	50%
Efficiency @ 75 %	68%
Efficiency Group	Standard Efficiency
Electrically Reversible	Yes
Enclosure	IC411
Enclosure Rating	IC411
Enclosure Type	Tefc
Fan Cover Material	Industrial Polymer , Polymer
Fan Material	Plastic
Flange	C
Flange Type	C
Frame	W56C
Frame Material	Rolled Steel
Frequency	60 Hz
Grade	Grade 1010/20
Grounding Lugs	Single
Grounding Lugs Type	Single
Hot Locked Rotor Time	11 sec.
Impregnation Method	Dip And Bake Polyester
Insulation Class	Class F
Integrated Brake	No
Ip Rating	IP55
L. R. Amps	13.8-15.3/27.7A , 27.7/15.3-13.8A
Locked Rotor Time (cold)	19 sec.
Locked Rotor Time(hot)	11 sec.
Locked Rotor Torque	290%
Lrc	6.6X(Code P)
Main Terminal Box Hole	0.881"
Main Terminal Box Hole Size	0.881"
Material	Carbon Steel
Moment Of Inertia	0.0147 lbs.-sq. ft.
Moment Of Inertia (j)	0.0147 lbs.-sq. ft.
Motor Application	General Purpose
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame	56C
Motor Speed	3485 RPM
Motor Type	Induction
Mounting	F-1 , Foot Mounted
Mounting Orientation	Horizontal, Vertical
Nameplate Speed	3485 RPM
Nde Bearing Seal	No
Nema Design	Design N
No Load Amps	1.38-1.6/3.2A , 3.2/1.38-1.6A
No. Of Phase	1
No. Of Poles	2
Noise Level	66 dBA
Output	1/4 hp
Output Rating	1/4 hp
Overload Protection	No
Overload Protector	Without Overload Protector
Overload Protector (phenolic)	Without Overload Protector
Painting	Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer
Phase	1
Power Factor 100%	0.74
Power Factor 50%	0.6
Power Factor 75%	0.68
Power Factor @ 1 %	50
Power Factor @ 50 %	35
Power Factor @ 75 %	44
Resilient Base	Without
Rotation	CW, CCW
Screw Cap	Carbon Steel
Series	S Series
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Material	Carbon Steel
Shaft Material Grade	Grade 1040/45
Shaft Type	Round With Square Key
Slip	3.19%
Speed	3400-3600 RPM , 3485 RPM
Starting Method	Direct On Line
Synchronous Speed	3600 RPM
Temp. Rise	80 K
Terminal Block	Without
Terminal Box	Left Position
Torque	0.377 lbs.-ft.
Tropicalized Painting	Without
Voltage	115/208-230V , 115/208-230V AC
Voltage Type	AC

Shipping Info:

Ship weight (kg)	8.15
Ship height (cm)	2.54
Ship length (cm)	27.2
Ship width (cm)	2.54
Country of Origin	BR
